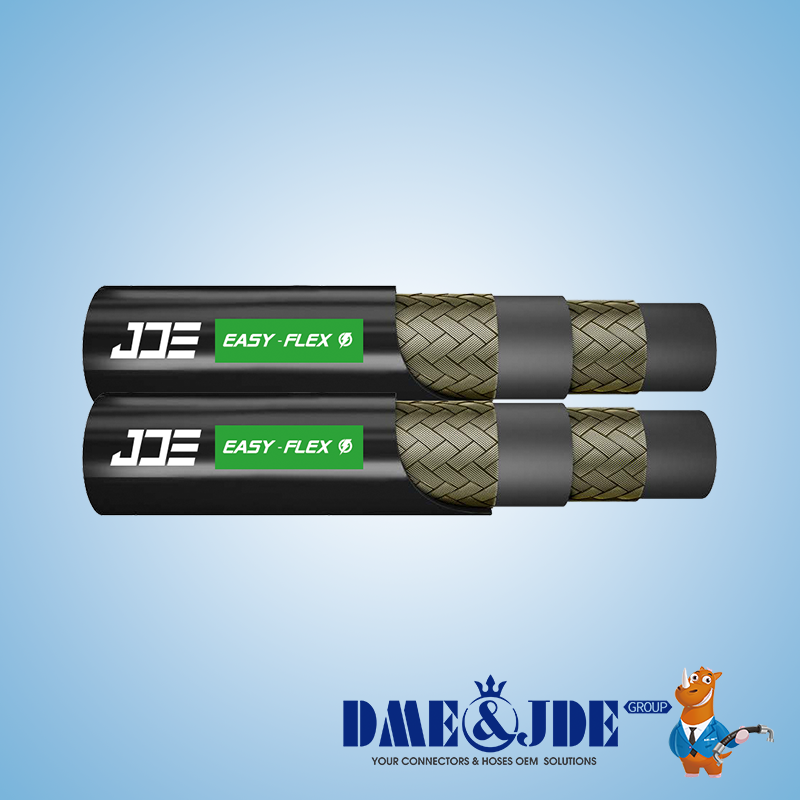

TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
TWIN HOSE (Smooth Cover) : 2SN / R2AT
Specifications
Model Number :
TWIN HOSE (Smooth Cover) : 2SN / R2AT
Applicable Specs :
■ DIN EN853 2SN ■ EXCEEDS SAE 100R2AT ■ ISO 1436:2009 ■ ISO 1307 ■ PN-EN ISO 8030 / PN-EN 13463 ■ PN-EN 1804-3+A1 / PN-EN ISO 4413 ■ ISO 6805 ■ EN 13463 ■ PN-G 32010
MOQ :
500M (MOQ)
Delivery Time :
30days
Covering :
Synthetic rubber, resistant to oils, ozone. Two hydraulic hoses are connected together through a special process, known as TWIN HOSE. It has excellent product synchronization performance, which can significantly improve installation efficiency and accu
Temperature :
-40 °C to +100 °C (intermittent 120 °C) -40 °C to +70 °C for water based fluids 0 °C to +70 °C hot air Prolonged operation at extreme temperatures will reduce hoses life
Payment Terms :
T/T
Working Pressure :
165–415 Bar / 2392.5–6017.5 PSI
Price :
US$ 1-50
Fittings :
Ferrule: No-skive Type DPF4T Insert: DPX4XX (X: Can choose) Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Internal hose :
Synthetic rubber, extruded whole without joints, of uniform thickness
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Impulse times :
≥ 200,000 Times
Brand Name :
DME&JDE
Product name :
TWIN HOSE (Smooth Cover) : 2SN / R2AT
Place of Origin :
Hengshui City, Hebei Province, China
Reinforcement :
2 layers of steel wire braid
Packaging Details :
Roll Pallet Reel
Media :
Mineral and biological oils, glicol-water based, water, lubricants
Description

TWIN HOSE (Smooth Cover) : 2SN / R2AT


Applicable Specs:

■ DIN EN853 2SN ■ EXCEEDS SAE 100R2AT ■ ISO 1436:2009 ■ ISO 1307

■ PN-EN ISO 8030 / PN-EN 13463 ■ PN-EN 1804-3+A1 / PN-EN ISO 4413 ■ ISO 6805

■ EN 13463 ■ PN-G 32010

TWIN HOSE (Smooth Cover) : 2SN / R2AT

Applications:

TWIN HOSE (Smooth Cover) : 2SN / R2AT



TWIN HOSE (Smooth Cover) : 2SN / R2AT

Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
TWIN 221102-05

-03

4.8

3/16''

4.6-5.4

9.0-10.0

14.1 MAX.

415

6017.5

1660

24070

90

0.340

50/100

DPF2T-03

TWIN 221102-06

-04

6.4

1/4''

6.2-7.0

10.6-11.6

15.7 MAX.

400

5800

1600

23200

100

0.372

50/100

DPF2T-04

TWIN 221102-08

-05

8.0

5/16''

7.7-8.5

12.1-13.3

17.3 MAX.

350

5075

1400

20300

115

0.430

50/100

DPF2T-05

TWIN 221102-10

-06

9.5

3/8''

9.3-10.1

14.5-15.7

19.7 MAX.

330

4785

1320

19140

130

0.560

50/100

DPF2T-06

TWIN 221102-12

-08

12.7

1/2''

12.3-13.5

17.5-19.1

23.0 MAX.

275

3987.5

1100

15950

180

0.640

50/100

DPF2T-08

TWIN 221102-16

-10

16.0

5/8''

15.5-16.7

20.6-22.2

20.6-22.2

250

3625

1000

14500

200

0.732

50/100

DPF2T-10

TWIN 221102-19

-12

19.0

3/4''

18.6-19.8

24.6-26.2

30.1 MAX.

215

3117.5

860

12470

240

0.930

50/100

DPF2T-12

TWIN 221102-25

-16

25.4

1''

25.0-26.4

32.5-34.1

38.9 MAX.

165

2392.5

660

9570

300

1.360

50/100

DPF2T-16

Marking / Layline (Printing, Ink)


TWIN HOSE (Smooth Cover) : 2SN / R2ATTWIN HOSE (Smooth Cover) : 2SN / R2AT

Quality Control

TWIN HOSE (Smooth Cover) : 2SN / R2AT

Certificate


TWIN HOSE (Smooth Cover) : 2SN / R2AT


Related Product

TWIN HOSE (Smooth Cover) : 2SN / R2AT


FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.


2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.


3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.


4. Q: What is your terms of price?

A: EXW, FOB, CFR, CIF, DDU.


5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.


6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.


7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
