BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
BS EN 857 2SC Wire Braided Hydraulic Hose
Specifications
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Product name :
BS EN 857 2SC
Brand Name :
DME&JDE
Impulse times :
≥ 200,000 Times
Model Number :
BS EN 857 2SC
Working Pressure :
165–400 Bar / 2393–5800 PSI
Payment Terms :
T/T
Applicable Specs :
DIN EN 857 2SC ISO 11237-1 2SC EN 1804-3 ISO 1307 ISO 6805
Covering :
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Price :
US$ 1-50
Internal hose :
Synthetic rubber, extruded whole without joints, of uniform thickness

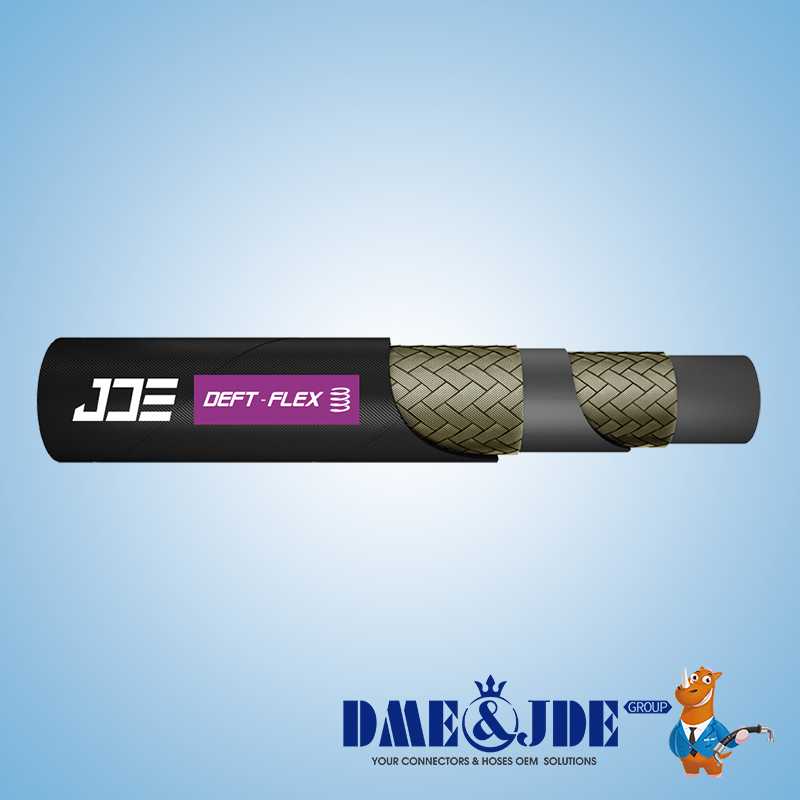

Reinforcement :
2 layers of steel wire braid
MOQ :
500M (MOQ)
Delivery Time :
30days
Fittings :
Ferrule: No-skive Type DPF4T Insert: DPX4XX (X: Can choose) Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Temperature :
-40 °C to +100 °C (intermittent 120 °C) -40 °C to +70 °C for water based fluids 0 °C to +70 °C hot air Prolonged operation at extreme temperatures will reduce hoses life
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
Media :
Mineral and biological oils, glicol-water based, water, lubricants
Packaging Details :
Roll Pallet Reel
Description

BS EN 857 2SC Wire Braided Hydraulic Hose


Applicable Specs:

DIN EN 857 2SC
ISO 11237-1 2SC
EN 1804-3
ISO 1307
ISO 6805

BS EN 857 2SC Wire Braided Hydraulic Hose

Applications:

BS EN 857 2SC Wire Braided Hydraulic Hose

BS EN 857 2SC Wire Braided Hydraulic Hose


Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
DEF 211122-06 -04 6.4 1/4'' 6.1-6.9 10.6-11.7 14.2 MAX. 400 5800 1600 23200 75 0.290 50/100 DPF2T-04
DEF 211122-08 -05 8.0 5/16'' 7.7-8.5 12.1-13.3 16.0 MAX. 350 5075 1400 20300 85 0.330 50/100 DPF2T-05
DEF 211122-10 -06 9.5 3/8'' 9.3-10.1 14.4-15.6 18.3 MAX. 330 4785 1320 19140 90 0.420 50/100 DPF2T-06
DEF 211122-12 -08 12.7 1/2'' 12.3-13.5 17.5-19.1 21.5 MAX. 275 3987.5 1100 15950 130 0.550 50/100 DPF2T-08
DEF 211122-16 -10 16.0 5/8'' 15.5-16.7 20.5-22.3 24.7 MAX. 250 3625 1000 14500 150 0.650 50/100 DPF2T-10
DEF 211122-19 -12 19.0 3/4'' 18.6-19.8 24.6-26.4 28.6 MAX. 215 3117.5 860 12470 180 0.790 50/100 DPF2T-12
DEF 211122-25 -16 25.4 1'' 25.0-26.4 32.5-34.3 36.6 MAX. 165 2392.5 660 9570 230 1.180 50/100 DPF2T-16

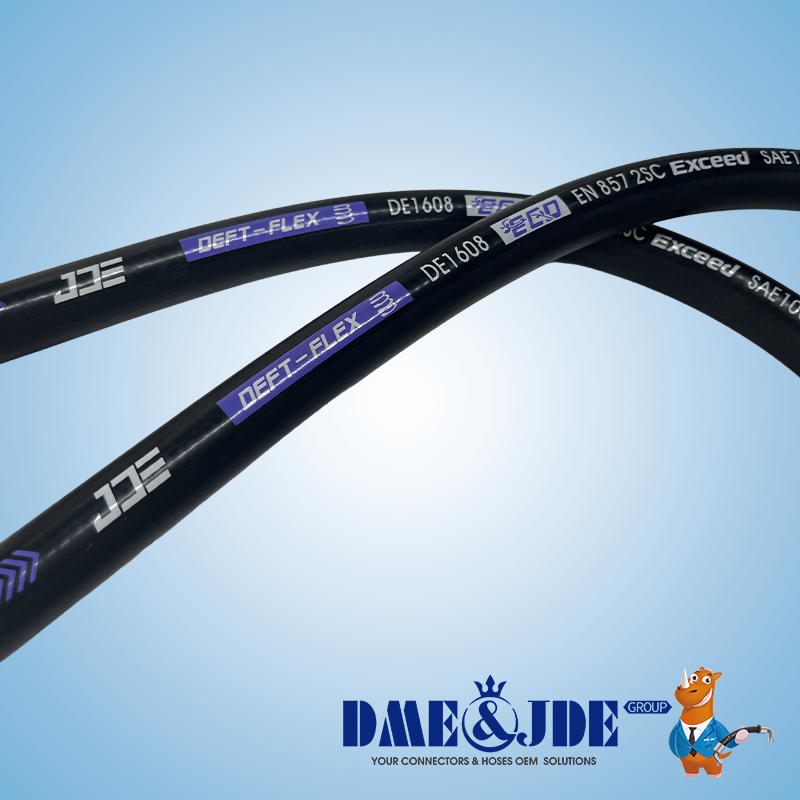

Marking / Layline (Printing, Ink)

BS EN 857 2SC Wire Braided Hydraulic Hose

BS EN 857 2SC Wire Braided Hydraulic Hose

Quality Control

BS EN 857 2SC Wire Braided Hydraulic Hose

Certificate


BS EN 857 2SC Wire Braided Hydraulic Hose


Related Product

BS EN 857 2SC Wire Braided Hydraulic Hose


FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.


2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.


3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.


4. Q: What is your terms of price?

A: EXW, FOB, CFR, CIF, DDU.


5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.


6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.


7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
