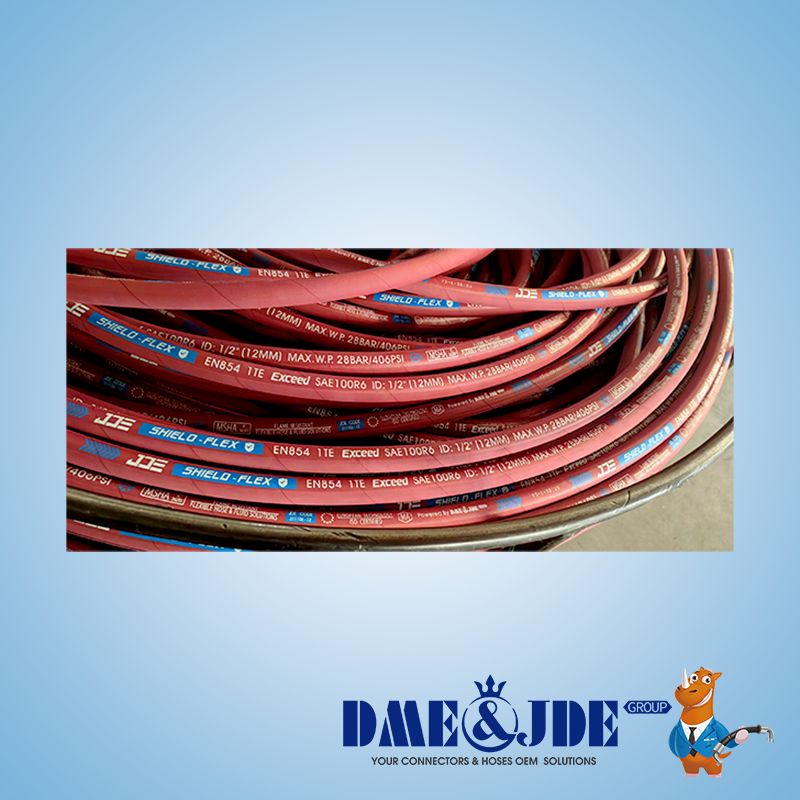

BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
BS EN 854 1TE Textile Braided Hydraulic Hose
Specifications
Model Number :
BS EN 854 1TE
Applicable Specs :
DIN EN 854 1TE SAE 100R6 DIN 20021 1TE TS 6388 EN 854 TIP 1TE ISO 4079-1TE ISO 1307
MOQ :
500M (MOQ)
Delivery Time :
30days
Covering :
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Payment Terms :
T/T
Working Pressure :
12–35 Bar / 174–507PSI
Price :
US$ 1-50
Fittings :
Ferrule: No-skive Type PUSH-ON-R6/1TE Insert: PUSH-ON-R6/1TE (X: Can choose) Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Internal hose :
Synthetic rubber, extruded whole without joints, of uniform thickness
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Temperature :
-40 °C to +100 °C (intermittent 120 °C) -40 °C to +70 °C for water based fluids 0 °C to +70 °C hot air Prolonged operation at extreme temperatures will reduce hoses life
Brand Name :
DME&JDE
Product name :
BS EN 854 1TE
Place of Origin :
Hengshui City, Hebei Province, China
Reinforcement :
1 layer of textile braid
Packaging Details :
Roll Pallet Reel
Description

BS EN 854 1TE Textile Braided Hydraulic Hose


Applicable Specs:

■ ISO 18752 1AC/2AC/4CC

BS EN 854 1TE Textile Braided Hydraulic Hose

Applications:

BS EN 854 1TE Textile Braided Hydraulic Hose

BS EN 854 1TE Textile Braided Hydraulic Hose


Hydraulic Hose specification

Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DMECode
JDE 211106-05 -03 4.8 3/16'' 4.4-5.2 / 10.0-11.6 35 507.5 140 2030 50 0.100 50/100 PUSH-ON-R6/1TE-03
JDE 211106-06 -04 6.4 1/4'' 5.9-6.9 / 11.6-13.5 28 406 112 1624 65 0.110 50/100 PUSH-ON-R6/1TE-04
JDE 211106-08 -05 8.0 5/16'' 7.4-8.4 / 13.1-15.1 28 406 112 1624 75 0.130 50/100 PUSH-ON-R6/1TE-05
JDE 211106-10 -06 9.5 3/8'' 9.0-10.0 / 14.7-16.7 28 406 112 1624 75 0.160 50/100 PUSH-ON-R6/1TE-06
JDE 211106-12 -08 12.7 1/2'' 12.1-13.3 / 17.7-20.6 28 406 112 1624 100 0.220 50/100 PUSH-ON-R6/1TE-08
JDE 211106-16 -10 16.0 5/8'' 15.3-16.5 / 21.9-23.9 24 348 96 1392 125 0.270 50/100 PUSH-ON-R6/1TE-10
JDE 211106-19 -12 19.0 3/4'' 18.2-19.8 / 25.4-27.8 21 304.5 84 1218 150 0.330 50/100 PUSH-ON-R6/1TE-12
JDE 211106-25 -16 25.4 1'' 24.6-26.2 / 32.8-35.9 12.0 174 48 696 155.0 0.5 50/100 PUSH-ON-R6/1TE-16
JDE 211112-32 -20 31.8 1-1/4'' 31.4-33.0 43.3-45.7 49.2-52.4 125 1812.5 500 7250 420 1.850 20/40 DPF2T-20
JDE 211112-38 -24 38.1 1-1/2'' 37.7-39.3 49.6-52.0 55.6-58.8 90 1305 360 5220 500 2.300 20/40 DPF2T-24
JDE 211112-51 -32 50.8 2" 50.4-52.0 62.3-64.7 68.2-71.4 80 1160 320 4640 630 2.650 20/40 DPF2T-32

Marking / Layline (Printing, Ink)

BS EN 854 1TE Textile Braided Hydraulic Hose

BS EN 854 1TE Textile Braided Hydraulic Hose

Quality Control

BS EN 854 1TE Textile Braided Hydraulic Hose

Certificate


BS EN 854 1TE Textile Braided Hydraulic Hose


Related Product

BS EN 854 1TE Textile Braided Hydraulic Hose


FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.


2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.


3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.


4. Q: What is your terms of price?

A: EXW, FOB, CFR, CIF, DDU.


5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.


6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.


7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
