30kw Stainless Steel Tee Forming Machine High Efficiency Plc Controller Automation
30kw Stainless Steel Tee Forming Machine High Efficiency Plc Controller Automation
Specifications
Certification :
ios 9001
Motor :
20kW
Supply Ability :
500set
Overall Size :
1350x900x3100mm
Delivery Time :
25-30 days
Price :
discussible
Packaging Details :
wooden box
Model :
vertical
Payment Terms :
L/C,T/T
Reflector Color :
red,yellow,white
Place of Origin :
china
Photoelectric Switch :
2pcs
MOQ :
1set
Sheel :
ABS+PC
Brand Name :
junxi
Count Wheel :
1pc
Description
30kw Stainless Steel Tee Forming Machine High Efficiency Plc Controller Automation

Cold forming tee machine has been widely used in the seamless carbon steel tee production line and now the technology of the cold forming tee machine has been innovated every year. Now the cold forming tee machine can divide into two type: one is automatic cold forming tee machine which use the full PLC to control the all machine action, pressure, electric, speed and etc. Operator only need to push the one time button then the tee is formed. Another type is manual type cold forming tee machine which need to adjust the machine action by pushing the button and also adjust the valve to control the pressure.

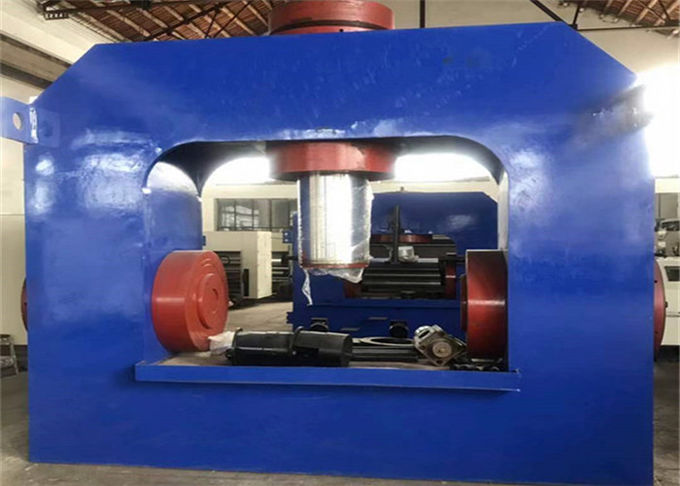

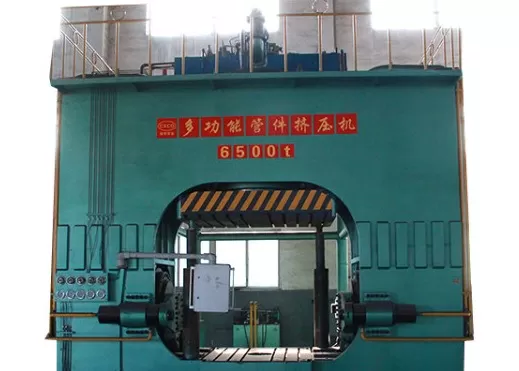

Machine Photo:

30kw Stainless Steel Tee Forming Machine High Efficiency Plc Controller Automation

YSLT Series Tee Cold Forming Machine

YSLT Series Tee Cold Forming Machine is designed for manufacturing both straight tees and reducing tees with diameter from 1/2" to 28" of stainless steel, carbon steel, alloy steel and some kinds of copper steel. Complying with standards of ASME B16.9, ASMB16.11, GB12459, JIS, DIN and GOST, the products are wildly used in industries of sanitary, oil and gas delivery pipeline and nuclear or power plant construction etc.

Product Features
  • Producing: Equal Tee & Reducing Tee
  • Raw Material: Carbon Steel, Stainless Steel, Alloy Steel
  • Applicable Standards: ASME B16.9, ASME B16.11, GB12459, JIS, DIN, GOST
Technical Parameters
Parameter
Model		 Processing Size
(Inch)		 Clamping Force
(KN)		 Pushing Force
(KN)		 Working Pressure
(Mpa)		 Power
(KW)		 Table Size
(mm)		 Weight
(T)
YSLT80A 1/2"-3" 4500 4000×2 25 55 660*660 22
YSLT100A 1/2"-4" 5500 4900×2 25 62 700*700 25
YSLT150B 2"-6" 8000 7000×2 25 90 1000*1000 56
YSLT200A 2"-8" 12500 11000×2 25 110 1100*1100 68
YSLT250B 4"-10" 15000 14000×2 25 135 1350*1350 150
YSLT300B 5"-12" 22000 18000×2 25 276 1800*1800 270
YSLT400A 6"-16" 26000 25000×2 25 295 1800*1800 320
YSLT500B 8"-20" 35000 30000×2 25 350 1800*1800 360
YSLT600A 10"-24" 45000 40000×2 25 400 2000*2000 420
YSLT700A 12"-28" 60000 55000×2 25 580 2200*2500 480
