219mm Cold Forming Sch 80 Tee Making Machine New Condition
219mm Cold Forming Sch 80 Tee Making Machine New Condition
Specifications
Certification :
ios 9001
Automationlevel :
Semi-automatic / Fully automatic options
Supply Ability :
500set
Electric Engine :
Y-30kw
Motorpower :
7.5 kW
Delivery Time :
25-30 days
Clamping Force :
4500 - 60000KN
Maxmaterialwidth :
1000 mm
Price :
discussible
Packaging Details :
wooden box
Machinetype :
Sheet Metal Forming Machine
Operation Mode :
Automatic
Payment Terms :
L/C,T/T
Weight :
22-480T
Core Components :
Motor, Pump
Motor Power :
55 - 580KW
Machinery Test Report :
Provided
Brand Name :
junxi
Origin :
China
Place of Origin :
china
Function :
unequal tee
MOQ :
1set
Condition :
New
Description

219mm Cold Forming Sch 80 Tee Making Machine

Tee forming machine

Cold forming tee machine has been widely used in the seamless carbon steel tee production line and now the technology of the cold forming tee machine has been innovated every year . Now the cold forming tee machine can divide into two type :one is automatic cold forming tee machine which use the full PLC to control the all machine action , pressure , electric, speed and etc . Operator only need to push the one time button then the tee is formed . Another type is manual type cold forming tee machine which need to adjust the machine action by pushing the button and also adjust the valve to control the pressure.

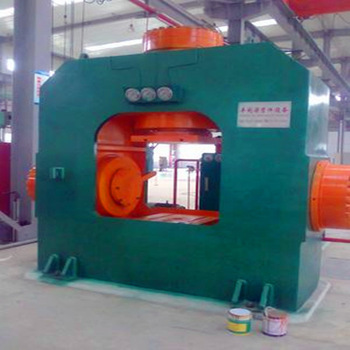

machine photo:

219mm Cold Forming Sch 80 Tee Making Machine New Condition

Size range:OD73-219 Thickness:max15mm

  • Main Cylinder:ID:650mm,OD:800mm, Piston:400mm,:effective distance:500mm,Press:31.5Mpa=1044.7tons one set
  • Side cylinder:ID:600,OD:700mm, Piston:750mm,:effective distance 300mm,pressing:31.5Pa=890.19tons two sets
  • hydraulic pump:oil pump 63SCY-14-1B 2 sets

CB-50 2sets

4..Assistant oil pump: Y-30 Two set

Y-2.2one set

5. Thinkness of the steel plate:60mm

6.Tee Max OD:Ф219mm*SCH40

7.Delivery time:40-50days

8.This machine need 2-3 people to operate.

Weight:around 30-32tons
