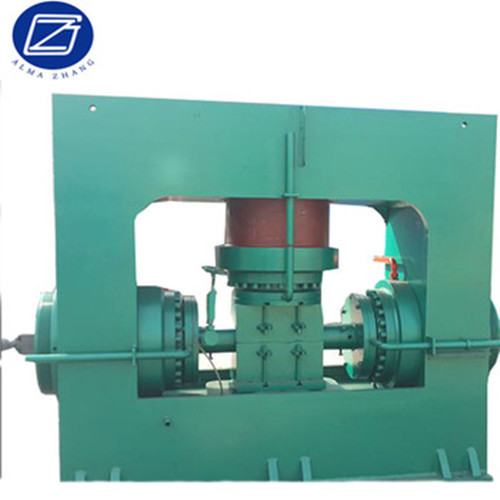

Up To 24 Hydraulic Tee Forming Machine New For Stainless Steel
Up To 24 Hydraulic Tee Forming Machine New For Stainless Steel
Specifications
Coolingsystem :
Water Cooling
Payment Terms :
L/C,T/T
Supply Ability :
500set
Machinedimensions :
4000 mm x 1500 mm x 1800 mm
Type :
seamless and erw
Machinery Test Report :
Provided
Size Range :
OD17-325
Certification :
ios 9001
Place of Origin :
china
MOQ :
1set
Machineweight :
3500 kg
Condition :
new
Dimension :
2700mm*800mm*2700mm
Key Drivers :
Hydraulic
Price :
discussible
Delivery Time :
25-30 days
Packaging Details :
wooden box
Working Pressure :
25Mpa
Molds Material :
H13, ASTM4140/4340
Material :
Stainless Steel
Technology :
extrucding forming
Brand Name :
junxi
Description
up to 24" hydraulic tee cold forming machine for stainless steel, carbon steel, alloy steel
Product Overview & Features

It is constructed with strong metal frame with excellent apearence and steady performance.

It has specific power building and construction and electrical system, embraces PLC button centre control, use touch screen, use proportional valve to control pressure and pressure is enhanced in curve, which can be easily adjusted and operated both by hand and automatically.

The demoulding and depoling gadgets are good functions of our forming machine that make the mould change easy.

Accessories
  • Mould
  • Caliberation machine
  • Bevel machine

LIMING comapny supply hydraulic tee forming machine to meed numerous need of tee, reduing tee, equivalent tee.Made in China, tee forming machine is of good price and outstanding quality.Welcom to vist LIMING comapny in Canghzou, China.

Our Shean can supply hydraulic tee forming machine to meed numerous demand of tee, reduing tee, equivalent tee.Made in China, tee forming machine is of excellent rate and exceptional quality.

Key Features

Pipe tee making machine cold forming hydraulic carbon steel stainless steel Key Features:

  1. CE Certificate Approval,.
  2. High strength steel metal via gas shielded welding framed machine,.
  3. Manufacturing smooth Equal or Lowering Tshirtses dimension varying from 1/2″ to 16″ with density up to Sch80s, materials can be stainless-steel, carbon steel, alloy steel, high alloy, aluminum, etc. With production common according to ANSI, ASTM, SMS, DIN, 3A, SMS or customised is more effective,.
  4. Tees will be formed in one bulging or hydro-forming process without any calibration,.
  5. Energy conserving, high working effectiveness, much less labor cost.

Up To 24

Technical Specifications
Main Cylinder:ID:650mm,OD:800mm, Piston:400mm,:effective distance:500mm,Press:31.5Mpa=1044.7tons one set
Side cylinder:ID:600,OD:700mm, Piston:750mm,:effective distance 300mm,pressing:31.5Pa=890.19tons two sets
Hydraulic pump:oil pump 63SCY-14-1B 2 sets
Model:CB-50 2sets
Assistant oil pump:Y-30 Two set
Model:Y-2.2one set
Thickness of the steel plate:60mm
Tee Max OD:Ф219mm*SCH40
