Cold Forming Tee Machine Hydraulic Press 30kw Gil325 10-24mm/S
Cold Forming Tee Machine Hydraulic Press 30kw Gil325 10-24mm/S
Specifications
Payment Terms :
L/C,T/T
Hydraulic Pump :
3SCY-14-1B
Dimension :
2700mm*800mm*2700mm
Type :
straight tee or reducing tee
Machinery Test Report :
Provided
Maximummaterialwidth :
200 mm
Packaging Details :
wooden box
Weight :
20 - 480T
Thickness :
Ф219mm*SCH40
MOQ :
1set
Productname :
Tee Forming Machine
Supply Ability :
500set
Certification :
ios 9001
Tee Range :
OD73-219
Delivery Time :
25-30 days
Working Speed :
10-24mm/s
Brand Name :
junxi
Origin :
China
Price :
discussible
Operation Mode :
Automatic
Description

Gil325 Cold Forming Tee Machine Hydraulic Press 30kw Tee Forming Machine

Tee forming machine

Cold forming tee machine has been widely used in the seamless carbon steel tee production line and now the technology of the cold forming tee machine has been innovated every year . Now the cold forming tee machine can divide into two type :one is automatic cold forming tee machine which use the full PLC to control the all machine action , pressure , electric, speed and etc . Operator only need to push the one time button then the tee is formed . Another type is manual type cold forming tee machine which need to adjust the machine action by pushing the button and also adjust the valve to control the pressure.

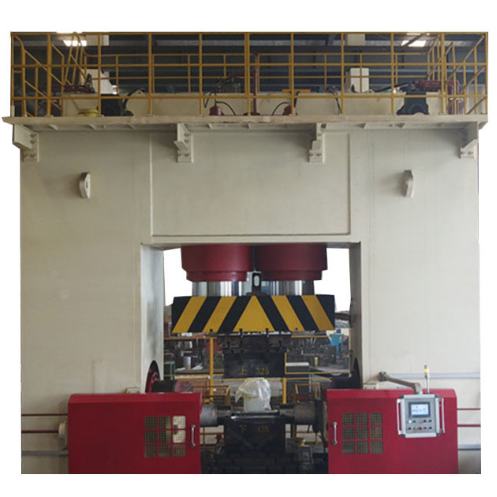

machine photo:

Cold Forming Tee Machine Hydraulic Press 30kw Gil325 10-24mm/S

Technical details for MACHINE

Mode NO: GIL325

Size range: OD140-325 Thickness:max15mm

Details of the machine:

Ram Cylinder:

Cylinder OD Ram Piston Valid Travel Qty
Φ1000mm Φ600mm Φ800mm 600mm 1
Φ1000mm Φ320mm Φ800mm 400mm 2
Φ219mm Φ800mm Φ180mm 300mm 1

Other Parts:

3grade oil pumper 63SCY-14-1B QTY 2pc
CB-25 QTY 1pc
Electric Engine Y-30kw QTY 2pc
Y-4kw QTY 1pc
Water system 1set3m³ power 4kw

Contact:

Tina

Email address: admin@pipefittingsmachine.com

Whatsapp/ Wechat: 008618632745010
