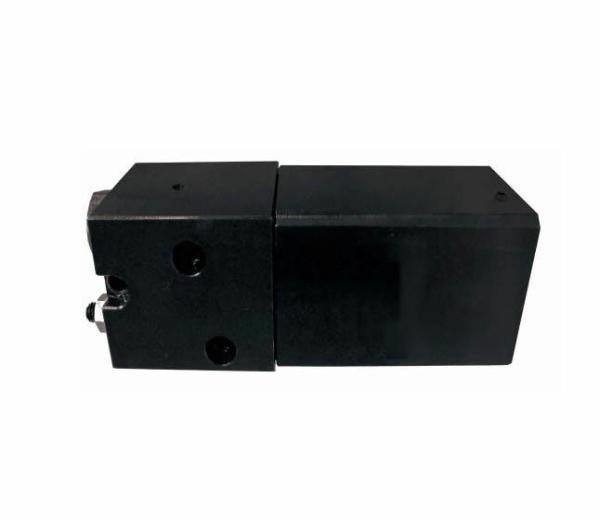

Combined Hydraulic Variable Flow Control Valve SVAT1 Time Sequence Compact Size
Combined Hydraulic Variable Flow Control Valve SVAT1 Time Sequence Compact Size
Combined Hydraulic Variable Flow Control Valve SVAT1 Time Sequence Compact Size
Combined Hydraulic Variable Flow Control Valve SVAT1 Time Sequence Compact Size
Specifications
Brand Name :
Jiayan
Model Number :
SVAT1
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Bore of cylinder :
φ20
Starting Pressure :
2MPa
Max.Operation Pressure :
7MPa
Time range :
1 s to 10 s
Warranty :
1 year (change new one for free)
Description

SVAT1 Time Sequence Valve Time Valve and Flow Control Valve Combined Valve Compact Size Used in Harsh Environment

Features:

1.Based on the characteristics of time valve and flow valve, the installation quantity of time sequence valve and the installation space are reduced, so the valve is more suitable for complex environments;

2.The cylinder diameter is φ20, the starting pressure is 2 MPa and the maximum working pressure is 7 MPa;
3.Time range: 1S-10S. The time range will vary depending on the size , stroke and pressure of the hydraulic cylinder ,which the valve work with.

Note:

1.Loosen the sealing nut, adjust the time sequence valve to the required time, the right-tured adjustment rod becomes longer, and the left-tured adjustment rod becomes shorter
2.After adjusting the time, lock the sealing nut.
3.Please adjust the time valve when returning oil.

Combined Hydraulic Variable Flow Control Valve SVAT1 Time Sequence Compact Size
