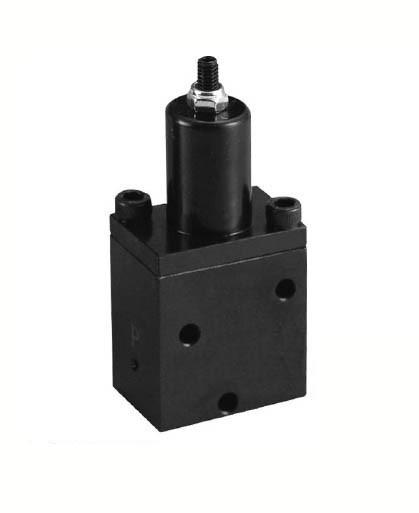

Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve
Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve
Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve
Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve
Specifications
Brand Name :
Jiayan
Model Number :
RV
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
400 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon steel
Max. operating pressure :
250 kgf/cm2
Min. operating pressure :
25 kgf/cm2
Type :
Manifold type or Line type
Warranty :
1 year (change new one for free)
Surface :
oxidizing blackening
Description

Hydraulic Sequence Valve Carbon Steel Surface Black Oxide Finish Small Size High Pressure Withstanding

Features:

1.This type of hydraulic sequence valve is especially suitable for the clamp circuit.

2.The pressure determines the sequence of the hydraulic cylinder.

3.It has small size and withstand high pressure .It is installed in the circuit to obtain sequential action without any other control.

4.This product is provided with type A: Manifold and Type B: Line type, which can be appropriately selected according to the overall design and installation method of the fixture.

5.Max. operating pressure: 250 kgf/cm2

Min. operating pressure: 25 kgf/cm2

Note:

1.When multiple sequence valves are used in parallel in the circuit, the pressure difference between them should not be less than 10 kgf/cm2.

2.The working pressure and set pressure difference must be 10kgf/cm2 or more.

3.Please select the appropriate actuating spring according to the operation pressure

Small Hydraulic Control Valve Carbon Steel Surface Black Oxide Finishing Sequence Valve

The hydraulic cylinder 1pushes workpiece to A.

The pressure reaches to the setting value 40kg/cm2 on SV.
The hydraulic cylinders 2 and 3 push workpiece to B and C to
provide sequential clamping motion
