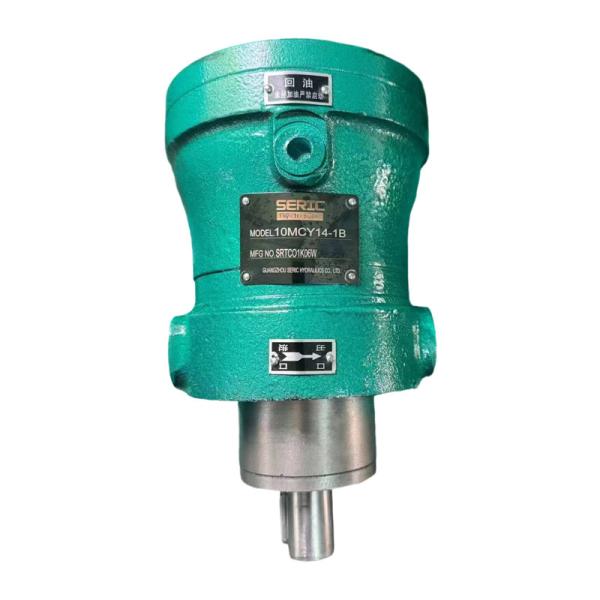

High Pressure Axial Plunger Pump Fixed Displacement Piston Pump CY Series 10MCY14-1B
High Pressure Axial Plunger Pump Fixed Displacement Piston Pump CY Series 10MCY14-1B
Specifications
Brand Name :
Seric
Model Number :
CY Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Axial Piston Pumps High Pressure Fixed Displacement Plunger Pump CY Series 10MCY14-1B

Features

Structure

The CY series are axial piston pumps, distributing oil via a valve plate with a rotating cylinder block.

Advantages

Featuring hydrostatic balance structures, they're simple, compact, efficient, long-lasting, lightweight, and have strong self-priming.

Applications

Suitable for machine tools, forging, metallurgy, engineering, mining, and other hydraulic systems.

Versatility

Can be used as hydraulic motors by changing the motor oil distribution plate.

Model Number Designation

C Y 14 1 B
Nominal displacements 1.25, 2.5, 5, 10, 16, 25, 32, 40, 63, 80, 100, 160, 250, 400ml/r M: Fixed displacement

S: Manual variable displacement

Y: Pressure compensating variable displacement

MY: Fixed rated variable displacement

B: Electro-hydraulic proportional variable displacement

P: Constant-pressure variable displacement

C: Engine (servo) variable displacement

D: Electric variable displacement		 Pressure grade C represents 31.5MPa Y: Pump

M: Motor		 Cylinder-rotating axial piston pump (motor) Structure code type 1 Technical improvement code: B

G: 160, 250CY speed-up type at 1500r/min		 Rotation direction (viewed from shaft end):

No mark: Forward rotation pump (clockwise)

F: Reverse rotation pump (counterclockwise)

Example: 160YCY14-1G

Representation: A pressure compensating, variable displacement, cylinder rotating, high speed axial piston pump with a displacement of 160 ml/rev and a rated pressure of 31.5MPa. (i.e., the nominal flow rate is 160L/min at 1000r/min)

Specifications

Recommended Pipe or Pipe Fitting Port Diameter Sizes (Not Interchangeable)

Model Inlet (Inner Diameter) Outlet (Inner Diameter) Drain Port (Inner Diameter)
1.5CY14-1B ≥ Φ13 ≥ Φ10 ≥ Φ8
2.5CY14-1B ≥ Φ13 ≥ Φ10 ≥ Φ8
5CY14-1B ≥ Φ13 ≥ Φ13 ≥ Φ8
10CY14-1B ≥ Φ16 ≥ Φ13 ≥ Φ10
16CY14-1B ≥ Φ16 ≥ Φ13 ≥ Φ10
25CY14-1B ≥ Φ24 ≥ Φ24 ≥ Φ10
32CY14-1B ≥ Φ32 ≥ Φ32 ≥ Φ15
40CY14-1B ≥ Φ32 ≥ Φ32 ≥ Φ15
63CY14-1B ≥ Φ32 ≥ Φ32 ≥ Φ15
80CY14-1B ≥ Φ38 ≥ Φ34 ≥ Φ15
100CY14-1B ≥ Φ38 ≥ Φ34 ≥ Φ18
160CY14-1B ≥ Φ55 ≥ Φ42 ≥ Φ18
250CY14-1B ≥ Φ64 ≥ Φ50 ≥ Φ20
400CY14-1B ≥ Φ66 ≥ Φ55 ≥ Φ20

Note: The inner diameter of the drain port should not be limited by the size of the threaded fitting and should meet the requirements of this table as much as possible.
