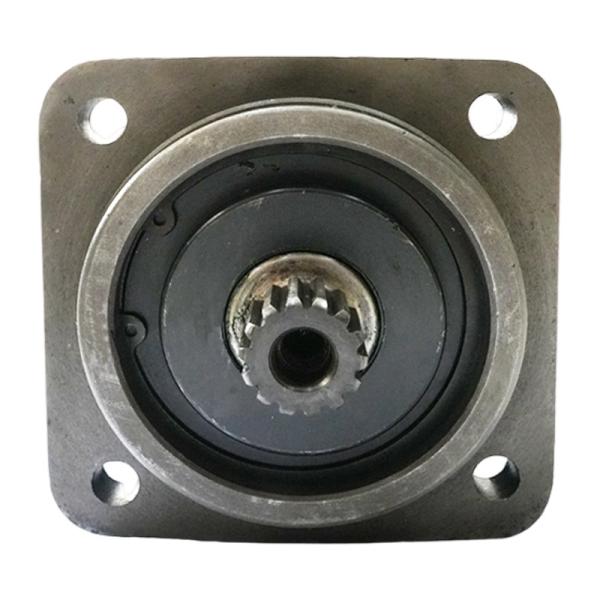

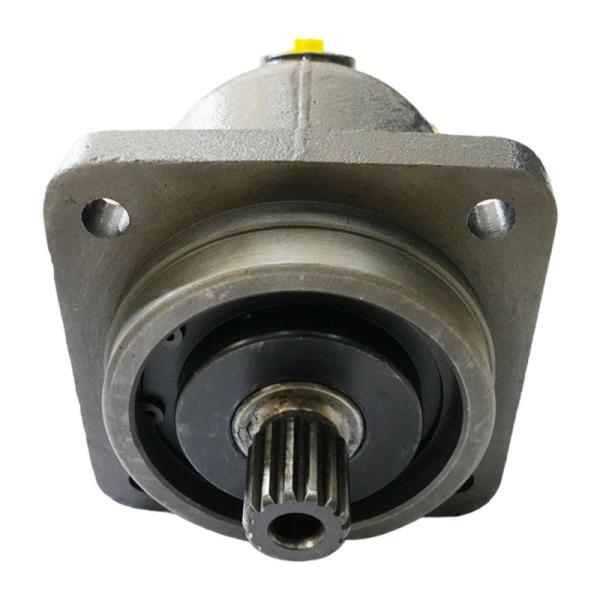

Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Specifications
Brand Name :
Seric
Model Number :
A2F Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Piston Pump Axial Piston Fixed Motor A2F Series

Features

This product has a fixed displacement, applicable as a pump or motor for hydrostatic transmission in both open and closed systems.

- As a Pump: Flow rate is directly proportional to rotational speed and displacement.

- As a Motor: Output rotational speed is directly related to input and inversely related to displacement. Output torque grows with the increase of pressure difference between high and low pressure sides.

Structural & Performance Advantages

- Load - bearing Capacity: The drive shaft can bear radial loads.

- Efficient Oil Distribution: The cylinder block and valve plate use spherical oil distribution, enabling automatic alignment during rotation, with low circumferential speed and high efficiency.

- Low Noise: Operates with low noise levels.

Application

It has an inclined shaft structure, suitable for hydrostatic transmission in open or closed systems.

Model Number Designation

A2F 55 R 2 P 1
Type Size Displacement (Vgmin~Vgmax) Direction of Rotation Series Shaft End Rear cover
Fixed Displacement Pump/Motor 10 9.4ml/r (Viewed on drive shaft )

R: Clock wise

L: Anti-clock wise

W: Alternating
(not for pumps in open circuit)		 Size 10-160: 1, 2, 3, 4

Size 200-500: 5
P: keyed shaft GB1096-79

Z: splines shaft DIN 5480

S: splines shaft GB 3478.1-83		 Port Plate: 1
Port Plate: 2
Port Plate: 3
Port Plate: 4
Port Plate: 5
Port Plate: 6
Port Plate: 7
12 11.6ml/r
23 22.7ml/r
28 28.1ml/r
45 44.3ml/r
55 54.8ml/r
63 63.0ml/r
80 80.0ml/r
107 107ml/r
125 125ml/r
160 160ml/r
200 200ml/r
225 225ml/r
250 250ml/r
355 355ml/r
500 500ml/r
