Specifications
Brand Name :
Seric
Model Number :
AR16 Series
Place of Origin :
Guangzhou
MOQ :
1 Piece
Price :
USD110.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Certification :
CE, ISO
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

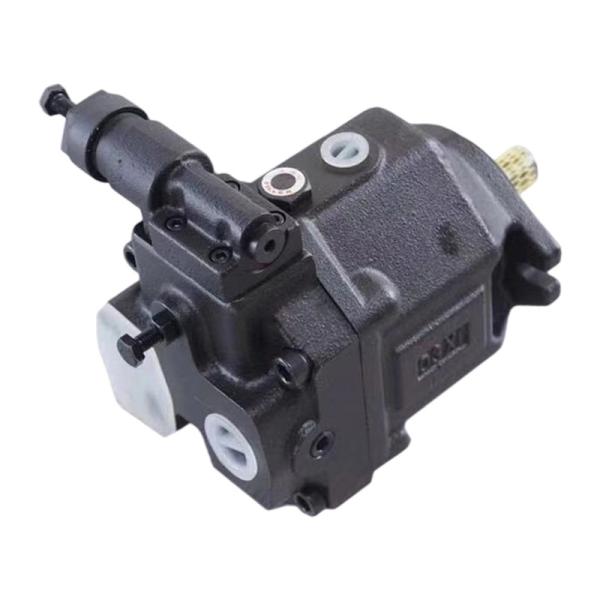

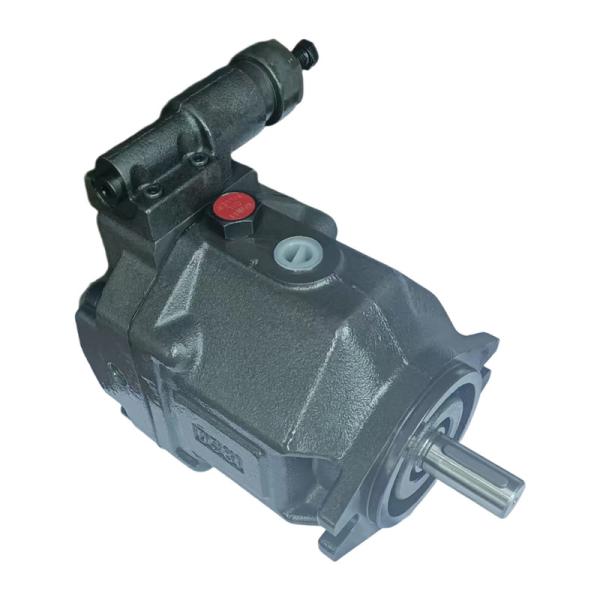

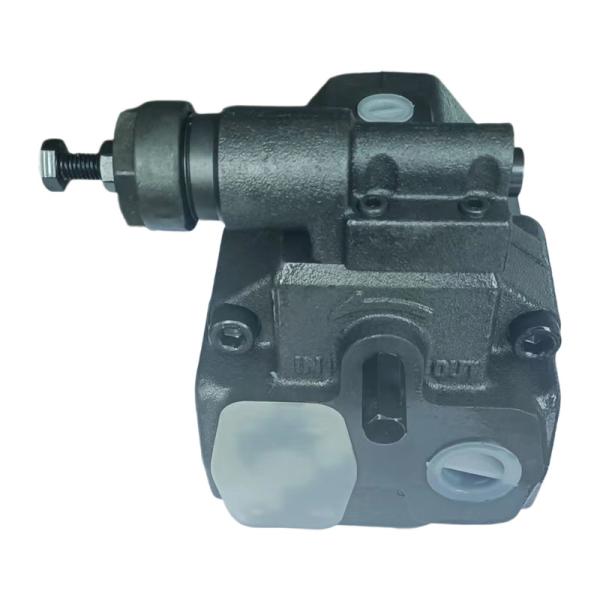

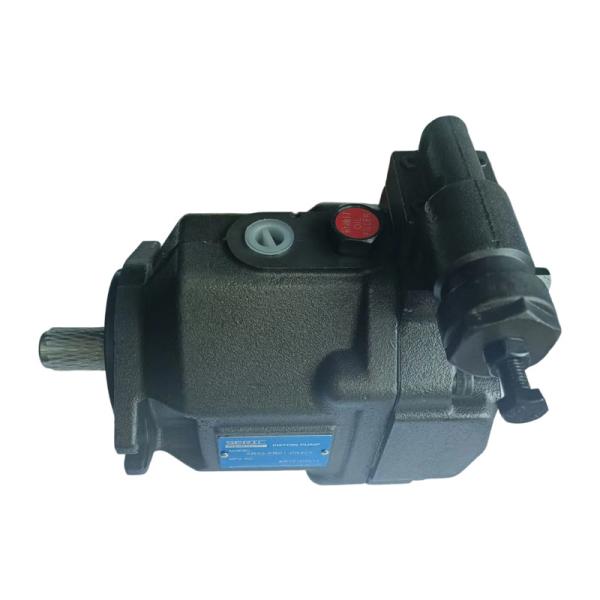

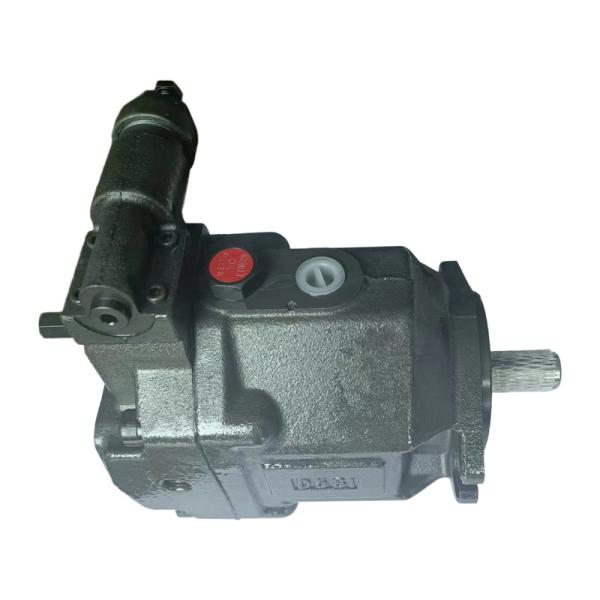

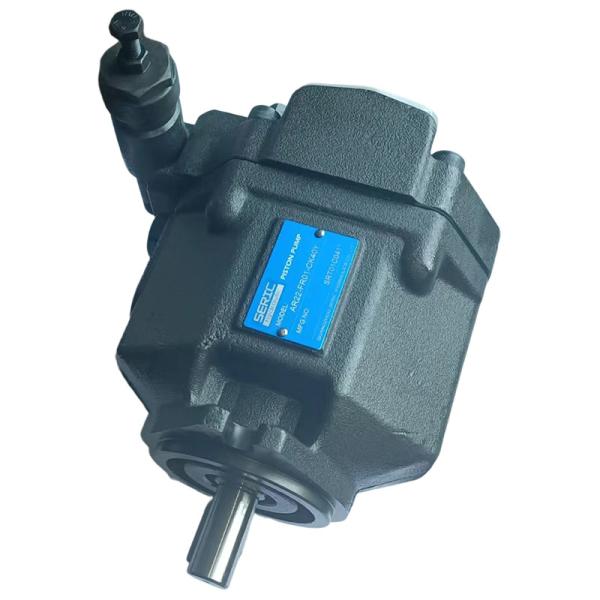

AR16 Series and AR22 Series Low Noise Piston Pump

AR16 and AR22 piston pump Features

Lightweight Low Noise:
Compact design and an aluminum body ensures a high power to mass ratio.

Compact easy to assemble:
Can be directly connected to the electric motor, save fuel tank piping and space

Multi-purpose:
Applicable to a variety of machine tools NC lathe, MC machining machines, pipe bender, small punch, high efficiency special machines etc.

Technical Date

Model Geometric Displacement
(cm³/rev)		 Min.Adj. Flow
(cm³/rev)		 Rate pressure
(Mpa)		 Speed
(r/min)		 Weight
(kg)
Rate Max. Max. Min.
AR16-FR01※-20 15.8 6 16 1800 600 9.8
AR22-FR01※-20 22.2 8.5

Model Description

AR16 -F R 1 B -20
Series Number Mounting Type Rotation Direction Control Type Pressure Adjustment Range (MPa) Design Number
AR16 (15.8 cm³/rev) F: Flange - mounted type R: Clockwise direction (standard) [Viewed from shaft extension end] 01: Pressure compensation control type B: 1.2 - 7
C: 2.0 - 16		 20
AR22 (22.2 cm³/rev) 20
