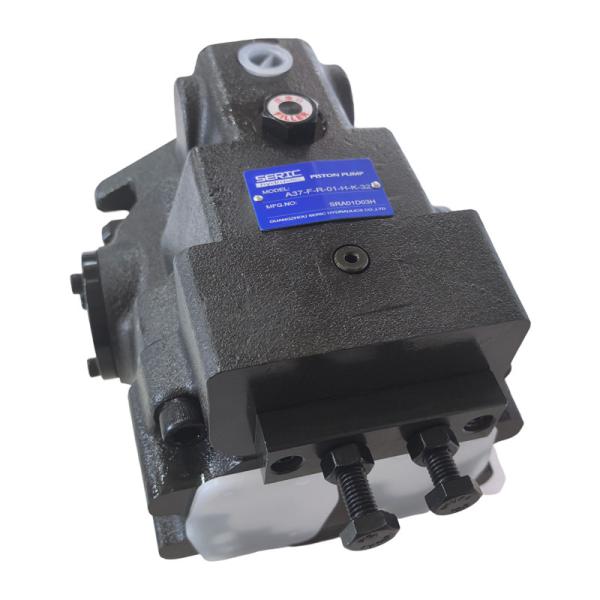

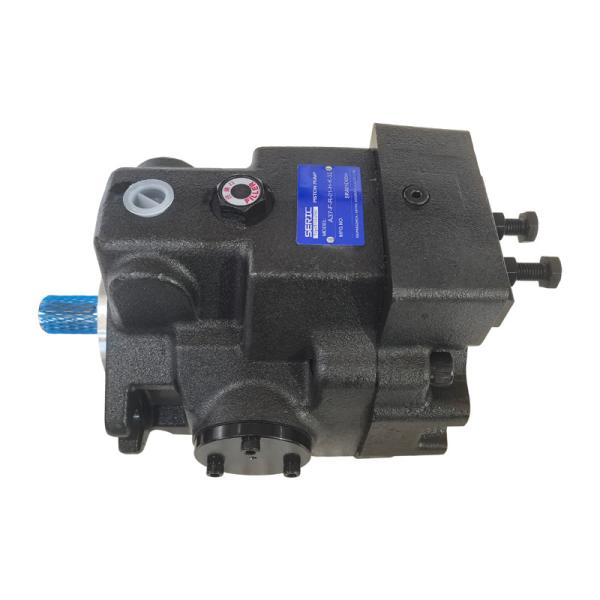

Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Specifications
Brand Name :
Seric
Model Number :
A Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

A Series Variable Displacement Piston Pumps Single Pump Pressure Compensator Type

Features

1. High efficiency
2. Low noise level
3. Accomplishment of energy-saving
Because the overall efficiency is high and the cut-off characteristics is sharp, thus the input power may be saved.
4. Low heat generation
Because of small power loss, it is possible to reduce the rise in oil temperature. Accordingly, capacity of a reservoir can be reduced.

Specifications

Model Numbers Geometric Displacement
cm³/rev (cu. in./rev)		 Minimum Adj. Flow
cm³/rev (cu. in./rev)		 Operating Pres.
MPa (PSI)		 Shaft Speed Range
r/min		 Approx. Mass
kg (lbs.)
Rated Intermittent Max. Min. Flange Mtg. Foot Mtg.
A10-FR01B-12* 10.0 (.610) 2 (.122) 16 (2320) 21 (3050) 1800 600 5.1 (11.2) —
A10-FR01C/H-12* 8.5 (18.7)
A16-*-R-01-*-*-K-32 15.8 (.964) 4 (.244) 16 (2320) 21 (3050) 1800 600 16.5 (36.4) 18.7 (41.2)
A22-*-R-01-*-*-K-32 22.2 (1.355) 6 (.366) 16 (2320) 16 (2320) 1800 600 16.5 (36.4) 18.7 (41.2)
A37-*-R-01-*-*-K-32 36.9 (2.25) 10 (.610) 16 (2320) 21 (3050) 1800 600 28.0 (61.7) 32.3 (71.2)
A56-*-R-01-*-*-K-32 56.2 (3.43) 12 (.732) 16 (2320) 21 (3050) 1800 600 35.0 (77.2) 39.3 (86.7)
A70-*R01*S-60* 70.0 (4.27) 30 (1.83) 25 (3630) 28 (4060) 1800 600 58.5 (129) 70.5 (155)
A90-*R01*S-60* 91.0 (5.55) 56 (3.42) 25 (3630) 28 (4060) 1800 600 72.5 (160) 93 (205)
A145-*R01*S-60* 145 (8.85) 83 (5.06) 25 (3630) 28 (4060) 1800 600 92.5 (204) 117.5 (259)

Model Number Designation

A16 -F -R -1 -B -S -K -32 *
Series Number Mounting Direction of Rotation Control Type Pres. Adj. Range
MPa (PSI)		 Port Position Shaft Extension Design Number Design Std.
A16 (15.8 cm³/rev) F: Flange Mtg.

L: Foot Mtg.		 (Viewed from Shaft End)

R: Clockwise (Normal)		 01: Pressure Compensator Type B: 1.2 - 7 (170 - 1020)
C: 1.2 - 16 (170 - 2320)
H: 1.2 - 21 (170 - 3050)		 None: Axial Port

S: Side Port		 K: Keyed Shaft 32 Refer to
A22 (22.2 cm³/rev) B: 1.2 - 7 (170 - 1020)
C: 1.2 - 16 (170 - 2320)		 32
A37 (36.9 cm³/rev) B: 1.2 - 7 (170 - 1020)
C: 1.2 - 16 (170 - 2320)
H: 1.2 - 21 (170 - 3050)		 32
A56 (56.2 cm³/rev) 32

A70 -F R 1 B S -60 *
Series Number Mounting Direction of Rotation Control Type Pres. Adj. Range
MPa (PSI)		 Port Position Design Number Design Std.
A10 (10.0 cm³/rev) F: Flange Mtg. [Viewed from Shaft End]

R: Clockwise (Normal)		 01: Pressure Compensator Type B: 1.2 - 7 (170 - 1020)
C: 2.0 - 16 (290 - 2320)
H: 2.0 - 21 (290 - 3050)		 — 12 Refer to
A70 (70.0 cm³/rev) F: Flange Mtg.

L: Foot Mtg.		 B: 1.2 - 7 (170 - 1020)
C: 1.5 - 16 (220 - 2320)
H: 1.8 - 21 (260 - 3050)
K: 2.0 - 28 (290 - 4060)		 S: Side Port 60
A90 (91.0 cm³/rev) 60
A145 (145 cm³/rev) 60
