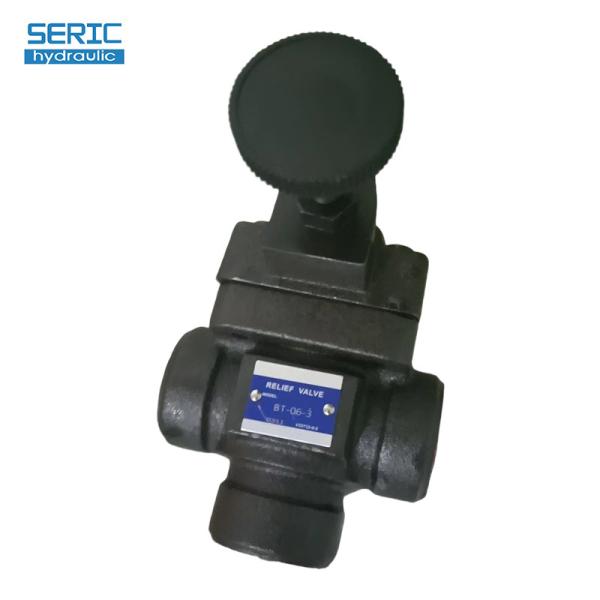

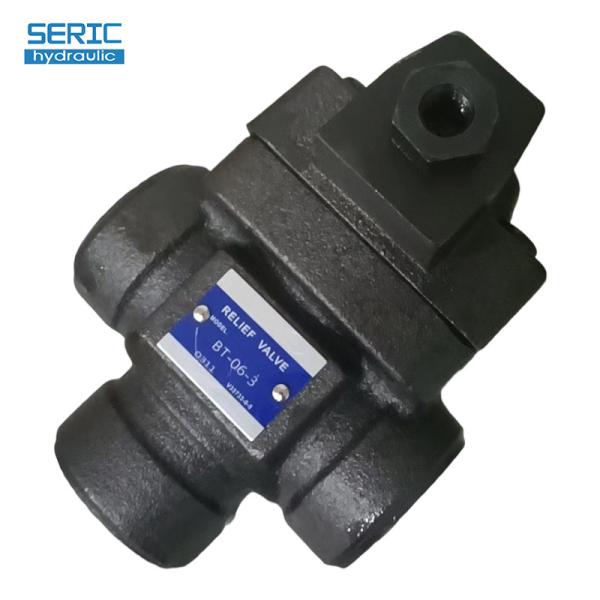

BT-06 Pilot Operated Relief Valve with Remote Control Function
BT-06 Pilot Operated Relief Valve with Remote Control Function
BT-06 Pilot Operated Relief Valve with Remote Control Function
BT-06 Pilot Operated Relief Valve with Remote Control Function
Specifications
Brand Name :
Seric
Model Number :
BT Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Pilot Operated Relief Valve BG-06


Features

These valves safeguard hydraulic systems by relieving excess pressure and can also be used to maintain consistent system pressure. Remote control and unloading functions are enabled through the use of vent ports.


Specifications

Model Numbers Max. Operating Pressure
MPa (PSI)		 Pres. Adj. Range
MPa (PSI)		 Max. Flow
L/min (U.S.GPM)		 Approx. Mass
kg (lbs.)
Threaded Connection Sub-plate Mounting BT type BG type
BT-03-*-32 BG-03-*-32 25 (3630) Note)
★25
(★-3630)		 100 (26.4) 5.0 (11.0) 4.7 (10.4)
BT-06-*-32 BG-06-*-32 200 (52.8) 5.0 (11.0) 5.6 (12.3)
BT-10-*-32 BG-10-*-32 400 (106) 8.5 (18.7) 8.7 (19.2)

Model Number Designation

F-
B
 T –03 –V –40 *
Special Seals Series Number Type of Mounting Valve Size High Venting Pres. Feature Design Number Design Standards
F:
Special Seals for Phosphate Ester Type Fluids
(Omit if not required)		 B:Pilot Operated Relief Valves T:Threaded Connection 03 V:For High Venting Pressure Feature(Omit if not required) 32 None: Japanese Std."JIS"
80: European Design Std.
90: N.American Design Std.
06 32
10 32
G:Sub-plate Mounting 03 32 None: Japanese Std."JIS" and European Design Std.
90: N.American Design Std.
06 32
10 32

★Use high venting pressure type to reduce the response time from unload to onload.
