DBW Pilot Operated Pressure Relief Valves
DBW Pilot Operated Pressure Relief Valves
Specifications
Brand Name :
Seric
Model Number :
DBW Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

DBW Pilot Operated Pressure Relief Valves


Features

Models DB/DBW series are pilot-operated relief valves, designed to limit system pressure and enable unloading by means of a mounted solenoid valve.

Features:

1. Optional connection types: plate type, cartridge type

2. Pressure adjustment achievable via adjusting handle

3. Electromagnet-equipped version available


Technical Data


General

Installation Position Any
Weight DB10 DB15 DB20 DB25 DB30
Sub-plate Mounting (DB) (kg) 2.6 - 3.5 - 4.4
(DBW) (kg) 3.8 - 4.7 - 5.6
(DBC) (kg) 1.2 (Add 1.2kg for DBWC type)
(DBC10 or 30) (kg) 1.5 (Add 1.2kg for DBWC10 or 30 type)
Threaded Connection (DB-...-...) (kg) 5.3 5.2 5.1 5 4.8
(DBW-...-...) (kg) 6.5 6.4 6.3 6.2 6
Directional Valve Data 6-way directional valve sample


Hydraulics

Working Pressure (Ports A, B, X) (MPa) Up to 35.0
Back Pressure (Port Y) DB (MPa) Up to 31.5
DBW.6A (Standard Solenoid) (MPa) AC: 10.0; DC: 16.0
DBW.6B (High-power Solenoid) (MPa) AC/DC: 16.0
Setting Pressure Minimum (MPa) Related to Q (see performance curve)
Maximum (MPa) Up to 5.0, 10.0, 20.0, 31.5, 35.0
Maximum Flow Rate
- Sub-plate Mounting (L/min)
- Pipe Connection (L/min)		 DB10 DB15 DB20 DB25 DB30
250 - 500 - 650
250 500 500 500 650
Medium Mineral hydraulic oil or phosphate ester hydraulic oil
Temperature Range (°C) -30 ~ +80
Viscosity Range (mm²/s) 10 ~ 800
Filtration Precision NAS1638 Class 9

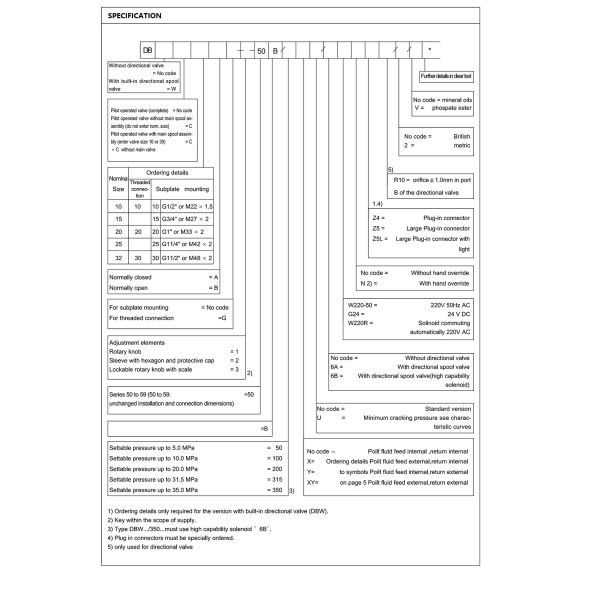

Specifications


DBW Pilot Operated Pressure Relief Valves


DBW Pilot Operated Pressure Relief Valves

DBW Pilot Operated Pressure Relief Valves

DBW Pilot Operated Pressure Relief Valves

DBW Pilot Operated Pressure Relief Valves
