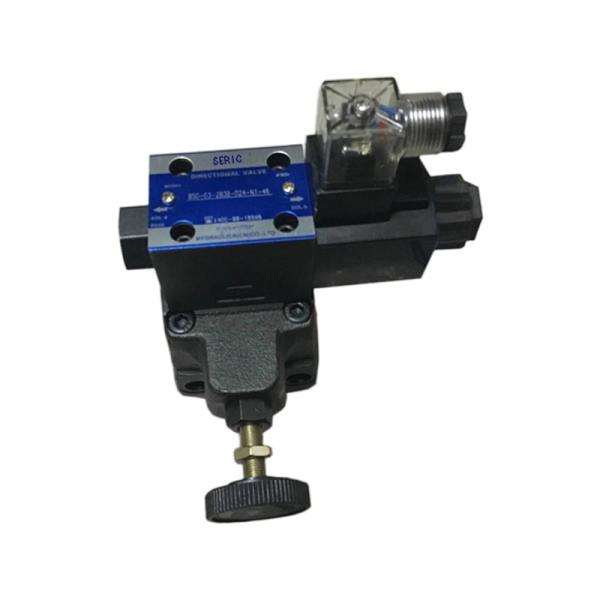

BSG/T Type Solenoid Control Relief Valve Pilot Operated Hydraulic Electromagnetic Valve
BSG/T Type Solenoid Control Relief Valve Pilot Operated Hydraulic Electromagnetic Valve
Specifications
Brand Name :
Seric
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
USD35.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Model Number :
BSG/T Series
Certification :
CE, ISO
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Solenoid Control Relief Valve BSG/T Type Hydraulic Electromagnetic Valve


Features

These valves are a combination of a pilot operated relief valve and a solenoid operated directional valve. Piping between the two is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent.

Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting pilot relief valves to the solenoid valve ports.

Specifications

Model Numbers Max. Operating Pressure
(Mpa)		 Pres. Adj. Range
(Mpa)		 Max. Flow
(L/min)		 Approx. Mass
kg (lbs.)
Double Sol. Single Sol. With Vent Restrictor
Threaded Connection BSG/T-03-*-*-48 25 Note) -25 100 7.1 (15.7) 6.6 (14.6) 7.6 (16.8)
BSG/T-06-*-*-48 200 7.1 (15.7) 6.6 (14.6) 7.6 (16.8)
BSG/T-10-*-*-48 400 10.8 (23.8) 10.3 (22.7) 11.3 (24.9)
Sub-plate Mounting BSG/T-03-*-*-48 25 Note) -25 100 6.8 (15.0) 6.3 (13.9) 7.3 (16.1)
BSG/T-06-*-*-48 200 7.7 (17.0) 7.2 (15.9) 8.2 (18.1)
BSG/T-10-*-*-48 400 11.0 (24.3) 10.5 (23.2) 11.5 (25.4)

Note: For relief valves, standard pilot operated relief valves are used.
