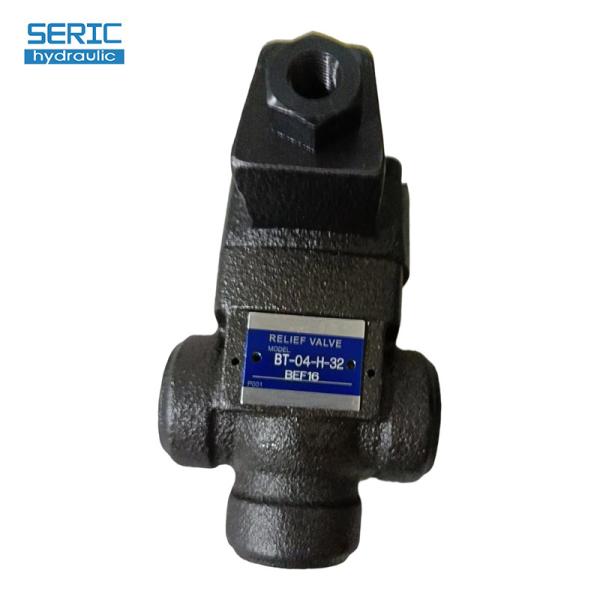

04 Series BT-04-H-32 Pilot Operated Relief Valves
04 Series BT-04-H-32 Pilot Operated Relief Valves
Specifications
Brand Name :
Seric
Model Number :
BT Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

04 Series BT-04-H-32 Pilot Operated Relief Valves


Features

l These relief control valves are commonly found in basic hydraulic systems, where they help keep pressure levels consistent.

l Pilot-operated relief valves feature a straightforward design and offer great value.

l The vent circuit allows for remote control and system unloading.

l They’re engineered to shield hydraulic systems from excessive pressure.

l A cast iron body delivers strength and durability, ensuring a longer service life.

l Hardened steel internal parts also contribute to extended longevity.


Model Number Designation

B T -4 32
Series Number Mounting Type Specification Pressure Rating
B: Pilot Operated Relief Valve T: Tubular Mounting 04: 16 Nominal Diameter (1/2)
06: 25 Nominal Diameter (3/4)
10: 32 Nominal Diameter (11/4)



Precautions for Use

l The back pressure at the oil return port must not exceed 0.5 MPa.

l The oil return pipe should directly return to the oil tank and must not be connected to the oil return pipes of other valves.

l When adjusting the pressure regulating handle, turn clockwise to increase the pressure and counterclockwise to decrease it. Be sure to tighten the fixing nut after pressure adjustment.

l When the flow rate is small, the set pressure is prone to instability. For specifications 04 and 06, use a flow rate of more than 8 L/min; for specification 10, use a flow rate of more than 15 L/min.
