RXF11 Varnished Wirewound Resistor
RXF11 Varnished Wirewound Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXF11
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RXF11 Varnished wirewound resistor

Product Introduction:

  • Product Features:Axial lead-out design, strong overload capacity.Surface coated, high temperature resistance, flame retardant, with flame retardancy certified by CQC.
  • Application Areas:Functions as a resistor when the circuit operates normally, and can quickly fuse in case of circuit abnormalities, providing protection.
  • Product Standard:Detailed specifications for Q/RW 458-2004 RXF11 type fuse wirewound resistors.
  • Manufacturing Capability:Products can be manufactured to comply with RoHS and REACH requirements.

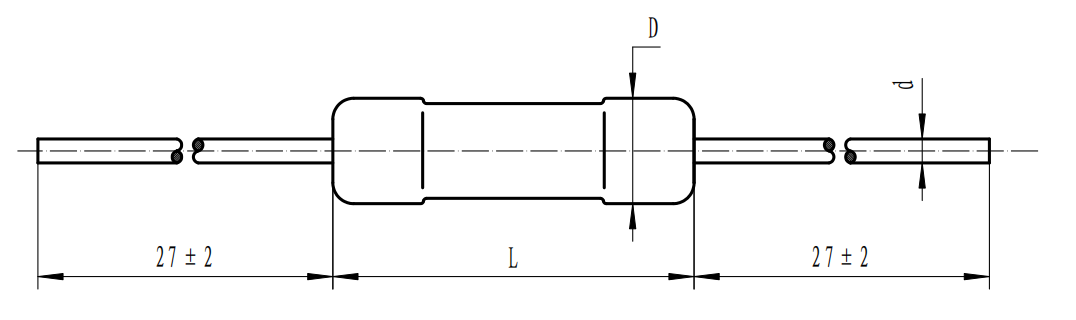

Size:
RXF11 Varnished Wirewound Resistor

specifications and models rated power(W) resistance range(Ω) Size (mm)
Lmax Dmax d
RXF11-1/4W 1/4 0.015～8.2 7 2.5 0.6
RXF11-1/2W 1/2 0.015～15 9.5 4 0.6
RXF11-1W 1 0.13～15 11.5 4.5 0.6
RXF11-2W 2 0.02～43 15.5 5.5 0.8
RXF11-3W 3 0.022～43 16.5 7 0.8

Key Test Items:

Test Items: Test Conditions: Performance Requirements: Test Standards:
Lead-out terminal strength Pull force: 10N for 10 seconds ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.29-1999
Solderability Slot temperature: (235±5) ℃, immersion time: (2±0.5) seconds Uniformly tinned, free flow GB/T 2423.28-2005
Impact resistance Acceleration: 490m/s2, time: 11ms, half-sine wave ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.05-1995
Vibration resistance Frequency: (10-500) Hz, amplitude 0.75mm or acceleration 98m/s2, 6 hours ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.10-2008
Fuse characteristics Application of fuse voltage or current Fuse resistance: R2/R1 > 100Ω SJ 2865-1988 Section 1.8.1
Unexpected overload test(Flame retardancy) Power: 5 times, 10 times, 16 times rated power, time: 5 minutes (or until open circuit) No visible flame or burning phenomena SJ 3272-1990 Section 4.2.2

Ordering Example:

Model Number :RX21

Rated Power:10W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
