RXG20B Varnished Wirewound Resistor
RXG20B Varnished Wirewound Resistor
RXG20B Varnished Wirewound Resistor
RXG20B Varnished Wirewound Resistor
RXG20B Varnished Wirewound Resistor
RXG20B Varnished Wirewound Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXG20B
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

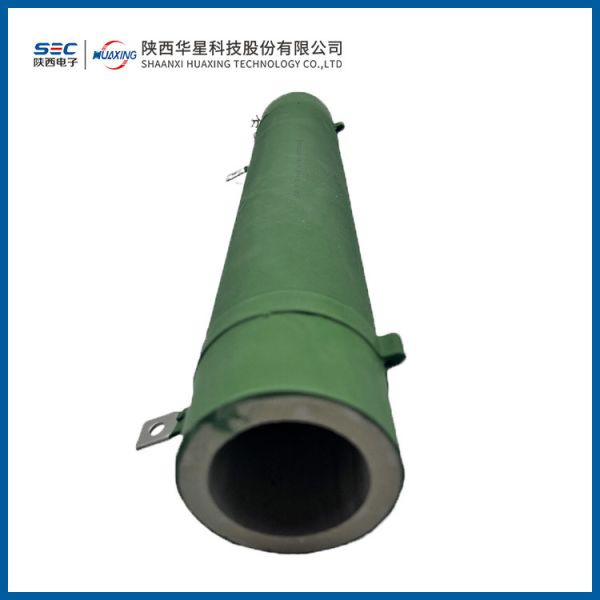

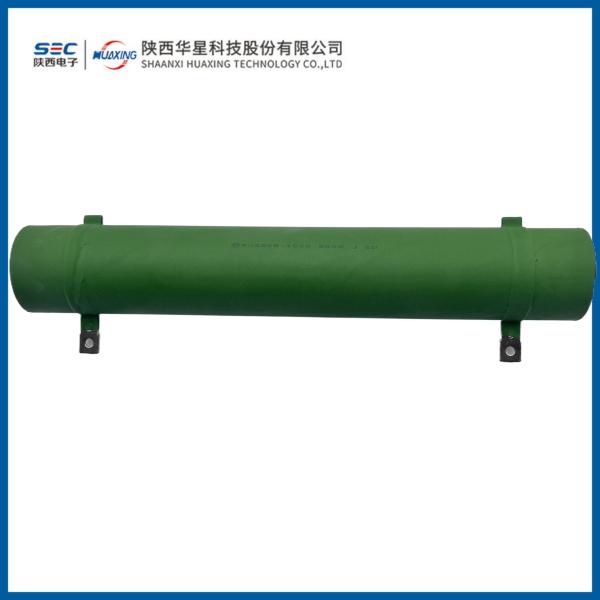

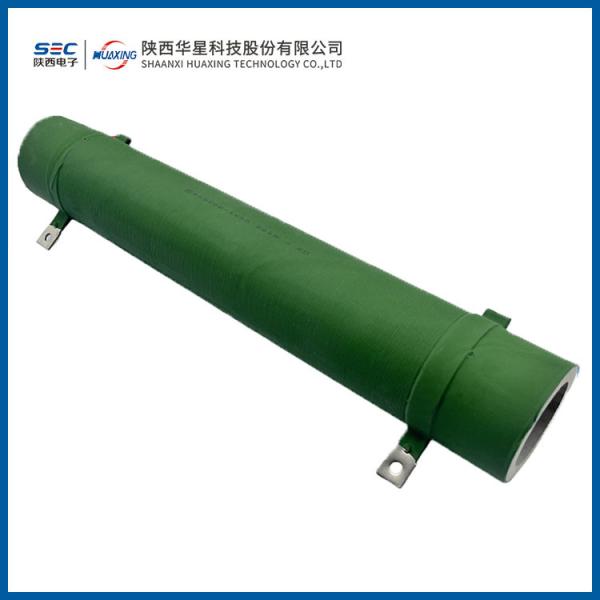

RXG20B Varnished wirewound resistor

Product Introduction:

  • Product Features: Equipped with dedicated accessories (optional), easy to install. Surface coated, high temperature resistant, flame retardant.
  • Application Areas: DC or low-frequency AC circuits in high-power electrical equipment.
  • Product Standard: Detailed specifications of RXHG-A/B power-type corrugated enamel/painted wire-wound fixed resistors under standard Q/RW468-2010.
  • Capable of producing products that comply with RoHS and REACH requirements.

Size:

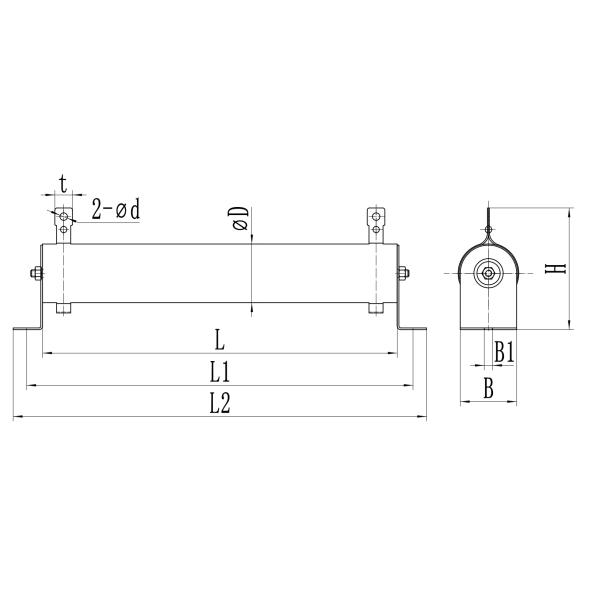

RXG20B Varnished Wirewound Resistor

specifications and models rated power(W) resistance range(Ω) Size (mm) weight(g)
L L1 L2 φD H t φd B1 B

RXG20B-200W

 200 33～3.6K 266±2 288±3 300±4 32±3 76±3 12±1 5.5 6.5 28 255
RXG20B-300W 300 39～4.3K 266±2 288±3 302±4 36±3 88±3 12±1 5.5 6.5 34 410
RXG20B-400W 400 51～6.8K 250±2 280±3 302±4 54±3 102±3 15±1 6.5 7 48 770
RXG20B-500W 500 62～10K 300±2 330±3 352±4 54±3 102±3 15±1 6.5 7 48 1040
RXG20B-1000W 1000 82～10K 300±3 332±4 362±4 72±3 128±3 16±1 6.5 9 68 1500
RXG20B-1500W 1500 130～10K 420±3 452±4 482±4 72±3 128±3 16±1 6.5 9 68 2000
RXG20B-2000W 2000 160～10K 520±3 552±4 582±4 72±3 128±3 16±1 6.5 9 68 2500
RXG20B-2500W 2500 200～10K 600±3 632±4 662±4 72±3 128±3 16±1 6.5 9 68 3000
RXG20B-3000W 3000 240～10K 700±3 732±4 762±4 72±3 128±3 16±1 6.5 9 68 3500

Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Voltage withstand capability Voltage: 1500Vdc, 1 minute, between lead-out terminal and mounting component No breakdown, arcing phenomena GB/T 5729-2003 Section 4.7
Lead strength Tensile strength: 20N, 10 seconds ΔR ≤ ±(2%R + 0.1Ω) GB/T 2423.29-1999
Rapid temperature changes Temperature range: (-55 to +125)°C, 5 cycles ΔR ≤ ±(2%R + 0.1Ω) GB/T 2423.22-2002
Steady-state humidity and heat Temperature: (40±2)°C, relative humidity: (93±3)%, 96 hours ΔR ≤ ±(5%R + 0.1Ω) GB/T 2423.03-1993
Room temperature durability Ambient temperature: (15 to 35)°C, rated power, 1.5 hours powered on; 0.5 hours powered off, 96 hours ΔR ≤ ±(5%R + 0.1Ω) GB/T 5729-2003 Section 4.25

Power dissipation curve:

RXG20B Varnished Wirewound Resistor

Ordering Example:

Model Number :RXG20B

Rated Power:200W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

With attachment

Quantity:1000 pieces
