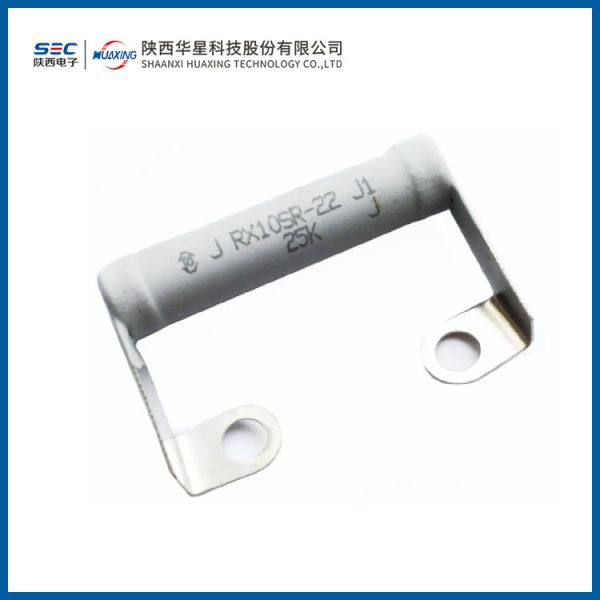

RX7S/10S Varnished wirewound resistor

Product Introduction:

  • Product Features:Axial lead-out design, strong overload capacity；Surface coated, high temperature resistance, flame retardant.
  • Application Areas:elecom instruments and electronic devices, generally used in DC or low-frequency circuits.
  • Product Standard:Detailed specifications for Q/RW306-2012 RX21 type coated wirewound fixed resistors.
  • Customizable options:Resistance deviation can be negotiated at ±1% (F), ±2% (G), or with no inductance (designated by "N" after the model).

RX7S/10S Varnished Wirewound Resistor

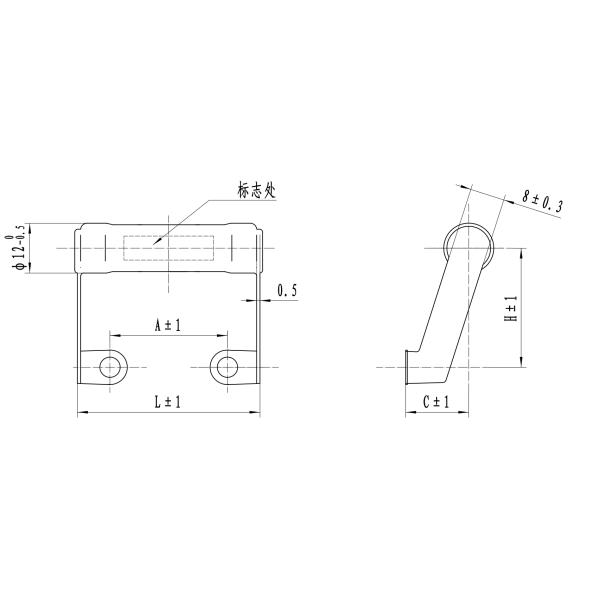

specifications and models rated power(W) resistance range(Ω) Size (mm)
L A H C
RX7SR-10W 10 0.15～10 40 22.2 21 15
RX10SR-7W 7 0.15～33 47 31.8 21 15
RX10SRH-10W 10 0.15～40 50 31.8 21 12

Key Test Items:

Test Items: Test Conditions: Performance Requirements: Test Standards:
Resistance variation with temperature Lower category temperature: (-40±3) ℃
Upper category temperature: (+125±2) ℃		 ±500PPm/℃ GB/T 5729-2003 Section 4.8
Overload 10 times rated power load for 5 seconds ΔR ≤ ±(5%R + 0.05Ω) GB/T 5732-1985 Section 2.3.4
Temperature rise Ambient temperature: (15-30) ℃, rated power ≤200℃ GB/T 5729-2003 Section 4.14
Lead strength Pull force: 1W-6W; 10N, 8W-12W; 20N, 10 seconds ΔR ≤ ±(2%R + 0.05Ω) GB/T 2423.29-1999
Rapid temperature changes Temperature range: (-40 to +125) ℃, 5 cycles ΔR ≤ ±(2%R + 0.05Ω) GB/T 2423.22-2002
Room temperature durability Ambient temperature: (15-30) ℃, rated power, 1.5 hours powered; 0.5 hours off, 1000 hours ΔR ≤ ±(5%R + 0.1Ω) GB/T 5729-2003 Section 4.25

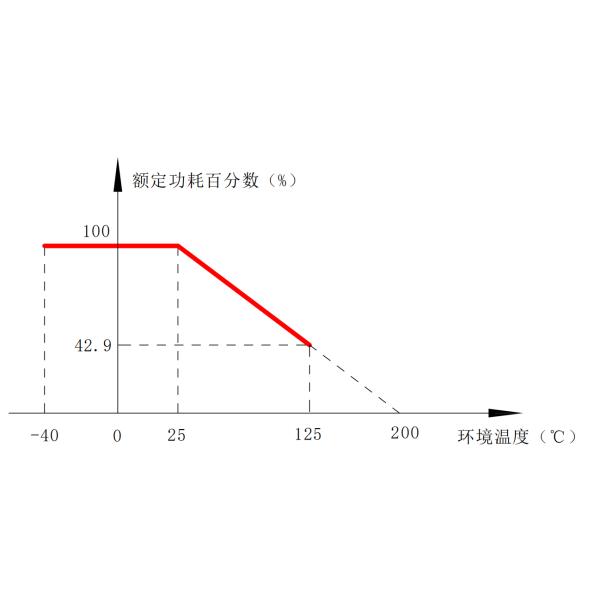

Power dissipation curve:

RX7S/10S Varnished Wirewound Resistor

Ordering Example:

Model Number :RX7S/10S

Rated Power:10W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
