Specifications
Brand Name :
HUAXING
Model Number :
RXQAN
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RXQAN Varnished wirewound resistor

Product Introduction:

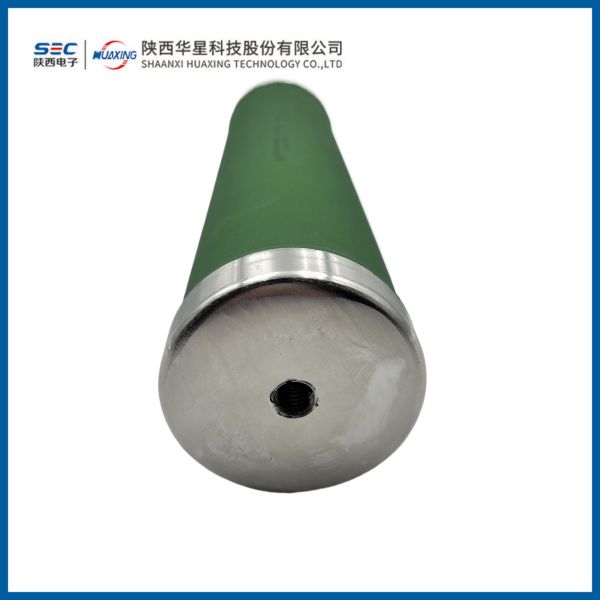

  • Product Features: Lead-out with axial threaded hole for bolt installation. Surface coated, high-temperature resistant, flame retardant.
  • Application Areas: Direct current or low-frequency alternating current circuits in high-power electrical equipment.
  • Product Standard: Detailed specifications for Q/RW520-2016 RXQAN type coated wirewound fixed resistors.
  • Non-inductive products can be provided upon negotiation, denoted by adding "N" before the model number.
  • Products can be manufactured to comply with RoHS and REACH requirements.

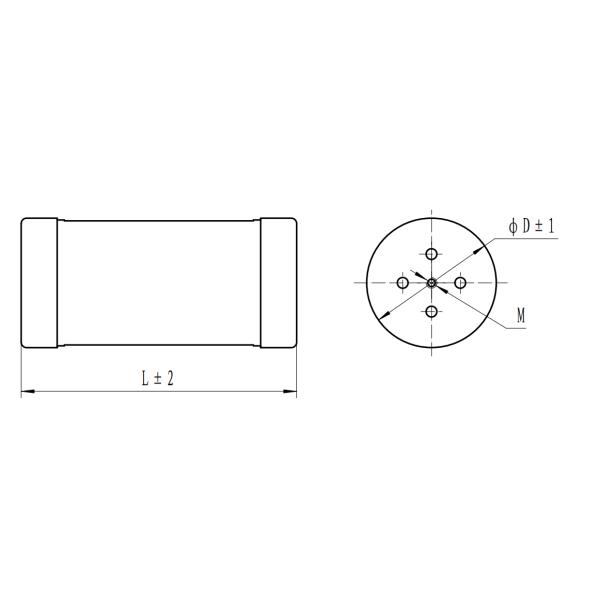

Size:
RXQAN Varnished Wirewound Resistor

specifications and models rated power(W) Impulse power resistance range(Ω) Size (mm)
(W)(2min) L D M
RXQAN-160 150 200 20～2.4K 150 Φ37 6
RXQAN-250 200 300 30～3.6K 150 φ55 8
RXQAN-500 300 500 43～4.7K 153 φ73 default 8
RXQAN-1000 600 1000 82～10K 308 (customizable
RXQAN-1500 800 1500 130～10K 428 6,10,12,16)
RXQAN-2000 1000 2000 160～10K 528

Key Test Items:

Test Items: Test Conditions: Performance Requirements: Test Standards:
Temperature rise Ambient temperature: (15-30) ℃, rated power ≤400℃ GB/T 5729-2003 Section 4.14
Rapid temperature changes Temperature range: (-55 to +125) ℃, 5 cycles ΔR ≤ ±(1%R + 0.1Ω) GB/T 2423.22-2002
Impact resistance Acceleration: 150m/s2, time: 11ms, half-sine wave ΔR ≤ ±(1%R + 0.1Ω) GB/T 2423.05-1995
Vibration Frequency: (10-55) Hz
Amplitude 0.75mm or acceleration 98m/s2, 1 hour		 ΔR ≤ ±(1%R + 0.1Ω) GB/T 2423.10-2008
Steady-state damp heat Temperature: (40±2) ℃, relative humidity: (93±3)%, 96 hours ΔR ≤ ±(5%R + 0.1Ω) GB/T 2423.03-1993
Room temperature durability Ambient temperature: (15-35) ℃, rated power, 1.5 hours powered; 0.5 hours off, 96 hours ΔR ≤ ±(5%R + 0.1Ω) GB/T 5729-2003 Section 4.25

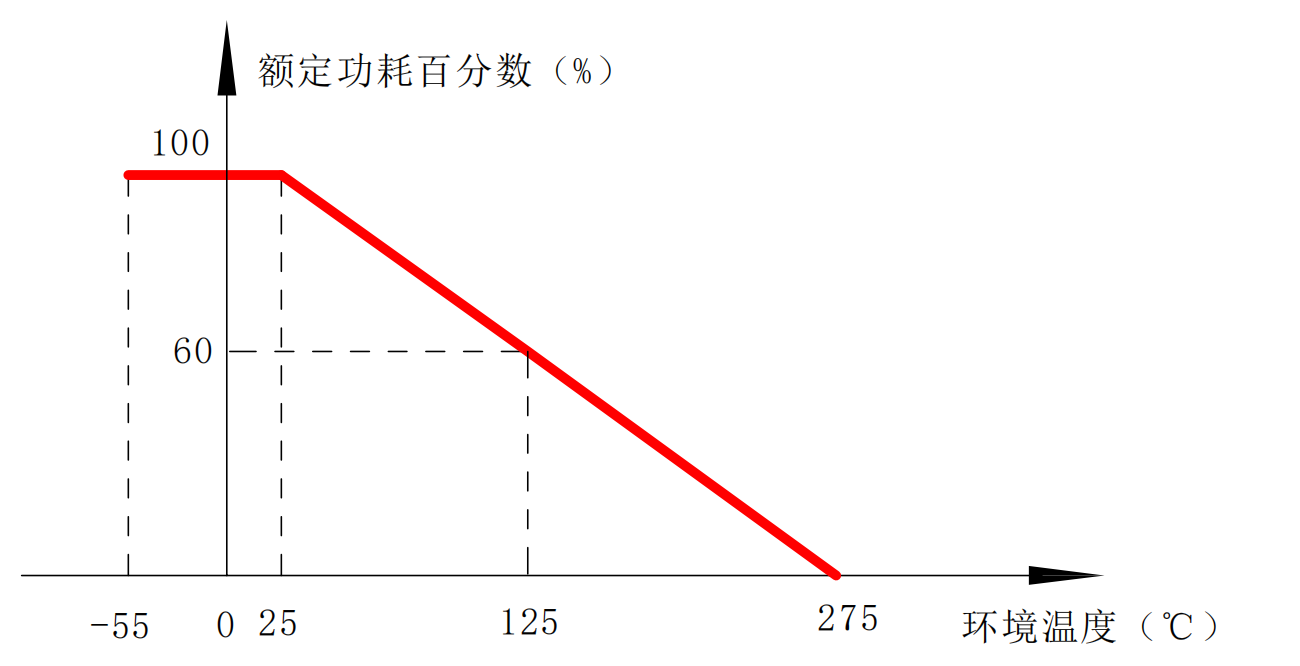

Power dissipation curve:

RXQAN Varnished Wirewound Resistor

Ordering Example:

Model Number :RXQAN

Impulse power:200W

Nominal Resistance:400Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
