RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
RY0990 Type Pulse Oxidation Film Fixed Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RY0990
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RY0990 type pulse oxidation film fixed resistor

1. Purpose:

used for high voltage pulse electronic equipment and other pulse electronic circuits.

2. Packaging form:

green insulating paint coating

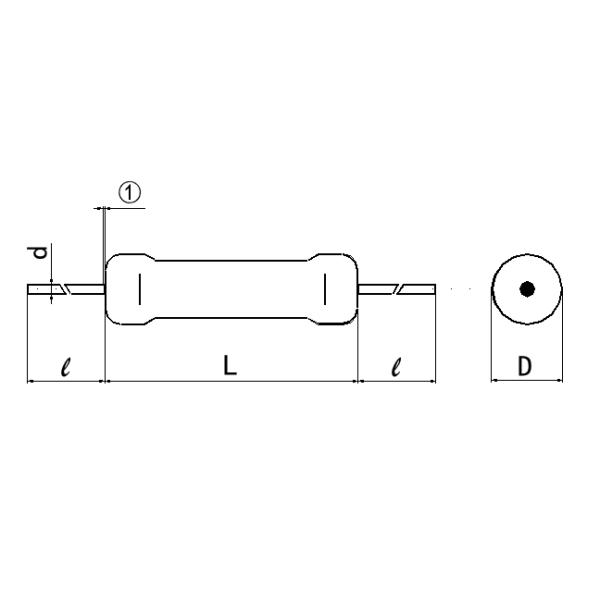

3. External size:

RY0990 Type Pulse Oxidation Film Fixed Resistor

Note ①: The resistance and allowable deviation are directly marked on the main body of the product.

70℃ rated power consumption

(W)

 outline dimension mm

maximum weight

(g)
Lmax Dmax l d
1 25 φ6.6 30±2 0.8±0.05 1.5
2 30 φ8.0 2.4

4. Main technical indicators:

power rating

(W)

Resistance range

(kΩ)

Resistance accuracy

(±%)

Component limit voltage

(V)

Pulse limit voltage

(k V)

 surge

resistance-temperature characteristic

×10-6/℃
1 2-3.9 5 500 15

Voltage 8kV

Capacitor 0.08µF

 200
2 12-24 5 700
