RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
RY Type Power Oxide Film Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RY
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RY type power oxide film resistor

1. Purpose:

strong load capacity, used for load, current limitation and voltage division.

2. Packaging form:

coated with gray insulating paint.

3. Main technical indicators:

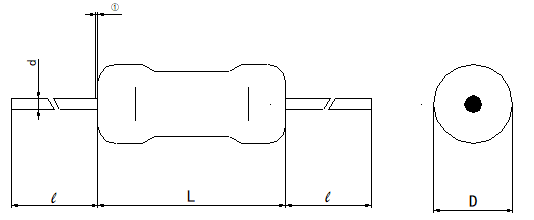

model power (W)

Dmax

mm

Lmax

mm

 d(mm) l(mm)

RY Type Power Oxide Film Resistor

The length of the paint should not exceed 2mmj
RYG1 1/4 2.7 7 0.56±0.05 28±2
1/2 4 10 0.6±0.05
1 5 12 0.7±0.05
2 6 16 0.7±0.05
3 7 18 0.8±0.05 30±3
RYG2 1/2 2.7 7 0.56±0.05 28±2
1 4 10 0.7±0.05
2 5 12
3 6 16
5 7 18 0.8±0.05 30±3
7 9.5 25 0.8±0.05 30±3

4. Main technical indicators:

model Rated power (W) at 70℃

temperature coefficient

ppm/℃

 Resistance range (Ω) Resistance tolerance deviation Component limit voltage (V) Insulation voltage (V)
RYG1 1/4 ±250 1-100K

±1%

±5%

 250 350
1/2 300 350
1 350 500
2 350 500
3 500 700
RYG2 1/2 ±350 1-100K

±1%

±5%

 250 350
1 350 500
2 350 500
3 350 500
5 500 700
7 700 750
