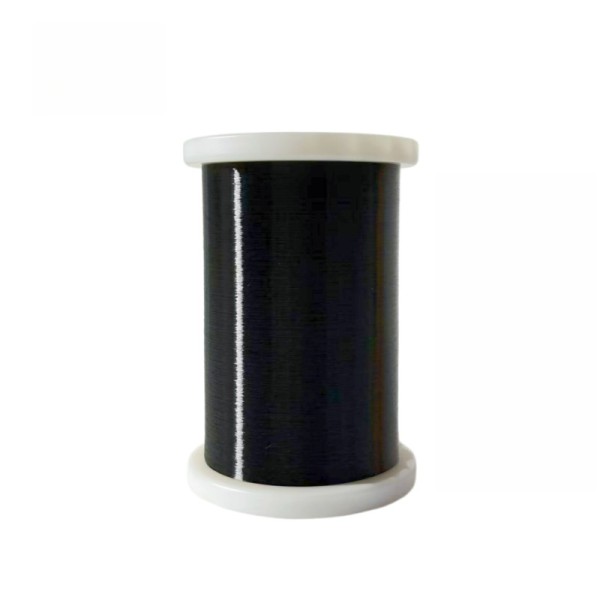

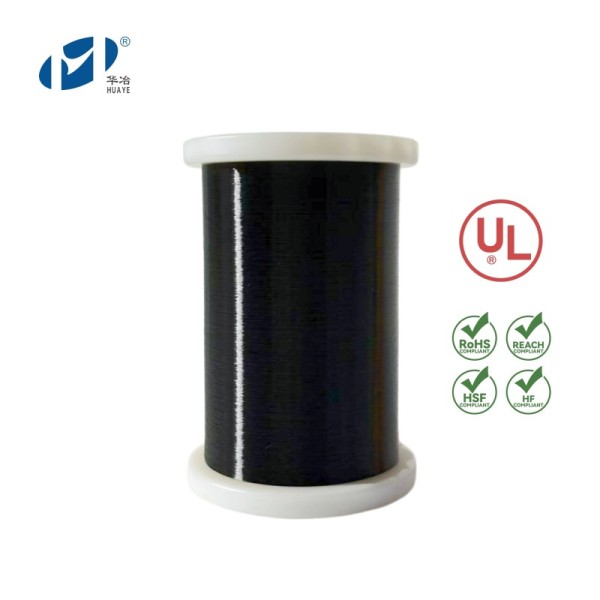

Polyurethane Black Enameled Copper Round Wire 0.050mm Diameter Ultra Fine Magnet Wire
Polyurethane Black Enameled Copper Round Wire 0.050mm Diameter Ultra Fine Magnet Wire
Polyurethane Black Enameled Copper Round Wire 0.050mm Diameter Ultra Fine Magnet Wire
Polyurethane Black Enameled Copper Round Wire 0.050mm Diameter Ultra Fine Magnet Wire
Specifications
Model Number :
3UEW-F
Insulation Material :
Polyurethane
MOQ :
200KG
Delivery Time :
15 work days
Diameter :
0.050mm
Payment Terms :
L/C,T/T,Western Union
Conductor Material :
Copper
Supply Ability :
7000 Kilograms per Month
Size Deviation :
≤ 0.001mm
Certification :
UL/ISO9001/ISO14001/RoHS/Reach
Thermal Rating :
155
Place of Origin :
Hubei,China
Conductor Materia :
Copper
Price :
Negotiable
Key Word :
High Purity Enamelled Round Copper Wire, Custom Enamelled Round Copper Wire, Polyurethane Enamelled Round Copper Wire
Brand Name :
HUAYE
Product Name :
Custom Fine Polyurethane 0.050mm Enameled Round Copper Wire
Packaging Details :
Wooden Case
Description
3UEW-F Colored Ultra-fine Magnet Wire
Technical Specifications
Parameter Specification
Model 3UEW
Conductor Diameter 0.050mm ± 0.001mm
Resistance 8.455～8.967
Insulation Thickness Grade 3
Thermal Class 155°C (F-class)
Product Overview

3UEW-F Black Wire is an ultra-fine polyurethane enameled copper wire with a uniform black coating. It is designed for precision winding applications requiring stable electrical performance, excellent solderability, and compact coil structures.

The black insulation provides a consistent appearance and is suitable for applications where visual identification or design uniformity is required.

Key Features
  • Ultra-fine enameled copper conductor (0.050mm)
  • Polyurethane insulation with black finish
  • Direct solderable (UEW type)
  • Excellent winding performance
  • Suitable for precision coil structures
  • Stable electrical and mechanical properties
Applications
  • Voice coils (small speakers / audio devices)
  • Precision inductors
  • Micro motors
  • Sensors and electronic components
  • Compact electronic assemblies
Quality Assurance

Manufactured under strict quality control systems and compliant with JIS, NEMA, and IEC standards to ensure stable electrical performance and consistent quality.
