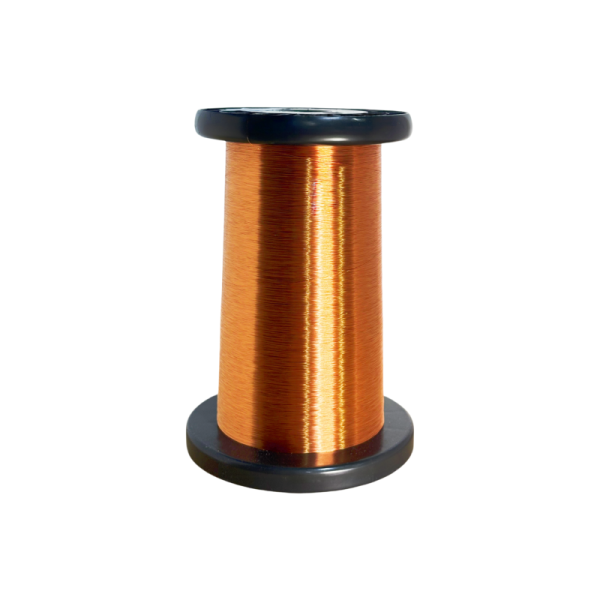

0.270mm Low Temperature Solderable UEW Magnet Wire
0.270mm Low Temperature Solderable UEW Magnet Wire
Specifications
Model Number :
3LOKYCS
Conductor Material :
Recycle Copper
MOQ :
200KG
Delivery Time :
15days
Insulation Material :
Polyurethane
Conductor Diameter :
0.27mm
Payment Terms :
T/T
Supply Ability :
10 Tons/Monthly
Thermal Class :
F
Certification :
UL/QC080000/ISO9001/ISO14001/IATF16949/HSF/SCS Global Services
Place of Origin :
China
Film Thickness :
Thin film
Price :
Negotiation
Low-temperature Soldering :
300–320°C
Brand Name :
HUAYE
Packaging Details :
Cartons
Description
OVERVIEW

This is 0.270mm 2LSUEW-F N polyurethane enameled copper wire, Thermal Class F (155℃). Adopting improved LSUEW low-temperature solderable insulation system, it achieves stable direct soldering at 300~320°C without laser or chemical enamel stripping.

The wire has smooth, uniform enamel film, stable dimensional tolerance, free of scratches and pinhole defects. No self-bonding coating, it cannot be shaped by hot air baking. Optimized for mass production of coils requiring low-temperature soldering process.

FEATURE
  • Low-temperature direct solderable
  • Excellent dielectric performance
  • Good mechanical ductility & winding resistance
  • Moderate chemical resistance
APPLICATION
  • Small power transformer, high-frequency inductors
  • Household appliance control board miniature coils
  • Micro motor winding, vibration motor coils
  • Sensor coils, electromagnetic valve coils
  • Consumer electronics coil components adopting low-temperature soldering process
FAQ
Q1: Can this wire be soldered directly without stripping enamel?

A1: Yes. It adopts low-temperature solderable UEW insulation system. Stable soldering can be achieved at 300–320°C. The polyurethane enamel film will fully decompose and volatilize, forming clean solder joints without chemical or laser stripping. Excessively high temperature should be avoided to prevent wire embrittlement.

Q2: Does this wire come with self-bonding coating?

A2: Yes. It is thermoplastic hot-air self-bonding enameled wire. After coil winding, apply hot air heating, the outer bonding layer will melt and bond adjacent wires together. The coil maintains fixed shape after cooling.

Q3: Can I reheat and adjust coil shape after bonding?

A3: Yes. The thermoplastic bonding layer will soften again when heated to bonding temperature. You can reshape and re-fix the coil, bringing greater flexibility for trial production.

Q4: Can this wire be customized?

A4: Yes. We offer customized wire diameters, insulation grades, bonding characteristics, spool sizes, and packaging to meet specific application requirements.

Q5: What information is required for a quotation?

A5:. To provide an accurate quotation, please share the wire dimensions, insulation type, thermal class, required quantity, packaging requirements, and destination country.
