GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored
GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored
Specifications
Brand Name :
Huaxin or OEM
Model Number :
Outdoor Fiber Optic Cable GYXTW
Certification :
CE,TLC,ISO9001
Place of Origin :
China
MOQ :
2000M
Price :
$1/m
Payment Terms :
L/C,T/T
Supply Ability :
500km PER DAY
Delivery Time :
7-14work days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation
Description

Outdoor GYXTW Single Mode Multimode Loose Tube 2-24 Core Light-Armored Fiber Optic Cable

GYXTW loose tube light-armored cable (GYXTW) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic, filled with a water-resistant filling compound and wrapped with a layer of PSP (Steel Tape) longitudinally; Between the PSP (Steel Tape) and the loose tube a water-blocking material is applied to keep the cable compact and watertight; Two parallel steel wires are placed at the two sides of the steel tape, and the cable is completed with a polyethylene (PE) sheath.

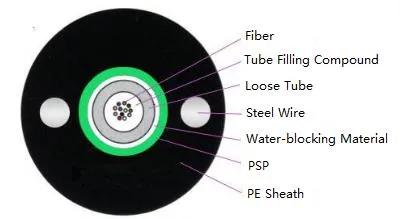

Cable Construction
GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored
Features

  1. Good mechanical and temperature performance
  2. High hydrolysis resistance and high strength loose tube
  3. Good crush resistance and flexibility
  4. High tensile strength ensured by parallel steel wires
  5. Small diameter, light weight and friendly installation

Applications

  1. Core network
  2. Metropolitan area network
  3. Access network

  4. Fiber Optic Characteristics

Parameters Specification
Fiber Type G.652D (9/125μm) G651A1 (50/125μm) G651A1b (62.5/125μm)
Attenuation (dB/km) @850nm ≤ 2.3 ≤ 2.7
@1300nm ≤ 0.6 ≤ 0.6
@1310nm ≤ 0.35
@1550nm ≤ 0.21
Bandwidth (MHz·km) @850nm ≥ 500 ≥ 200
@1300nm ≥ 500 ≥ 500
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength (nm) ≤ 1260


Cable Specifications

Parameters Specification
Fiber Count 2 ~ 12 24
Cable Diameter (mm) 8.0±0.2 8.5±0.3
Approx. Cable Weight (kg/km) 70 80
Tensile Strength (N) Short Term 1500
Long Term 600
Crush Resistance
(N/100mm)		 Short Term 1000
Long Term 300
Min. Bending Radius (mm) Dynamic 20D
Static 10D
Cable Attenuation (dB/km) MM Fiber @850nm ≤ 3.0 (50/125μm)
≤ 3.3 (62.5/125μm)
MM Fiber @1300nm ≤ 1.0
SM Fiber @1310nm ≤ 0.36
SM Fiber @1550nm ≤ 0.22
Operating Temperature (°C) -40 ~ +70
Storage Temperature (°C) -40 ~ +70


Fiber and Loose Tube Color Identification
The individual fiber and loose tubes shall accordance with standard TIA/EIA-598 and the color code as below.

Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored

Factory & Production

GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored

Certifications

GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored

Exhibitions

GYXTW Single Mode Outdoor Multimode Fiber Loose Tube 2-24 Core Light Armored

FAQ

  1. Does this fiber support outdoor use?

    We offer both indoor and outdoor types of fiber optic products. The outdoor optical fiber is armored design with waterproof and UV protection, which is suitable for outdoor environment.

  2. Can the length of optical fiber be customized?

    Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  3. Is the packaging of the product safe?

    We use high-strength anti-shock packaging with anti-static foam or bubble wrap inside to make sure the products are not damaged during transportation.

  4. Do you support bulk purchase?

    Yes, we support bulk purchase and offer preferential price and customized service. Please contact our sales team for a detailed quotation.
