Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable
Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable
Specifications
Brand Name :
Huaxin or OEM
Model Number :
Outdoor Fiber Optic Cable GYTC8A
Certification :
CE,TLC,ISO9001
Place of Origin :
China
MOQ :
2000M
Price :
2000 - 9999 meters $1-$2
Payment Terms :
L/C,T/T
Supply Ability :
500km PER DAY
Delivery Time :
7-14work days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation
Description

Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable

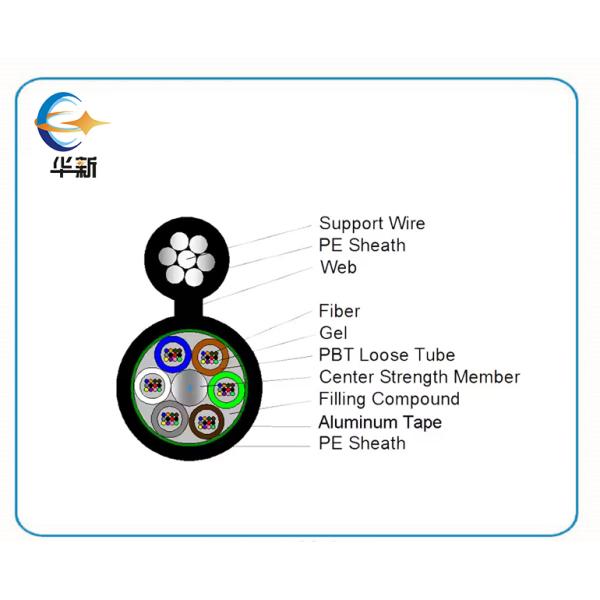

GYTC8A is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Aluminum tape armored and PE outer sheath provide crush resistance and gun shot resistance features. The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers' requirements.


Features
Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs;
Has good mechanical properties and temperature performance;
The loose tube material itself has good hydrolysis resistance and high strength;
The cable core is fully filled to ensure water blocking performance;

Basic Info.

Model NO.
GYTC8A
Connection Structure
None
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
72 Core
Certification
CE,TLC,ISO9001
Brand
Huaxin or OEM
Sheath Material
PE
Structure
Figure 8 Loose Tube
Armor
Aluminum Tape
Fiber
G652/G655/G657
Installation
Aerial/Overhead
Transport Package
customized
Specification
900*900*760
Trademark
Huaxin or OEM
Origin
China
HS Code
8544700000
Production Capacity
500KM/DAY

Fiber count
Structure		 Fibers per tube Loose tube diameter
(mm)		 /
CSM diameter
/pad diameter
(mm)		 Thickness of outer jacket
(mm)		 /
Cable diameter/
Height
(mm)
Cable
Weight
(kg/km)
4 1+5 4 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
6 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
8 1+5 4 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
12 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
24 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 136
36 1+6 6 1.7±0.1 1.8/1.8 1.6±0.1 9.4 ±0.5/16.3 ±0.8 150
48 1+5 12 2.0±0.1 1.4/1.4 1.6±0.1 9.7 ±0.5/16.6 ±0.8 146
72 1+6 12 2.0±0.1 2.0/2.0 1.6±0.1 10.4 ±0.5/17.3 ±0.8 170
96 1+8 12 2.0±0.1 2.2/3.5 1.6±0.1 12.0 ±0.5/19.2 ±0.8 204

Detailed Image

Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable

Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable

Factory & Production

Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable

Certifications

Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable

Exhibitions

Figure 8 Optical Fiber Cable G652D Outdoor GYTC8A G652D Fiber Steel Suspension Wire Armored Aluminum Tape GYTC8A Fig-8 Self-Supporting Fiber Optic Cable

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China,
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
