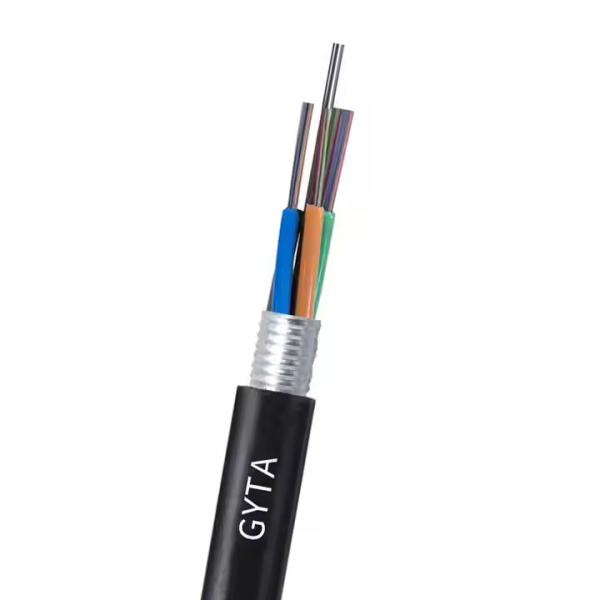

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication
Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication
Specifications
Brand Name :
Huaxin or OEM
Model Number :
Outdoor Fiber Optic Cable GYTS
Certification :
CE,TLC,ISO9001
Place of Origin :
China
MOQ :
2000M
Price :
2000 - 9999 meters $0.20
Payment Terms :
L/C,T/T
Supply Ability :
500km PER DAY
Delivery Time :
7-14work days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation
Description

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication

Designed for high-performance communication networks, the GYTA optical fiber cable is a robust and reliable solution for outdoor and harsh environment applications. Featuring a stranded loose tube structure with light steel tape armor, this cable ensures optimal protection against mechanical stress, moisture, and rodent damage, making it ideal for FTTH (Fiber to the Home), buried installations, and long-distance communication systems.

Basic Info.

Model NO.
GYTA
Connection Structure
SC
Material Shape
Round Wire
Allowed Lateral Pressure
1000n/100mm
Allowed Tensile Strength
1000N<10000N
Core
96
Certification
CE,TLC,ISO9001
Brand
OEM
Sheath Material
PE
Transport Package
Wooden Reel or Customized
Specification
2km per roll or customized
Trademark
Huaxin or customized
Origin
China
HS Code
8544700000
Production Capacity
500km/Day

Product Description

Place of Origin: Shandong, China Brand Name: Huaxin or OEM
Model Number: GYTA Type: Outdoor
Number of Conductors: ≥ 10 Color: black
Core number: 96 Application: duct,underground,aerial
Certification: CE,TLC,ISO9001 Sheath: PE
Packing: Customized Shipping Port: Qingdao

Cable performance

Item Parameters
Loose tube Material PBT
Color Full color spectrum
Filer Material PE
Color Black
CSM Material Phosphating steel wire
Armoured Material Plastic coated aluminum strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 10 times cable diameter
Dynamic 20 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Short term 1500N
Crush Short term 1000N/100mm
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication

Customization options

Customized logo (Min. order: 3 meters)
Customized packaging (Min. order: 6 meters)
Graphic customization (Min. order: 3 meters)

Lead time

Quantity (meters) 1 - 2000 2001 - 10000 > 10000
Lead time (days) 7 14 To be negotiated

Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication

Factory & Production

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication

Certifications

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication

Exhibitions

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable FTTH Buried Optical Cable Wire GYTA for Communication

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China.

2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.

3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.

4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.

5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
