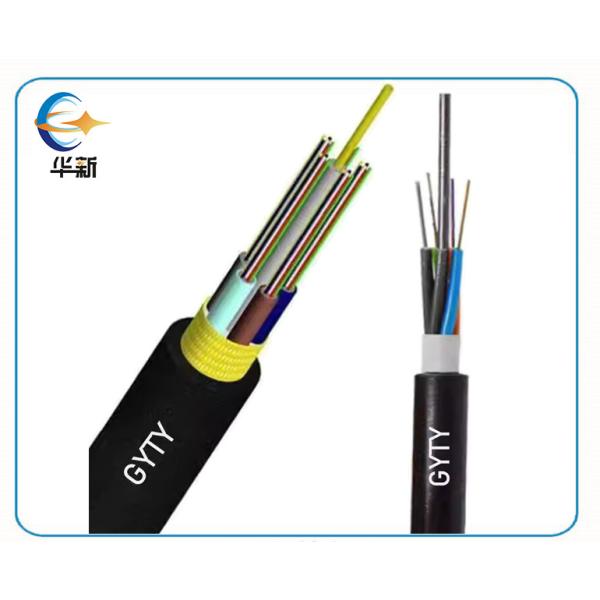

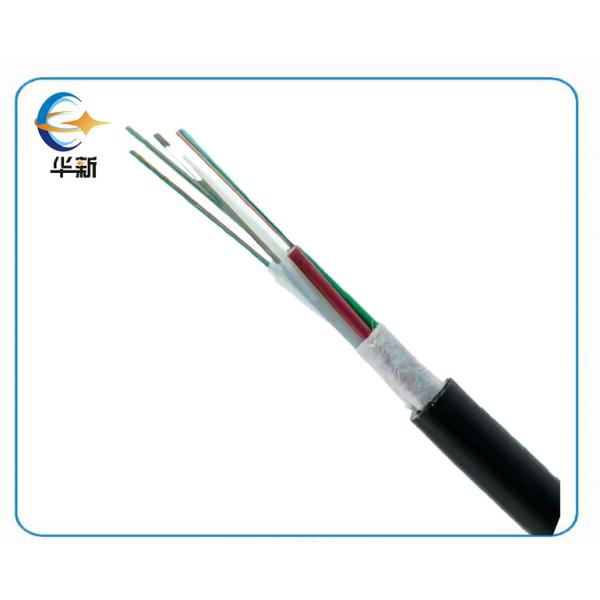

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor
Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor
Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor
Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor
Specifications
Brand Name :
Huaxin or OEM
Model Number :
Outdoor Fiber Optic Cable GYTY
Certification :
CE,TLC,ISO9001
Place of Origin :
China
MOQ :
2000M
Price :
$0.25/M
Payment Terms :
L/C,T/T
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30work days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable for Outdoor

The GYTY Single Mode Fiber Optic Cable is a premium-grade, customizable cable engineered for outdoor applications demanding superior durability, flexibility, and long-term reliability. Designed to thrive in harsh environmental conditions, this cable combines cutting-edge fiber optic technology with a robust structure, making it an ideal choice for high-speed data transmission across expansive networks.

Basic Info.

Model NO.
GYTY
Connection Structure
FC-MTRJ
Material Shape
Flat Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
>10000N
Core
Multicore
Certification
CE,TLC,ISO9001
Brand
OEM
Sheath Material
PVC
Insulation Material
PE
Conductor Material
Optical Fiber
Number of Cores
2--48
The Way
Duct, Aerial
Outer Sheath
PE
Color
Black
Operating Temperature
-40--60
Company
Xingfa Transmission Equipment Co., Ltd
Transport Package
Wooden Drum or Customer Requirement
Specification
GYXY
Trademark
Huaxin or OEM
Origin
Shandong, China
HS Code
8544700000
Production Capacity
500km/DAY

Packaging & Delivery

Package Size
57.00cm * 29.00cm * 22.50cm
Package Gross Weight
12.000kg

Mechanical and Environmental Performance of the Cable

NO. ITEMS TEST METHOD ACCEPTANCE CRITERIA
1 Tensile Loading Test
 #Test method: IEC 60794-1-E1
-. 2700N
-. Cable length: ≥ 50 m		 -. Attenuation increment@1550 nm: ≤ 0.1 dB
-. No jacket cracking and fiber breakage
2 Crush Resistance Test #Test method: IEC 60794-1-E3
-.Long load: 1000 N/100mm
-.Short load: 2000 N/100mm
Load time:1 min of short term load, followed by 10 min of long term load		 -. Attenuation increment@1550 nm: ≤ 0.1 dB
-. No jacket cracking and fiber breakage
3 Impact Resistance Test #Test method: IEC 60794-1-E4
-.Impact height: 1 m
-.Impact energy: 10 J with striking surface radius of 300 mm
-.Impact point: ≥ 5
-.Impact frequency: ≥ 3/point		 -. Attenuation increment@1550 nm: ≤ 0.1 dB
-. No jacket cracking and fiber breakage
4 Repeated Bending #Test method: IEC 60794-1-E6
-.Mandrel diameter: 20 D (D = cable diameter)
-.Bent backwards and forwards through angles: 180°
-.Bending frequency: 25 times
-.Bending speed: 2s/time		 -. Attenuation increment@1550 nm:≤ 0.1 dB
-. No jacket cracking and fiber breakage
5 Torsion Test #Test method: IEC 60794-1-E7
-.Length: 2 m
-.Tension : 50 N
-.Angle: ±180 degree
-.Frequency: ≥ 10/point		 -. Attenuation increment@1550 nm: ≤ 0.1 dB
-. No jacket cracking and fiber breakage
6 Water Penetration Test #Test method: IEC 60794-1-F5B
-.Height of pressure head: 1 m
-.Length of specimen: 3 m
-.Test time: 24 hours		 -. No leakage through the open cable end
7 Temperature Cycling Test #Test method: IEC 60794-1-F1
-.Temperature steps: + 20ºC,- 40ºC,+ 70ºC,+ 20ºC
-.Testing Time: 24 hours/step
-.Cycle index: 2		 -. Attenuation increment@1550 nm: ≤ 0.1 dB
-. No jacket cracking and fiber breakage
8 Drop Performance
 #Test method:IEC 60794-1-E14
-.Testing length: 30 cm
-.Temperature range: 70 ±2ºC
-.Testing Time: 24 hours		 -. No filling compound drop out

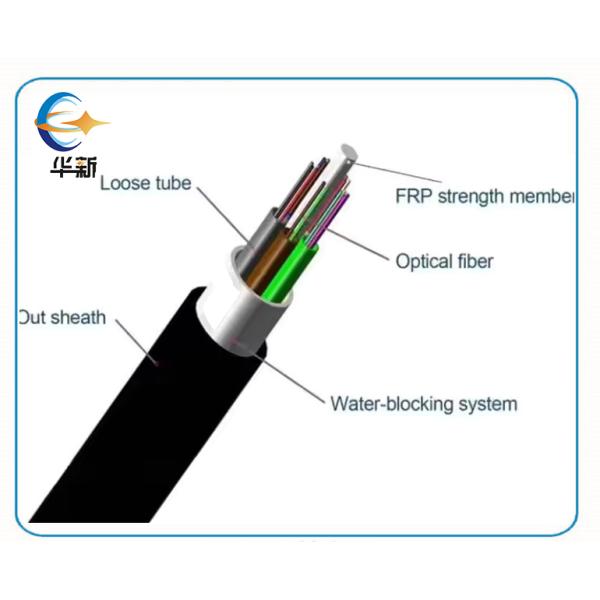

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor

Fiber Optical Cable bending radius
Static bending: ≥ 12.5 times than cable out diameter
Dynamic bending: ≥ 25 times than cable out diameter.
Reference Standard
ITU-T G.652 : Characteristics of a single-mode optical fibre and cable
IEC 60794-4-2018--Optical fibre cables. Sectional specification. Aerial op.

Package
Not allowed two length units of cable in one drum, two ends should be sealed, Two ends should be packed inside drum, reserve length of cable not less than 3 meters.4km/roll Wooden Drum
Mark
According to customer requirement

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor

Factory & Production

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor

Certifications

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor

Exhibitions

Customization GYTY Single Mode Fiber Optic Cable High Rank Cable For Outdoor

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China,
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
