GYTC8S Aerial Self-Supporting Unitube 2 6 12 24 Core Outdoor Optic/Optical Fiber Cable

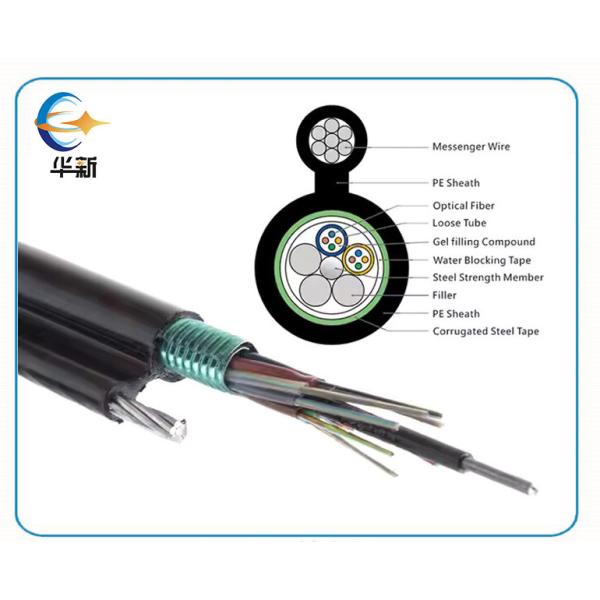

OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a steel wire or FRP central strength member into a compact and circular cable core.The Corrugated Steel Tape (CST) is longitudinally applied over the cable core. The cable is completed with Polyethylene (PE) jacket.
FEATURES & APPLICATIONS
Corrugated steel tape armoring for water & rodent resistance, optimised impact and crush resistance
Stranded steel wires, easily to install
Suitable for outdoor aerial applications
ORDERING INFORMATION
Choice of fibers: 2 to 144 fibers, OS1/OS2/OM1/OM2/ OM3/OM4
Sheath: PE
Drum Length: 2/3/4km (Optional)
| G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20ºC) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
|
|
Packing and Transportation
Cable in stock, ship same day.
1 or 2km for a wooden roll.
One roll packed with carton.
Other length is also avaiable without MOQ.
