Specifications
Brand Name :
HUATAO
Model Number :
HT-SHARPENER25
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 sets
Price :
1000-20000USD /set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 SET per month
Delivery Time :
15-30days
Packaging Details :
Wooden Box
Product Name :
Knife Grinder
Grinding Tools :
200*100*32mm
Grinding Tolerance :
＜0.05mm
Grinding Speed :
17m/MIN
Voltage :
380V
Frequency :
50Hz
Working Length :
2500mm
Application :
Crusher Blade Sharpen
Description

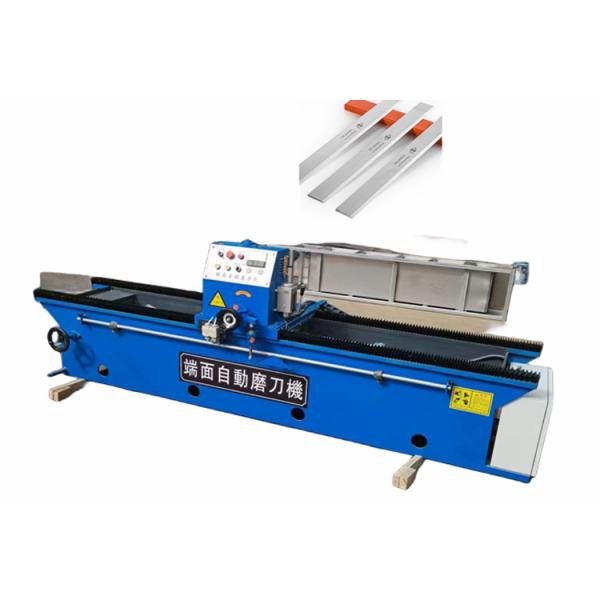

Automatic Knife Sharpener Machine For High Precision Grinding

Blade Sharpener Machine Description:

This knife grinding is a semi automatic spline grinder with grinding reciprocating at stepless speed changing and is mainly used for grinding the blades of veneer slicer and clipper and a variety of planer tools and plane iron, etc., which is a service machine tool that is used most widely in wood processing industry. When operating, please make sure you have been acquainted with the performance and operating method of the machine for proper operation and adjustment and personal safety, and prolonging the service life and improving the working accuracy of the machine.

Automatic Knife Sharpener Machine For High Precision Grinding

Blade Sharpener Machine Specification:

Knife grinding
Model MMD1500 MMD3000
Max working length 1500mm 3200mm
Max cutting width 200mm 200mm
Wheel rotation rate 1400r/min 1400r/min
Wheel diameter 200-250mm 200-250mm
Total power 6.47kw 6.47kw
Tilting angle of saw blade 0-45degree 0-45degree
Adjusting angle of magnetic chuck ±90 degree ±90 degree
Overall dimensions 3800*1250*1300mm 6500*1250*1300mm
Net weight 2300kg 3400kg

Blade Sharpener Advantage:

1. Widely used for all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc.

2. High-quality steel weld ,high strength and rigidity.

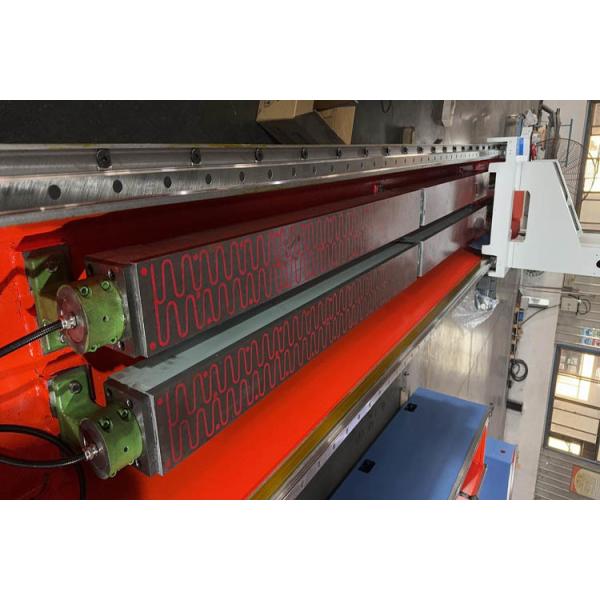

3. The worktable use the electro magnetic chuck, so it's convenience to clamp knife.

4. Easy to adjust the angle by worm gear.

5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
