Specifications
Brand Name :
HUATAO
Model Number :
HT-7120 Blade sharpener
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
1000-20000USD/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
15-30days
Packaging Details :
Wooden Box
Product Name :
HT-7120 Blade sharpener
Voltage :
380V
Max Working Lengt :
2000mm
Grinding Wheel :
200*100*32mm
Gringing Speed :
17m/min
Total Power :
6Kw
Application :
Straight Blade Sharpen
Guide Wheel :
Linear Guide Rail
Description

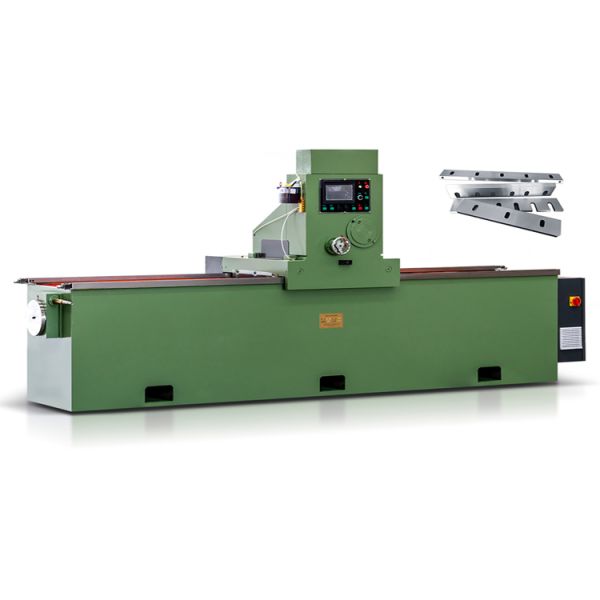

High Precision Blade Sharpener Machine For Blade Sharpening

This knife grinding is a semi automatic spline grinder with grinding reciprocating at stepless speed changing and is mainly used for grinding the blades of veneer slicer and clipper and a variety of planer tools and plane iron, etc., which is a service machine tool that is used most widely in wood processing industry. When operating, please make sure you have been acquainted with the performance and operating method of the machine for proper operation and adjustment and personal safety, and prolonging the service life and improving the working accuracy of the machine.This knife grinding is a semi automatic spline grinder with grinding reciprocating at stepless speed changing and is mainly used for grinding the blades of veneer slicer and clipper and a variety of planer tools and plane iron, etc., which is a service machine tool that is used most widely in wood processing industry. When operating, please make sure you have been acquainted with the performance and operating method of the machine for proper operation and adjustment and personal safety, and prolonging the service life and improving the working accuracy of the machine.

High Precision Blade Sharpener Machine For Blade Sharpening

Blade Sharpeper Machine Specification:

Knife Grinding
Model MMD1500 MMD3000
Max working length 1500mm 3200mm
Max cutting width 200mm 200mm
Wheel rotation rate 1400r/min 1400r/min
Wheel diameter 200-250mm 200-250mm
Total power 6.47kw 6.47kw
Tilting angle of saw blade 0-45degree 0-45degree
Adjusting angle of magnetic chuck ±90 degree ±90 degree
Overall dimensions 3800*1250*1300mm 6500*1250*1300mm
Net weight 2300kg 3400kg

Knife Grinding Machine Advantage:

Knife Grind: Precisely sharpens long knives up to 1500mm.

High-Strength Body: Durable gantry body for long-lasting performance.

Electromagnetic Chuck: Easy and convenient knife clamping.

Adjustable Worktable: Flexible angle adjustment for optimal sharpening.

Inverter Control: Smooth horizontal and vertical grinding head speed adjustment.
