Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
Specifications
Brand Name :
HUATAO
Model Number :
HT-Sharpener
Place of Origin :
China
MOQ :
1
Price :
3000-20000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per montth
Delivery Time :
30 days
Packaging Details :
Wooden Box
Name :
Blade Sharpener
core components :
Motor, Bearing, PLC, Gearbox
voltage :
220V/380V 50Hz
Application :
Various types of cutting tools
Grinding width :
180mm-290mm
Grinding length :
1500mm-9000mm
Description

Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine

Sharpener Specification:

The knife grinder for crusher blade is a precision machine designed to sharpen and maintain the blades used in veneer peeling. This machine is equipped with advanced features such as a high-precision grinding wheel, automatic knife feed, and precise angle adjustment system to ensure consistent and accurate sharpening results.

Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine

Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:

Name and Model MZ6115 MZ7115
Key Words Blade Sharpener
Maximum grinding length 1600mm 1600mm
Length * width 1550*180(200)mm 1550*180(200)mm
Adjustable angle of operating cutter table ±90° ±90°
Power of grinding head motor 3KW 5.5kw
Gross power 5.5KW 6kw
Reciprocating speed of grinding speed 14m/min 17m/min
External dimension 3000*1000*1200mm 3850*1300*1300mm
Total weight 1200kg 1800kg
Grinding head drive mode Belt transimission Belt transimission

Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...

Grinding Machine Feature:

1. PLC control system can be used to set the number of automatic cycles, the number of automatic feed times, the amount of feed.

2. Adopts national standard double steel plate and lining stiffener, stable, free from vibration.

3. Water tank for knife sharpening to avoid sparks and to cool down the machine, helping to prolong its service life.

4. The grinding head adopts hoisting device, which makes the replacement of the grinding wheel more convenient and rapid, and improves the operational efficiency.

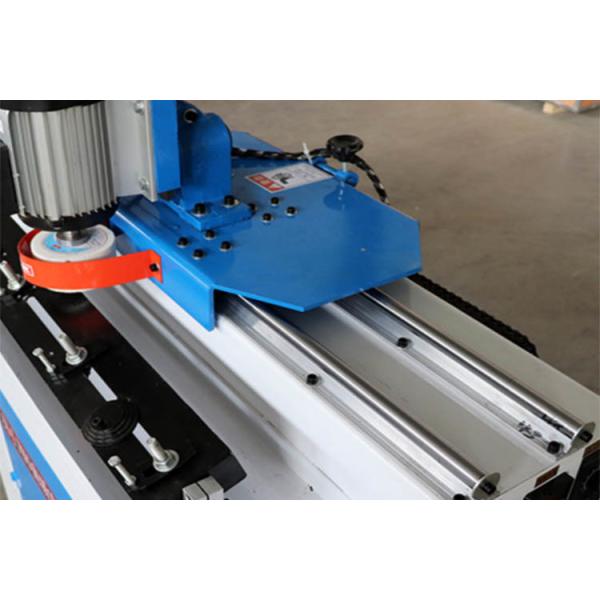

5. The machine tool adopts square linear guide rail.

6. Adopts Taiwan Shangyin Precision Linear Guide Rail

Woodworking Machinery Knife Grinder Blade Sharpening and Grinding Machine
