CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade
Specifications
Brand Name :
HUATAO
Model Number :
HT-Sharpener
Place of Origin :
China
MOQ :
1
Price :
3000-20000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per montth
Delivery Time :
30 days
Packaging Details :
Wooden Box
Name :
Blade Sharpener
core components :
Motor, Bearing, PLC, Gearbox
voltage :
220V/380V 50Hz
Application :
Various types of cutting tools
Grinding width :
180mm-290mm
Grinding length :
1500mm-9000mm
Description

CNC Plywood Straight Knife Sharpening Knife Grinding Machine For Blade

Grinding Machine Specification:
We have been manufacturing knife sharpening machines for over 20years. Our professional products are supplied to machinery blade factory, mining machinery and other large enterprises demand heavy reinforced grinding machine, suitable for plane cutting wood industry factory, spinning factory and processing knife department requirements of big small and medium-sized precision grinding machines and so on. You can trust our product quality and we will give you the best price.

Main parameter of blade sharpening machine / Knife grinder / knife grinding machine knife sharpener machine:

Key workds Blade Sharpener
Model Working range(mm) Moving motor Wheel Size Working Angle
HT-2070 0-700 90YSJ-4 GS60 125*95*32*12 0-90
HT-20100 0-1000 90YSJ-4 GS60 125*95*32*12 0-90
HT-20120 0-1200 90YSJ-4 GS60 150*110*47*14 0-90
HT-20150 0-1500 90YSJ-4 GS60 150*110*47*14

0-90

Suitable for: High-precision vertical slicing floorboard factory, specialized large-scale processing factory, hardware accessory factory, board processing factory, printing plant...

Grinding Machine Feature:

1. PLC control system can be used to set the number of automatic cycles, the number of automatic feed times, the amount of feed.

2. Adopts national standard double steel plate and lining stiffener, stable, free from vibration.

3. Water tank for knife sharpening to avoid sparks and to cool down the machine, helping to prolong its service life.

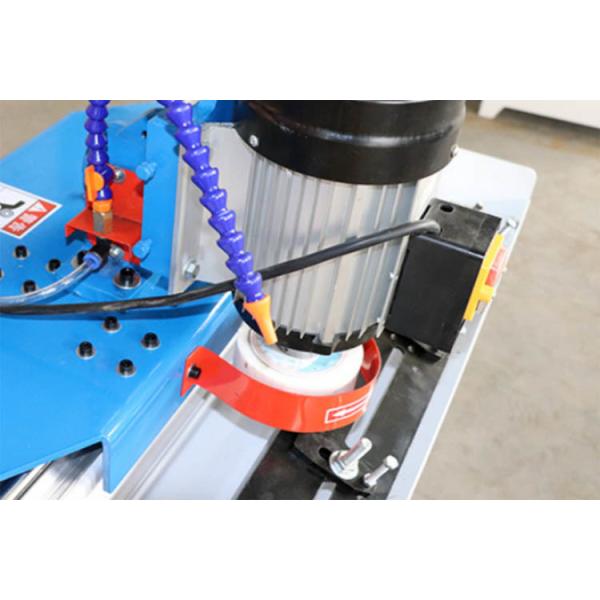

4. The grinding head adopts hoisting device, which makes the replacement of the grinding wheel more convenient and rapid, and improves the operational efficiency.

5. The machine tool adopts square linear guide rail.

6. Adopts Taiwan Shangyin Precision Linear Guide Rail
