Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Blade Grinder For Waste Plastic Crusher Blade Grinding
Specifications
Brand Name :
HUATAO
Model Number :
Blade Sharpener30
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
1000-20000 usd/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10SETS PER MONTH
Delivery Time :
15-30days
Packaging Details :
Wooden BOX
Product Name :
Blade Sharpener Machine
Grinding Wheel :
200*100*32mm
Grinding Tolerance :
＜0.05mm
Grinding Speed :
17m/min
Grinding Length :
2800mm
Voltage :
380V
Frequency :
50Hz
Founction :
Crusher Blade Sharpen
Description
Blade Grinder For Waste Plastic Crusher Blade Grinding

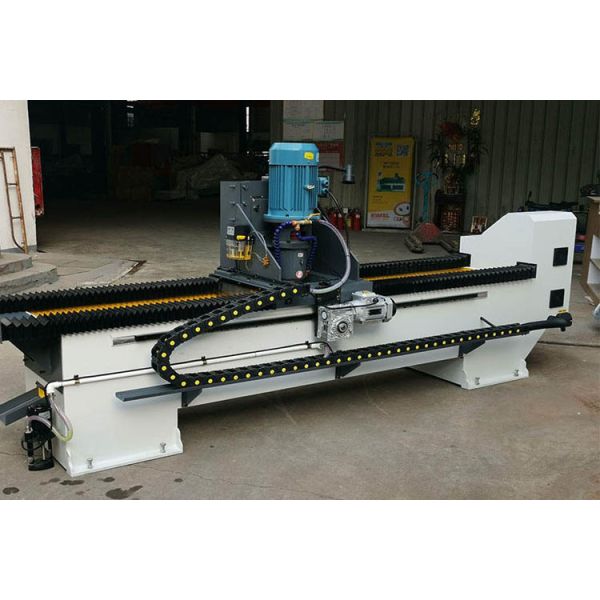

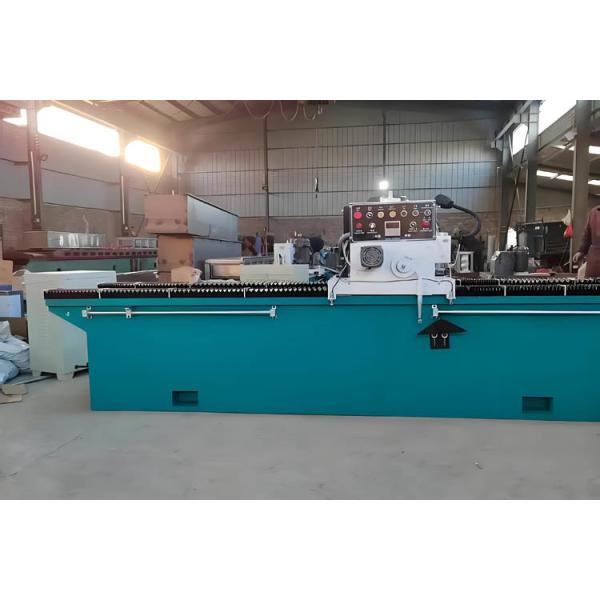

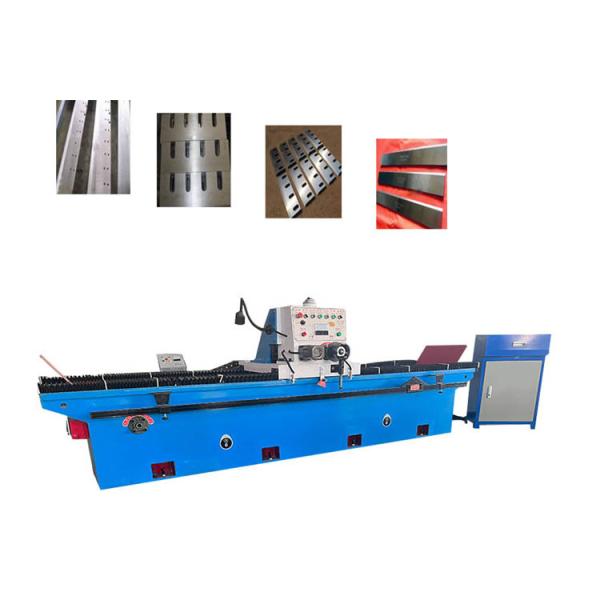

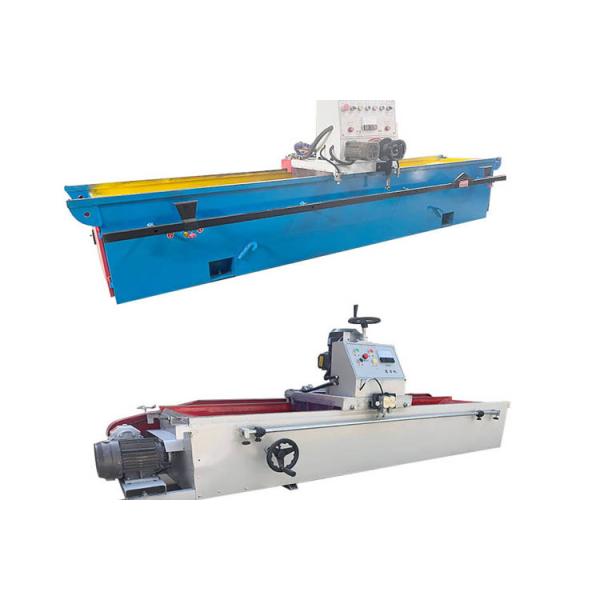

Blade Sharpener Machine Description:

The machine adopts double-layer national standard profile steel plate welding and vibration failure treatment. It is equipped with ultra-strong electromagnetic chuck. Put the blade on the workbench and open the chuck switch. The blade will be firmly adsorbed on the workbench, saving the time of pressing the blade with bolts. The blade grinding is smoother, and the straightness is better. In the process of installing the blade grinding, you can carry out grinding wheel grinding compensation by yourself without personnel to realize automatic grinding, saving about 40 minutes of labor.

Knife Grind: Precisely sharpens long knives up to 1500mm.

High-Strength Body: Durable gantry body for long-lasting performance.

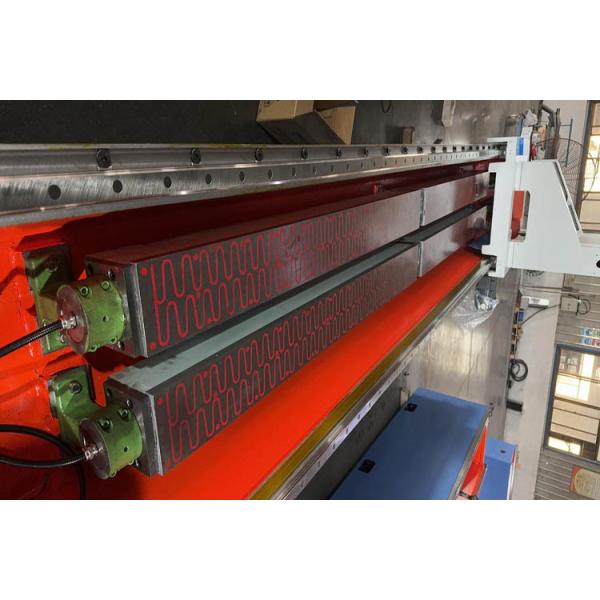

Electromagnetic Chuck: Easy and convenient knife clamping.

Adjustable Worktable: Flexible angle adjustment for optimal sharpening.

Inverter Control: Smooth horizontal and vertical grinding head speed adjustment.

Blade Grinder For Waste Plastic Crusher Blade Grinding

Blade Sharpener Machine Specification:

knife grinding
Model HT1500 HT3000
Max working length 1500mm 3200mm
Max cutting width 200mm 200mm
Wheel rotation rate 1400r/min 1400r/min
Wheel diameter 200-250mm 200-250mm
Total power 6.47kw 6.47kw
Tilting angle of saw blade 0-45degree 0-45degree
Adjusting angle of magnetic chuck ±90 degree ±90 degree
Overall dimensions 3800*1250*1300mm 6500*1250*1300mm
Net weight 2300kg 3400kg

Blade Grinder Advantage:

1. Widely used for all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc.

2. High-quality steel weld ,high strength and rigidity.

3. The worktable use the electro magnetic chuck, so it's convenience to clamp knife.

4. Easy to adjust the angle by worm gear.

5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.

Blade Grinder For Waste Plastic Crusher Blade Grinding
