Specifications
Brand Name :
HUATAO
Model Number :
HT-Sharpeper21
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
1000-20000 usd/set
Supply Ability :
10 set / month
Packaging Details :
Wooden Box
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
15-30days
Product Name :
HT-Blade sharpener
Grinding Wheel :
200*100*32mm
Grinding Speed :
17M/MIN
Voltage :
380V
Frequency :
50Hz
Working Length :
1600mm
Application :
Blade Sharpen
Tolerance :
≤0.05mm
Description

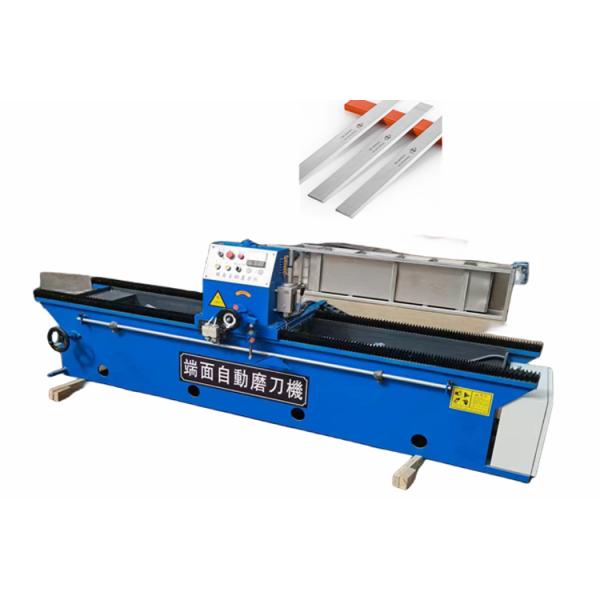

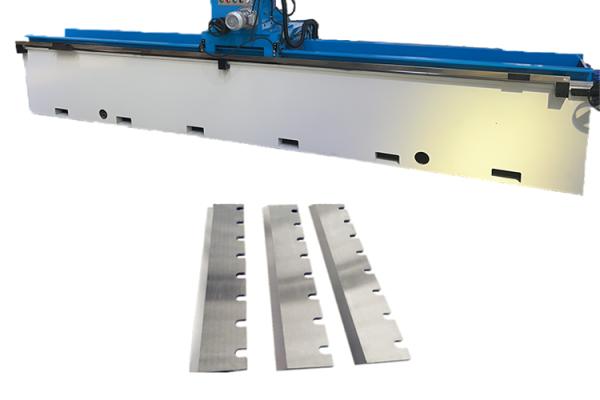

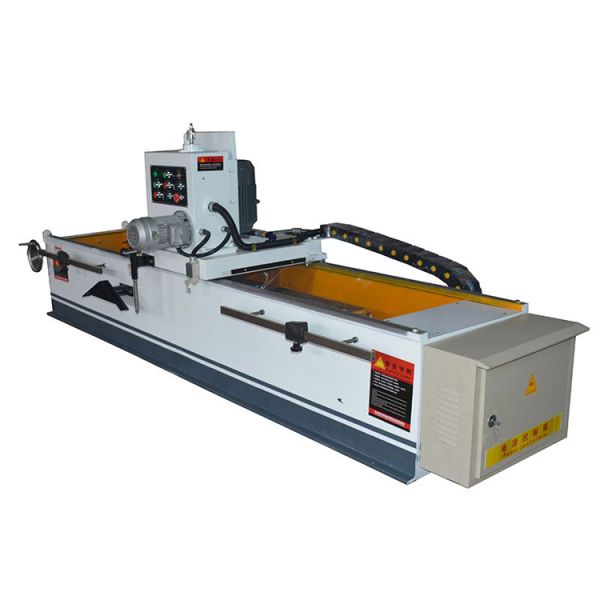

High Quality Blade Sharpener Machine For The Corrugated Cardboard Blade
Blade sharpener Machine Description:
This knife grinder machine is mainly used in straight blade cutting tool in different angles, suitable for all kinds of cutter tools of plywood, furniture, printing, textile industry etc. It is also used to the oblique opening of high speed tool steel.
It is also used to the oblique opening of high speed tool steel. The machine tools consists of five parts:Machine bodyframe,Sliding plate,Motor,Grinding head,Electrical parts.
Each component has compact structure,rational and beautiful layout can make sure the same height and weight and express its unique advantages, ideal choice for Veneer Plywood Factory and straight blade knives manufacturers.
High Quality Blade Sharpener Machine For The Corrugated Cardboard BladeHigh Quality Blade Sharpener Machine For The Corrugated Cardboard Blade
Blade Sharpener Machine Specification:
KNIFE GRINDING MACHINE
Max grinding length 1600mm
Working-table width 550*180(200)mm
Grinding head motor 4kw
Lifting motor 0.55kw
Wheel rotation rate 1400r/min
Speed of sliding plate Variable speed
Grinding wheel size Φ200*Φ100*Φ32mm
Work voltage 380V
Adjustable angel of work table ±90°
Driving method of grinding head Transmission
Total weight 1800kg

MAIN FEATURES OF BLADE SHARPENER:

1) The main parts of the machine are cast of steel and welded as little as possible due to the contact with water during machine working.

2)The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.

3) The rail use linear guide and ensure the steady horizontal movement of grinding head .

4) The machine is easy to operate, high precision, save the time of Grinding knife in the factory, and improve the production efficiency in the factory.

High Quality Blade Sharpener Machine For The Corrugated Cardboard Blade
