DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
Specifications
Output :
13HP
Cylinder arrangement :
four boxer
Propeller Recommended :
28*10,28*8 ,32*8 ,27*10 29*10,29*10
Fuel :
Gasoline + 2T synthetic oil
Spark Plug :
DLA CM6,Iridium
private mold :
No
Place of Origin :
Shandong, China
speed range :
1300-6600 RPM
Cylinder Bore/ Stroke :
37MM/30MM

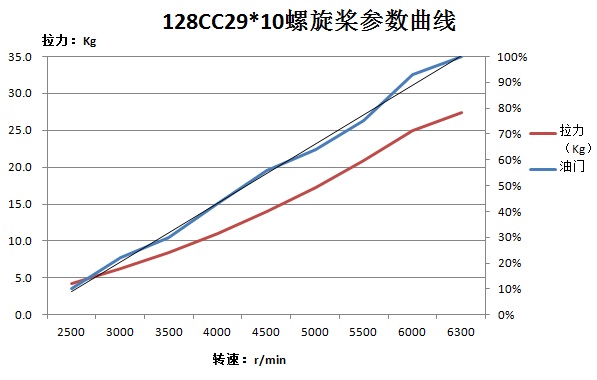

Pulling force :
30KG/1000 Meter altitude
Brand Name :
DLA
MOQ :
2 sets
Model Number :
DLA128
Price :
$1,499.99-1,599.99 / set
Description
Product Description
This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 18 KGS. Its crankcase,
crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, 2 cylinders with independent ignition and independent fuel feeding.

For detailed information please contact sales:
Email: info@zelynuav.com
whatsapp/wechat: +86 17392281782
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine
Specification
Item
Value
Model Number
DLA128
Output
13HP
Cylinder Bore/ Stroke
37MM/30MM
speed range
1300-6600 RPM
Pulling force
30KG/1000 Meter altitude
Cylinder arrangement
four boxer
Fuel
Gasoline + 2T synthetic oil
Lubrication Ratio
25:1~30: 1(trial run) 40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil
ompression Ratio
7.6:1
Propeller Recommended
28*10,28*8 ,32*8 ,27*10 29*10,29*10
Spark Plug
DLA CM6,Iridium
Voltage
6.6v-8.4v, 2 LiPo batteries recommended.
Weight
Main engine: 3260g Exhaust pipe: 126*2g Ignition: 180g Standoffs: 22*4g
Customization
According to Customer’s need and specifications
