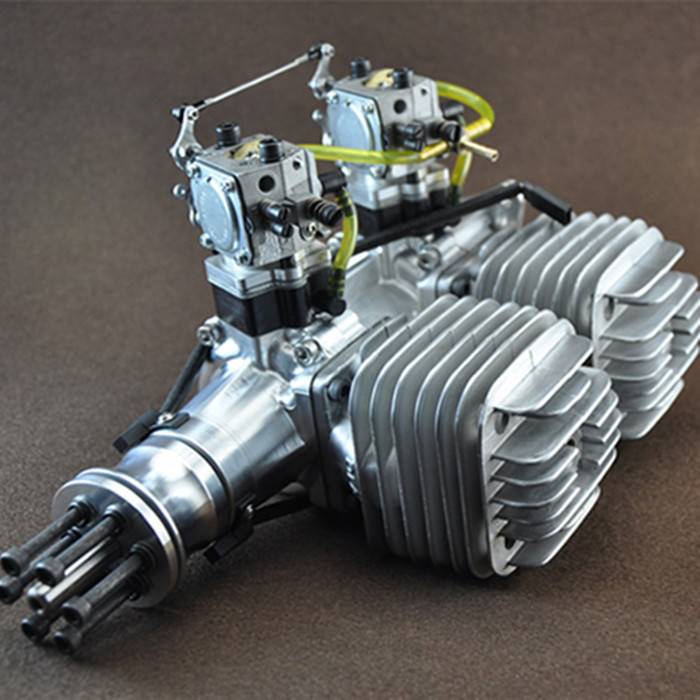

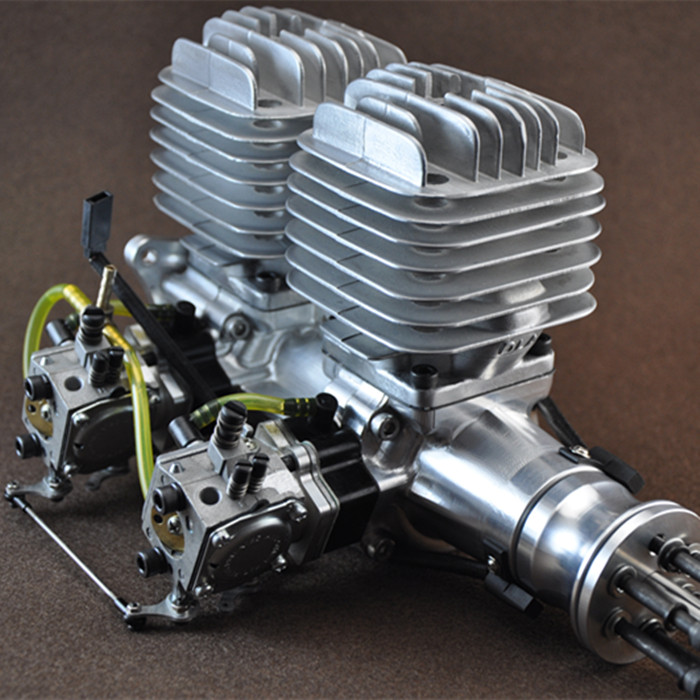

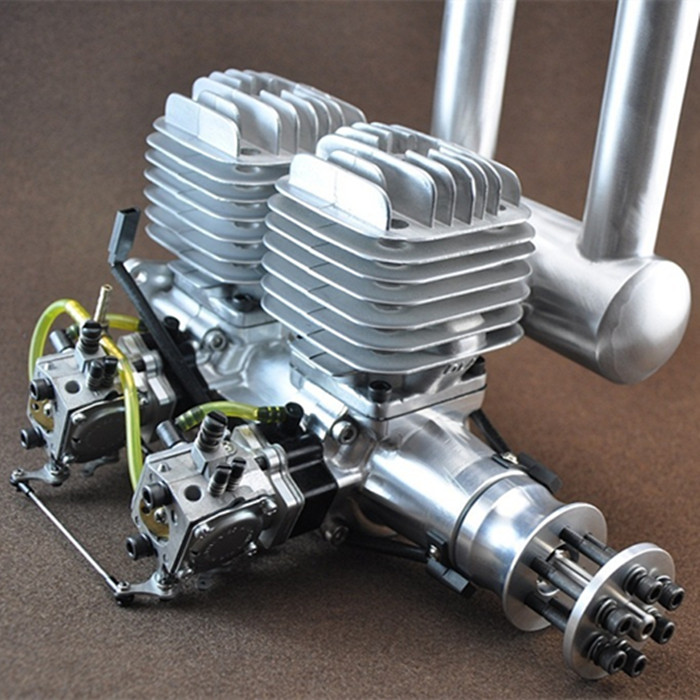

DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
Specifications
Cylinder Bore/ Stroke :
46MM/35MM
Spark Plug :
DLA CM6,Iridium
Price :
$799.99-899.99 / set
Brand Name :
DLA
Output :
12HP
Cylinder arrangement :
twin boxer
speed range :
1300-6500 RPM
MOQ :
2 sets
Place of Origin :
Shandong, China
Weight of Exhaust :
250g
Propeller Recommended :
29*10,28*10 29*8 28*8 27*10, 28*10 recommended
private mold :
No
Model Number :
DLA116
Pulling force :
27KG/1000 Meter altitude
Fuel :
Gasoline + 2T synthetic oil
Description
Product Description
This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 20 KGS. --Its crankcase,
crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. --With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, 2 cylinders with independent ignition and independent fuel feeding.


For detailed information please contact sales:
Email: info@zelynuav.com
whatsapp/wechat: +86 17392281782
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
DLA116 DLA 116 RC Model Twin Boxer Gasoline Engine for RC Fixed-Wing Airplane Aircraft UAV Engine
Specification
Item
Value
Model Number
DLA116
Performance
12HP
Cylinder Bore/ Stroke
46MM/35MM
speed range
1300-6500 RPM
Pulling force
27KG/1000 Meter altitude
Cylinder arrangement
twin boxer
Fuel
Gasoline + 2T synthetic oil
Lubrication Ratio
Gasoline + 2T synthetic oil Lubrication Ratio 25:1~30: 1(trial run) 40: 1~50:1(normal flying) 92# 93# gasoline 2T
Compression Ratio
8 : 1
Propeller Recommended
29*10,28*10 29*8 28*8 27*10, 28*10
recommended Spark Plug
DLA CM6,Iridium
Voltage
6.6v-8.4v, 2 LiPo batteries recommended.
Weight
Main engine: 2460g Exhaust pipe: 127*2g Ignition: 180g standoffs: 22*4g
Customization
According to Customer’s need and specifications

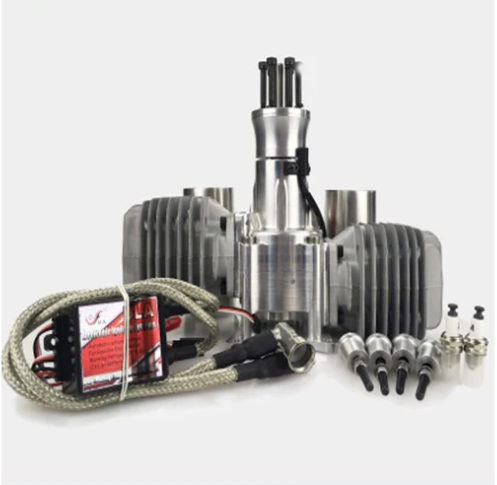

Package include:

1 PCS Main Engine
2 PCS Ignition
1 PCS Spark Plug
1 PCS Exhaust Pipe
4 PCS Standoffs
1 PCS Manual
1 PCS Test report
