DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
Specifications
private mold :
No
Output :
6.0HP
Lubrication Ratio :
25:1 50:1(normal flying)
Price :
$439.99-499.99 / set
Pulling force :
14.5KG/1000 Meter altitude
Fuel :
Gasoline + 2T synthetic oil
Compression Ratio :
8:1
Place of Origin :
Shandong, China
Model Number :
DLA58
Brand Name :
DLA
Cylinder arrangement :
Single
Cylinder Bore/ Stroke :
46MM/35MM
speed range :
1600-6700 RPM
Exhaust amount :
58cc
MOQ :
2 sets
Description
Product Description

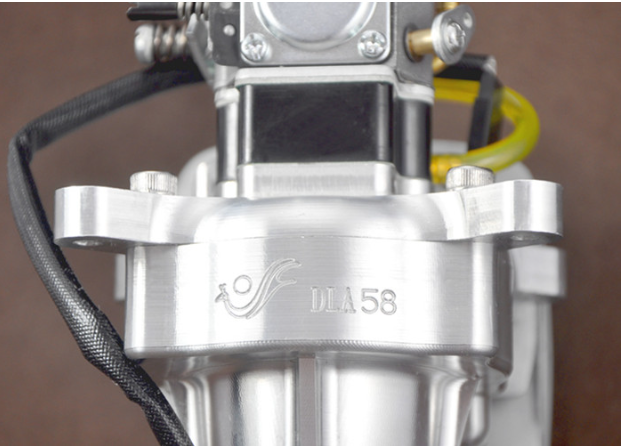

This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 10 KGS. --Its crankcase,
crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. --With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability,strong power performance.


For detailed information please contact sales:
Email: info@zelynuav.com
whatsapp/wechat: +86 17392281782
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine
DLA 58 DLA58 CNC Processed 58CC Engine for RC Model Airplane UAV Engine

Specification.

Exhaust amount: 58cc

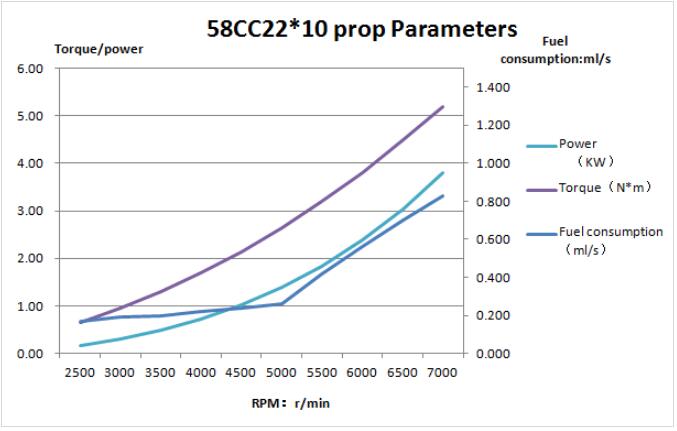

Output: 6.0HP
Cylinder Bore/ Stroke: 46MM/35MM
speed range: 1600-6700 RPM

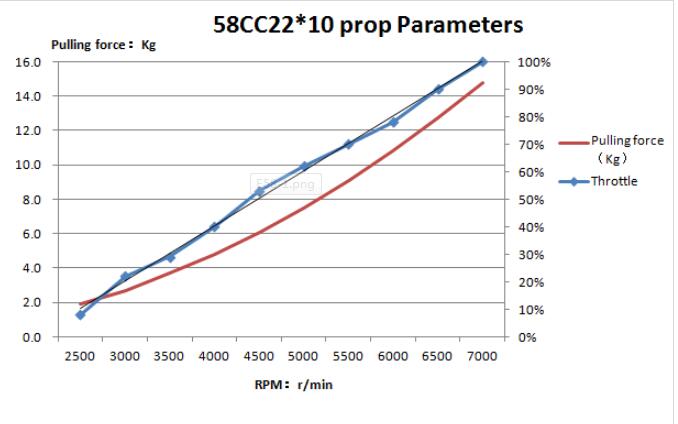

Pulling force: 14.5KG/1000 Meter
altitude Cylinder arrangement: Single
Fuel: Gasoline + 2T synthetic oil
Lubrication Ratio: 25:1~30: 1(trial run) 40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil
Compression Ratio: 8:1
Propeller Recommended: 22*10,23*10 23*8 24*8
Spark Plug: DLA CM6,Iridium
Voltage: 6.6v-8.4v, 2 LiPo batteries recommended.

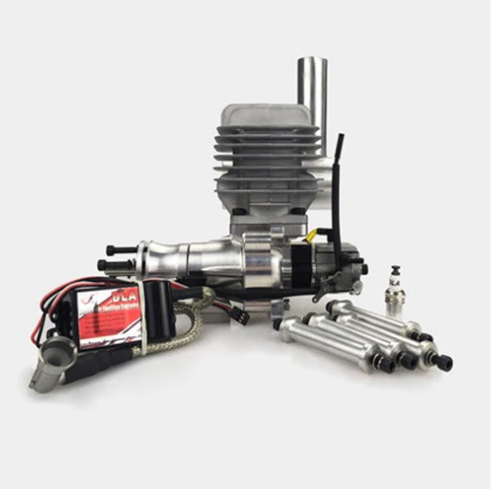

Weight: Main engine: 1400g ,
Exhaust pipe: 127g , Ignition: 133g ,standoffs: 32*4g
Customization: According to Customer’s need and specifications

About shipping & delivery:

1.Please ensure that you have provided complete delivery address,correct phone number and postal code. 2.We will arrange the shipment within 2-5 days after you place order,the tracking information will be updated in 7 days. 3.If the item is more than 2kg or 1 meter,the following shipping methods are not available:China Post Registered Air Mail,China Post Ordinary Small Packet Plus,ePacket. 4.The shipping might be delayed if there is uncontrollable factor,such as bad weather,special festivals,etc. 5.If the package has arrived with badly damage,please refuse to sign for it and take a photo of the damaged package,then contact us immedately!Thank you for your cooperation.
