Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Specifications
Gear Teeth :
25T
Price :
$17-29.99 / piece
Control Angle :
120 Degree
Weight :
59.3g (2.09oz)
Connector Wire Length :
JR 265 mm (10.43in)
Dimensions :
40.5X20.5X36.5mm /1.59X0.80X1.43in
MOQ :
2 pieces
Place of Origin :
Guangdong, China
Brand Name :
JX
private mold :
Yes
Bearing :
2BB
Description

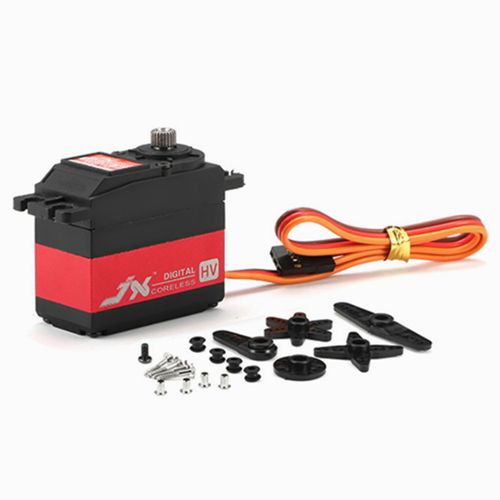

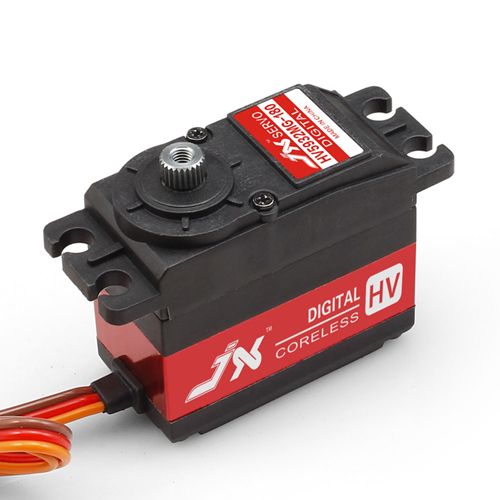

JX PDI-HV5932MG 180°Large Torque 32KG High Precision Metal Gear Digital Coreless Servo For Rc Plane Robot Car Boat Robot

Features

-- High performance digital high voltage coreless standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Dual ball bearings
-- CNC aluminium middle hull

Product Details

Dead band: 1μs
Maximum pulse width: 500-2500us
Angle range: actual angle 172±2°
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/85°
Operating Speed (8.4V): 0.1sec/85°
Stall Torque (6.0V): 25.2 kg.cm (239.55oz/in)
Stall Torque (8.4V): 32.3 kg-cm (281.89 oz/in)

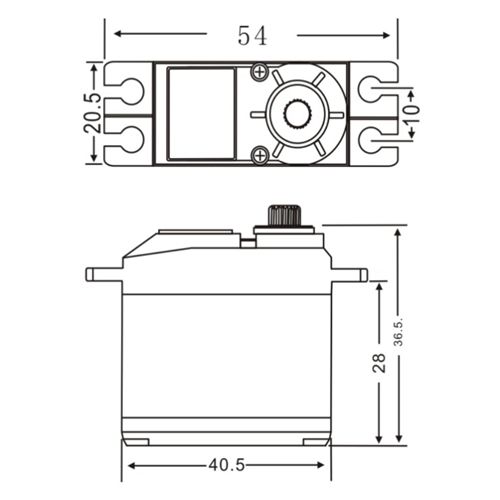

Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Gear Teeth:25T
Control Angle:120 Degree
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

Item Packing

1 x PDI-HV5932MG 180° Servo
1 x Fittings Set

Detailed Images

Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
Hot Sales JX PDI-HV5932MG 180Large Torque 32KG High Precision Metal Gear Digital Coreless Servo for Rc Plane Robot Car Boat
