Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Specifications
private mold :
Yes
compatible brand :
/
Latency :
Min 110ms
Price :
$780-1,128 / piece
Air Unit/Controller :
EMMC 4GB
Brand Name :
HEX
Material :
Metal
Frequency Band :
2.4GHz ISM
type :
/
MOQ :
2 pieces
Transmission Range :
FCC 20km CE/SRRC 12km
Resolution :
720p@30fps 1080p@30/60fps
Place of Origin :
China, Guangdong China
Interference recovery :
1s
Description
Product Features
compatible brand/
Frequency Band2.4GHz ISM
MaterialMetal
place of originGuangdong, China
type/
LatencyMin 110ms
Interference recovery1s
brand nameHEX
Air Unit/ControllerEMMC 4GB
private moldYes
Transmission RangeFCC 20km CE/SRRC 12km
Resolution720p@30fps, 1080p@30/60fps
Hot HEX Herelink V1.1 5.5in Screen 2.4GHz 20KM Long Range HD Digital Video Telemetry Transmission System 720P 1080P 30/60fps

HEX Herelink V1.1 5.5in screen 2.4GHz 20KM Long Range HD Digital Video telemetry Transmission System HDMI 720P 1080P 30/60fps

Features

*All in one: Telemetry, Video, and control
*Up to 20KM in FCC mode and 12KM in CE mode
*2.4Ghz frequency
*UART Telemetry
*RC Protocol: SBUS, iBUS, ETC.
*Mavlink compatible
*Touch screen
*HDMI input x2 for 1080P video transmission @ 60fps
*APP QGround control, and API for development.
*WIFI, Bluetooth and USB to connect with other devices

Product Details

Hardware specification
- Processor:SoC - Pinecone S1,AP: 4 x large core, Cortex A53, 2.2GHz,4 x small core, Cortex A53, 1.4GHz,GPU: 4 core,
Mali-T860,SDR: A7 DSP
- Storage:Air Unit LPDDR3 1GB,Controller LPDDR3 2GB
- Air Unit/Controller:EMMC 4GB
- Transmission Range:FCC 20km CE/SRRC 12km
- Latency:Min 110ms
- Resolution:720p@30fps, 1080p@30/60fps
- Frequency Band:2.4GHz ISM
- Receive sensitivity:-99dBm@20MHz BW
- Interference recovery:< 1s

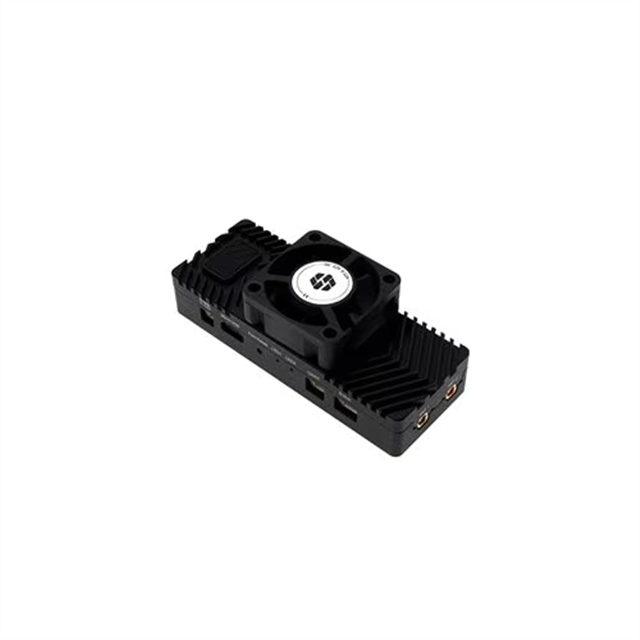

Air Unit
- Housing:Aluminum
- Weight:95g (w. antennas)
- Dimension:78.5x30x15mm (w/o antennas)
- Signal Bandwidth:20MHz/10MHz
- Power Consumption:< 4W
- HDMI 1:Micro HDMI, for video input (preferred)
- HDMI 2:Micro HDMI, for video input
- Power:Recommended supply voltage ~7V, minimum 6V, maximum,12V and avoid sharing BEC with servos
- Micro USB:For debug or upgrade, support OTG
- Pair/Reset:For pairing and reset
- LED 1, 2:To indicate pairing status and transmission status
- UART:3.3V / 5V UART
- S.bus:Two 3.3V RC output
- ANT 1, 2:MMCX, for signal transmission and communication

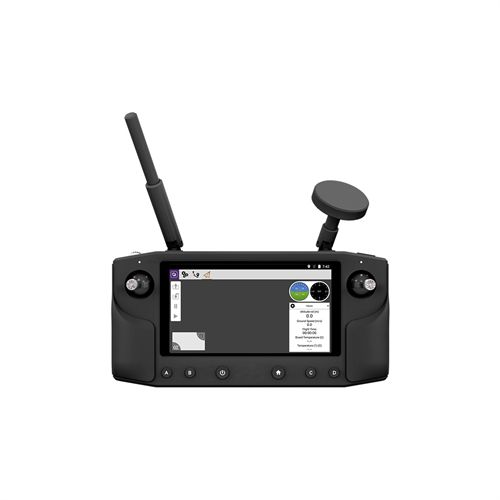

Controller
- Housing:Plastic
- Weight:516g (w. antennas)
- Dimension:217x106.5x31mm (w/o antennas, joysticks )
- Screen:5.46 inch, 1080P, 16 million colors, capacitive touch screen
- Audio:1 x built-in speaker, 2 x built-in microphone
- Remote control:2 x joystick, 1 x wheel, 6 x button (w. blacklight), 1 x upper right button
- Communication:WIFI/GPS 2.4GHz on the controller side
- LED:2 x tricolor LED (left, right)
- Interface:1 x MicroUSB, 1 x Micro SD card slot (extendable to max. 64GB)
- Antenna:1 x detachable directional (5dBi), 1 x detachable omni-directional (2dBi), built-in WIFI antenna, built-in GPS antenna,
external GPS antenna interface
- Power:4950mAh built-in Lipo Battery
- Charging:Support micro USB 5V 2A charging
- Power consumption:< 4W average (With transmission on, medium screen brightness, WIFI off, GPS off)

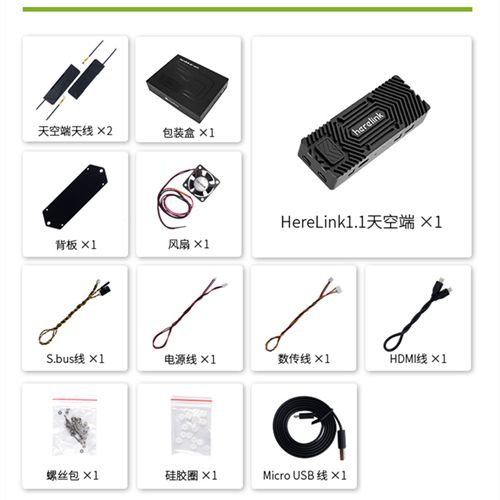

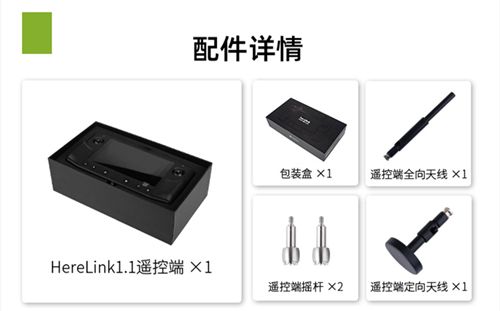

Item Packing

Accessories
HereLink Airunit *1
HereLink Controller *1
Omnidirectional antenna *1
Directional antenna *1
Airunit antenna *2
Joy-stick *2
HDMI cable *1
Power cable *1
Telemetry cable *1
S.bus cable *1
USB cable *1
Back board *1
M1.6x16mm(Fan screw)*5
M1.6(Fan Nut)*5
Washer(Fan washer)*5
O-ring(Fan O-ring)*20
M1.6x3mm(Airunit case screw)*5
M3x10mm(Back board mounting screw)*3
M3 Nut(Back board mounting nut)*3
Fan*1(available in Herelink1.1)

Detailed Images

Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
Hot Hex Herelink V1.1 5.5in Screen 2.4ghz 20km Long Range Hd Digital Video Telemetry Transmission System 720p 1080p 30/60fps
FAQ

Q1: Are you a factory or a trading company? What is the minimum order quantity?
Yes, we are trading company,have authorized agents for multiple brands direct salesand have some inventory items. You can order 1 piece for testing.

Q2: ls it possible to get a sample?
We offer sample when you pay sample fee.

Q3: How much for the shipping cost?
According to your quantity and country. We are check the freight for you.
and choosebest shipping way.

Q4: How long time can iget my package?
Usaually, the ready time is 3-5 days, the shipping time is 3-7 days

Q5: Can you provide OEM&ODM services ?
Of course, including software, packaging, product logos, etc. For more details, pleaseconsult customer service,

Q6: How do you ensure the quality of products?
Our products comply with the 1S09001 quality system and CE/FCC/ROHS standardsAll of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.

Q7:How do you arrange the transportation?
lf the sample order is recommended to be shipped by express delivery (7-10 days) orair freight (10-15 days), and if mass production is recommended, sea freight is morefavorable.Please consult customer service for more details!

Any other question, please feel free to contact us. Thanks
