Specifications
For Vehicle Type :
Helicopters
MOQ :
2 pieces
type :
/
Material :
Composite
Tool Supplies :
Assembled class
Place of Origin :
China, Guangdong China
private mold :
Yes
Brand Name :
Walksnail uuustore
Remote Control Peripherals/Devices :
Remote Controller
compatible brand :
/
Price :
$9.60-10.10 / piece
Upgrade Parts/Accessories :
Adapter
Four-wheel Drive Attributes :
Assemblage
RC Parts Accs :
Antennas
Description
Product Features
compatible brand/
RC Parts & AccsAntennas
Material/, Composite Material
place of originGuangdong, China
type/
Remote Control Peripherals/DevicesRemote Controller
brand nameWalksnail, uuustore
For Vehicle TypeHelicopters
Upgrade Parts/AccessoriesAdapter
private moldYes
Tool SuppliesAssembled class
Four-wheel Drive AttributesAssemblage
Walksnail Ws-m181 Gps Gnss Built-in Qmc5883 Ceramic Antenna for Rc Airplane Long Range Model
Specification
nameWalksnail WS-M181GPS
Chip:M10 (ten generation chip)
Frequency:GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
Power:5V
Size: 18mm*18mm*4.6mm
Antenna:ceramic antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels:72 search channels
Compass:QMC5883
Baud rate:115200dps
Output protocol:NMEA UBX (dual protocol)
Output frequency:1Hz-10Hz, Default 10Hz
Speed accuracy:0.05m/s
Horizontal positioning accuracy:2D ACC1.5m(open air)
Receiving sensitivity:

Trace-162dBm

Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40°C- 85°C
Storage temperature:-40°C- 105°C

Bullet Point

  • With small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.

Walksnail Ws-M181 Gps Gnss Built-in Qmc5883 Ceramic Antenna for Rc Airplane Long Range Model

  • Featuring the ubx M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.

Walksnail Ws-M181 Gps Gnss Built-in Qmc5883 Ceramic Antenna for Rc Airplane Long Range Model

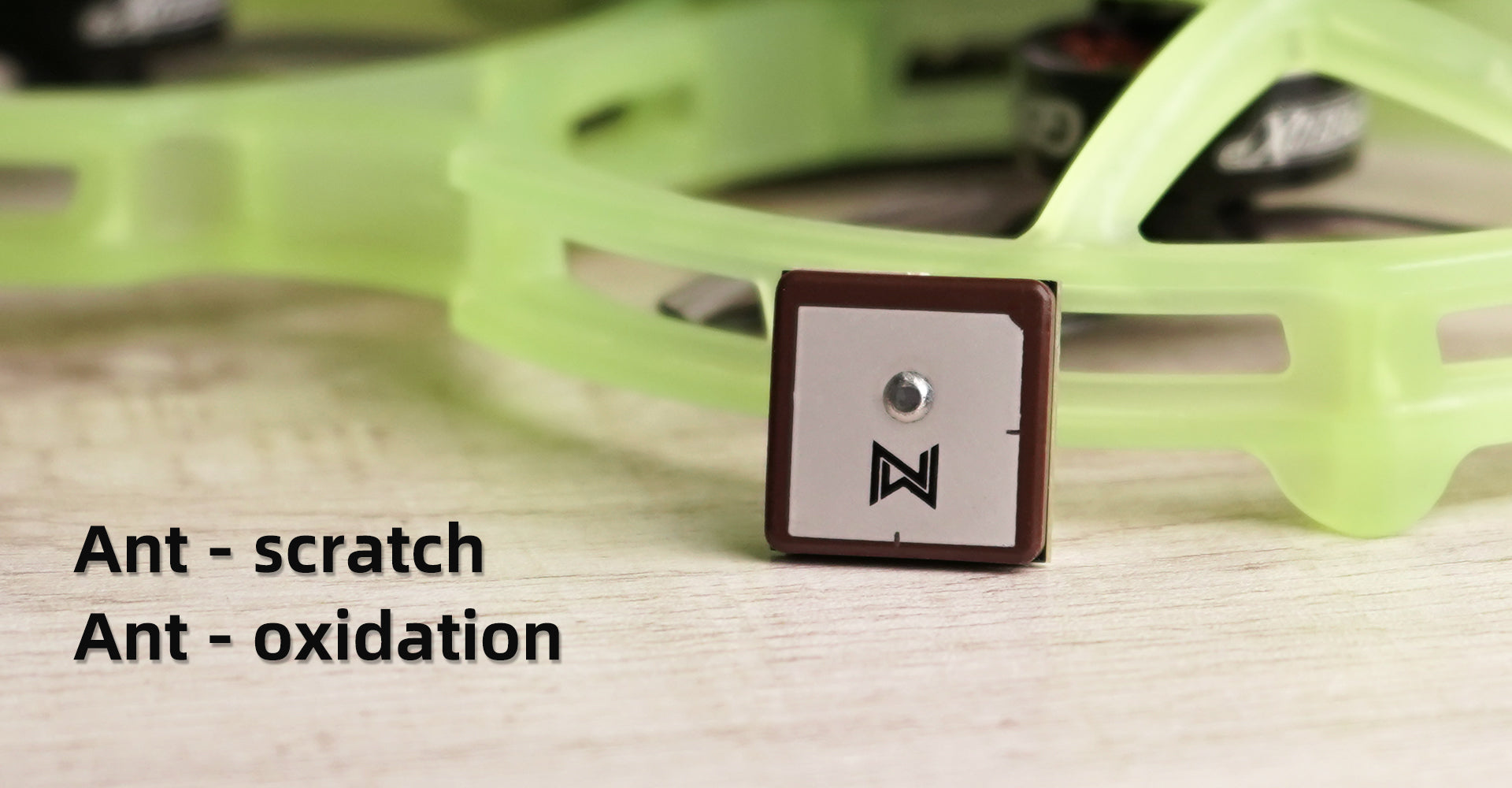

  • The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.

Walksnail Ws-M181 Gps Gnss Built-in Qmc5883 Ceramic Antenna for Rc Airplane Long Range Model

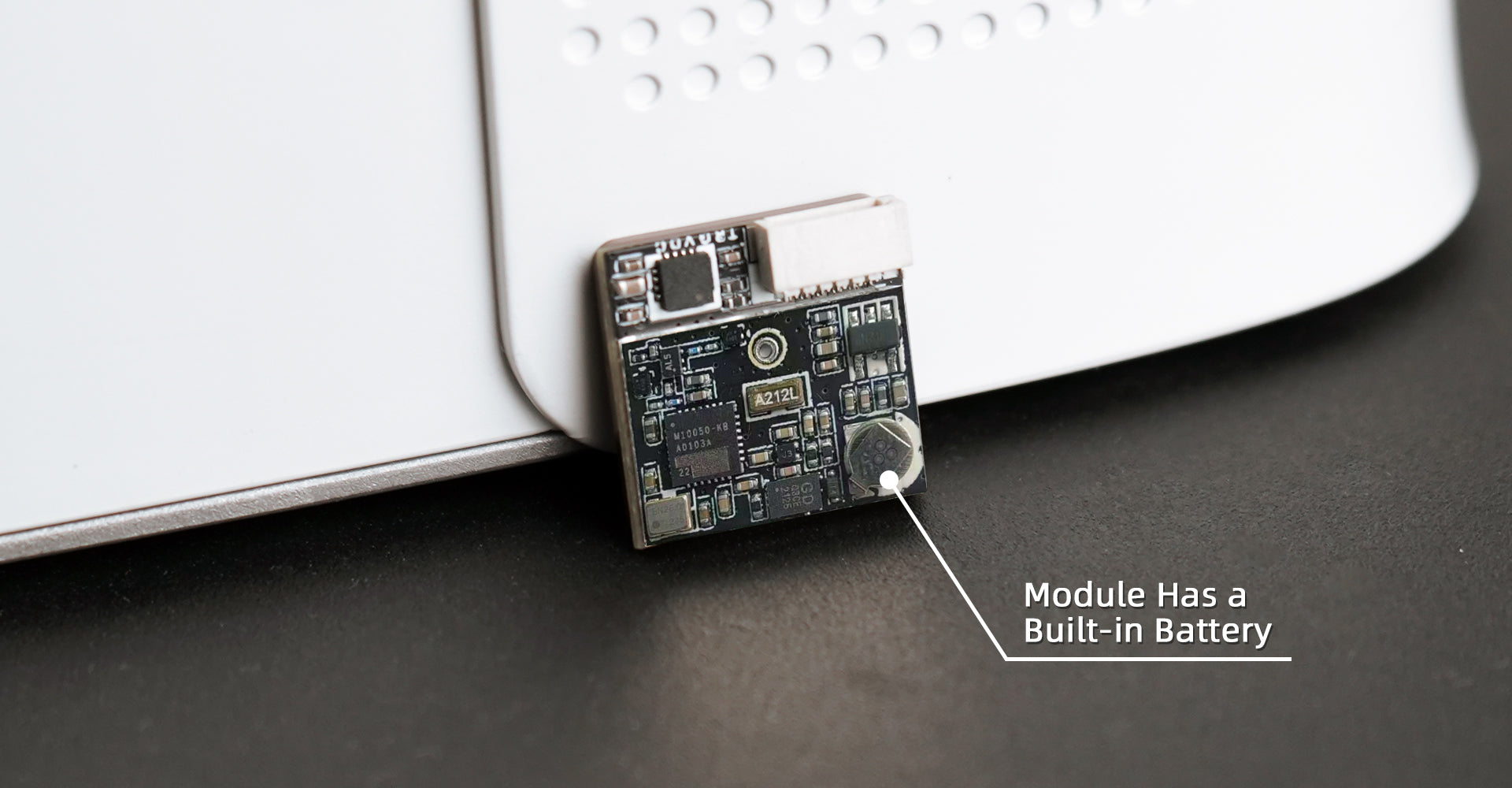

  • The built-in battery can realize hot start and realize positioning quickly.

Walksnail Ws-M181 Gps Gnss Built-in Qmc5883 Ceramic Antenna for Rc Airplane Long Range Model

  • It offers six positioning modes, providing more flexible combinations (default GPS GLONASS BDS multi-mode positioning).The measured maximum number of search stars can cover 32pcs.

Walksnail Ws-M181 Gps Gnss Built-in Qmc5883 Ceramic Antenna for Rc Airplane Long Range ModelNote:
Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware 4.29 and above, and the firmware below 4.29 uses the NMEA protocol.
