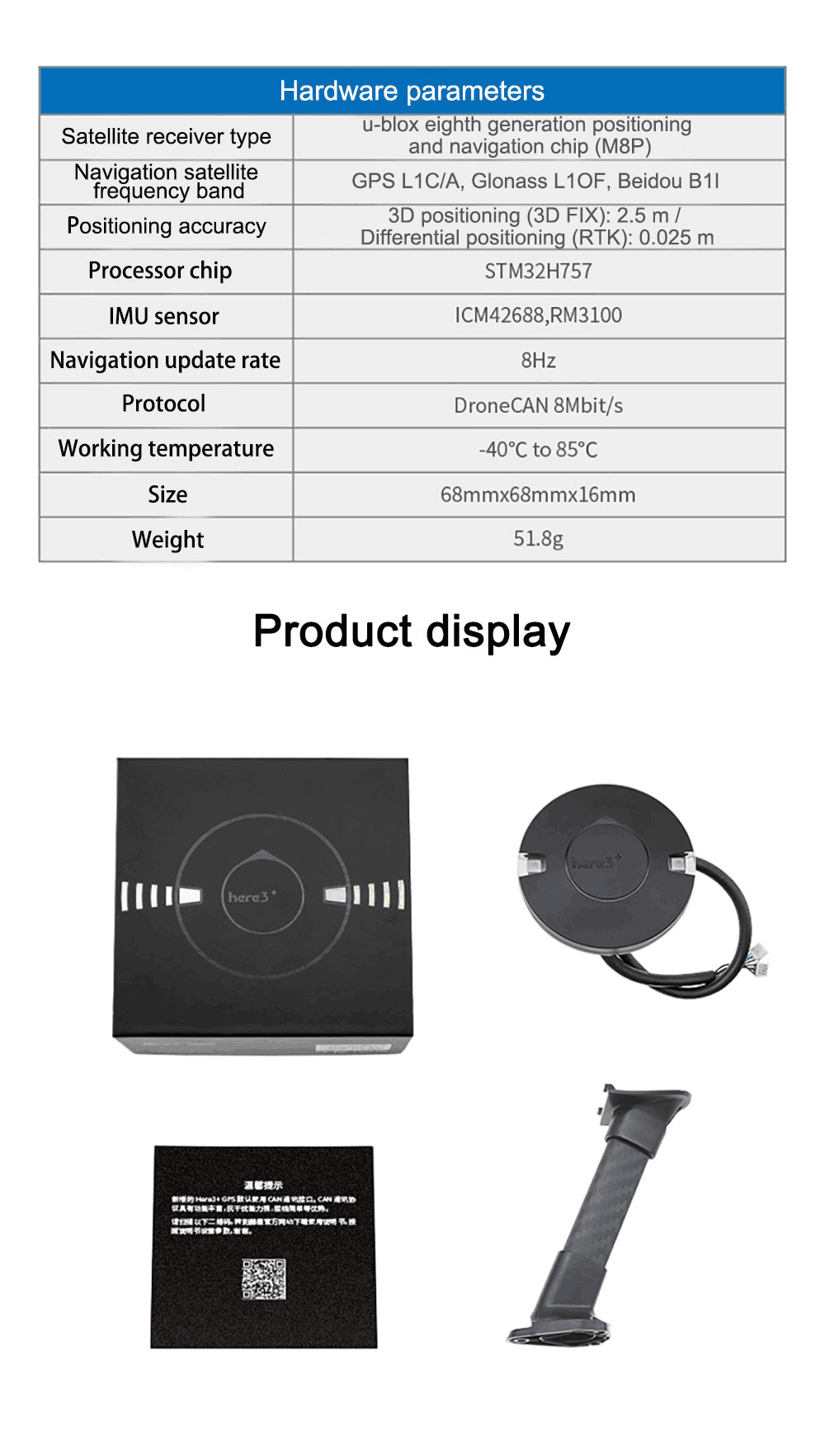

Specifications
Weight :
51.8g
Operating temperature :
-40c to 85c
Material :
Metal, Plastic
Processor :
STM32H757
Navigation refresh rate :
8 Hz
MOQ :
1 piece
compatible brand :
Autel
Interface protocol :
DroneCAN FD 8Mbit/s
Brand Name :
HEX
Price :
$201 / piece
Place of Origin :
China, Guangdong China
private mold :
No
Size :
68mm*68mm*16mm
Description
Product Features
Navigation refresh rate8 Hz
Operating temperature-40c to 85c
ProcessorSTM32H757
brand nameHEX
Interface protocolDroneCAN FD 8Mbit/s
Size68mm*68mm*16mm
private moldNo
MaterialPlastic, Metal, chip
place of originGuangdong, China
Weight51.8g
Hot Sales HEX Here3+ GPS UAV High-precision Differential GPS Navigation Module Pixhawk Plant RTK DroneCAN 8Mbit ICM42688 RM3100
Features

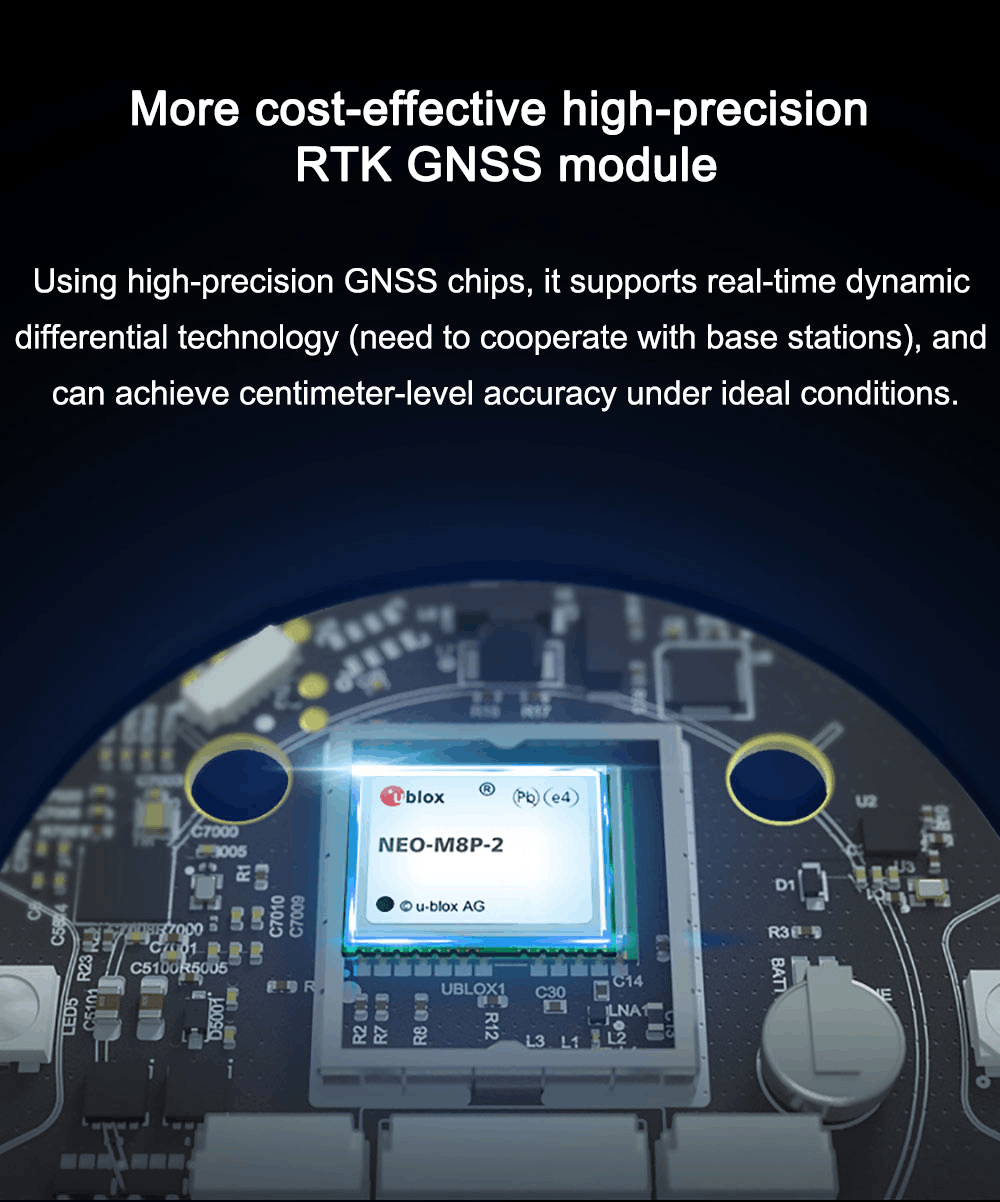

The Here 3/3 GPS is a cost-effective navigation unit with a high precision GNSS chip and real-time dynamic differential

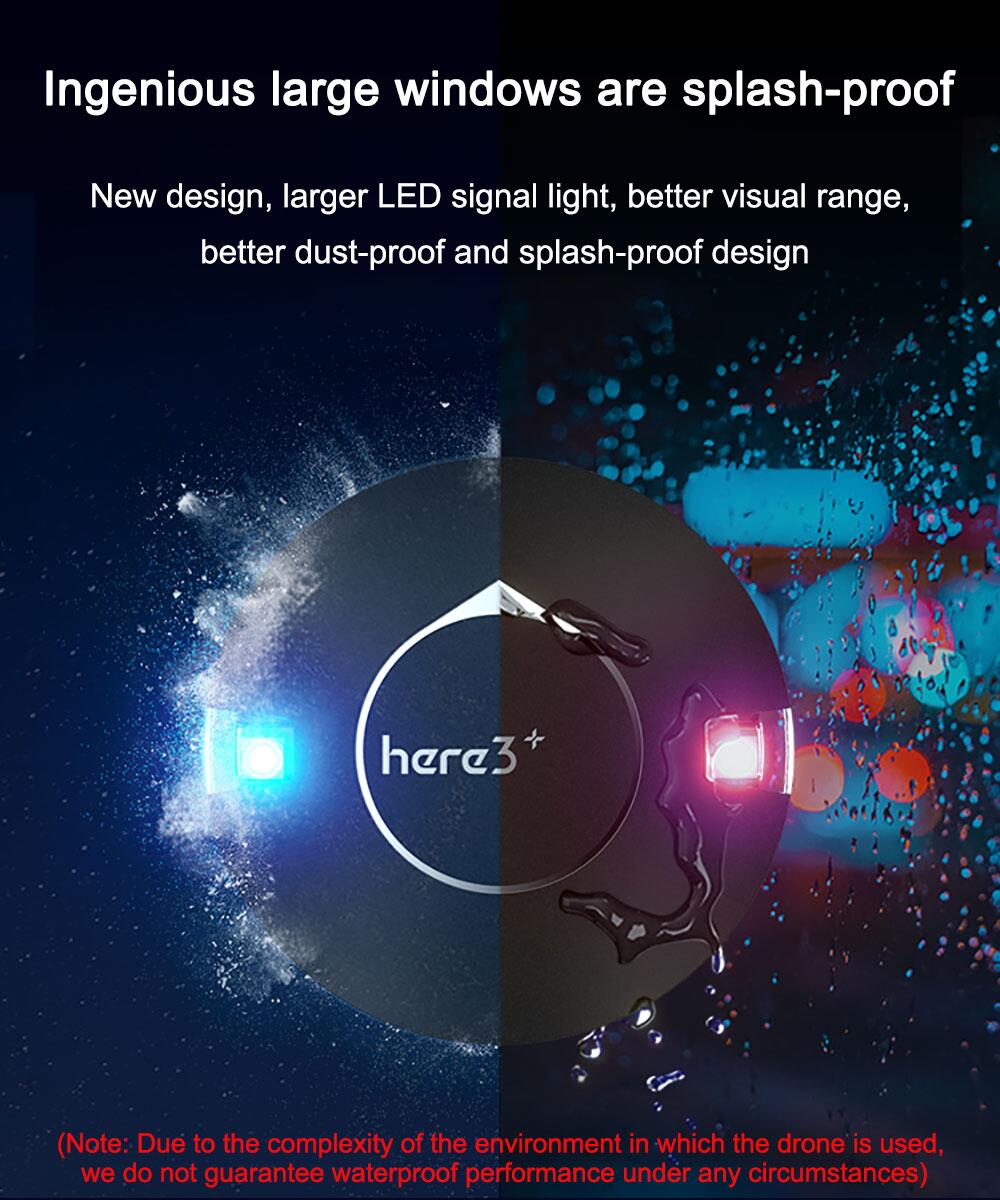

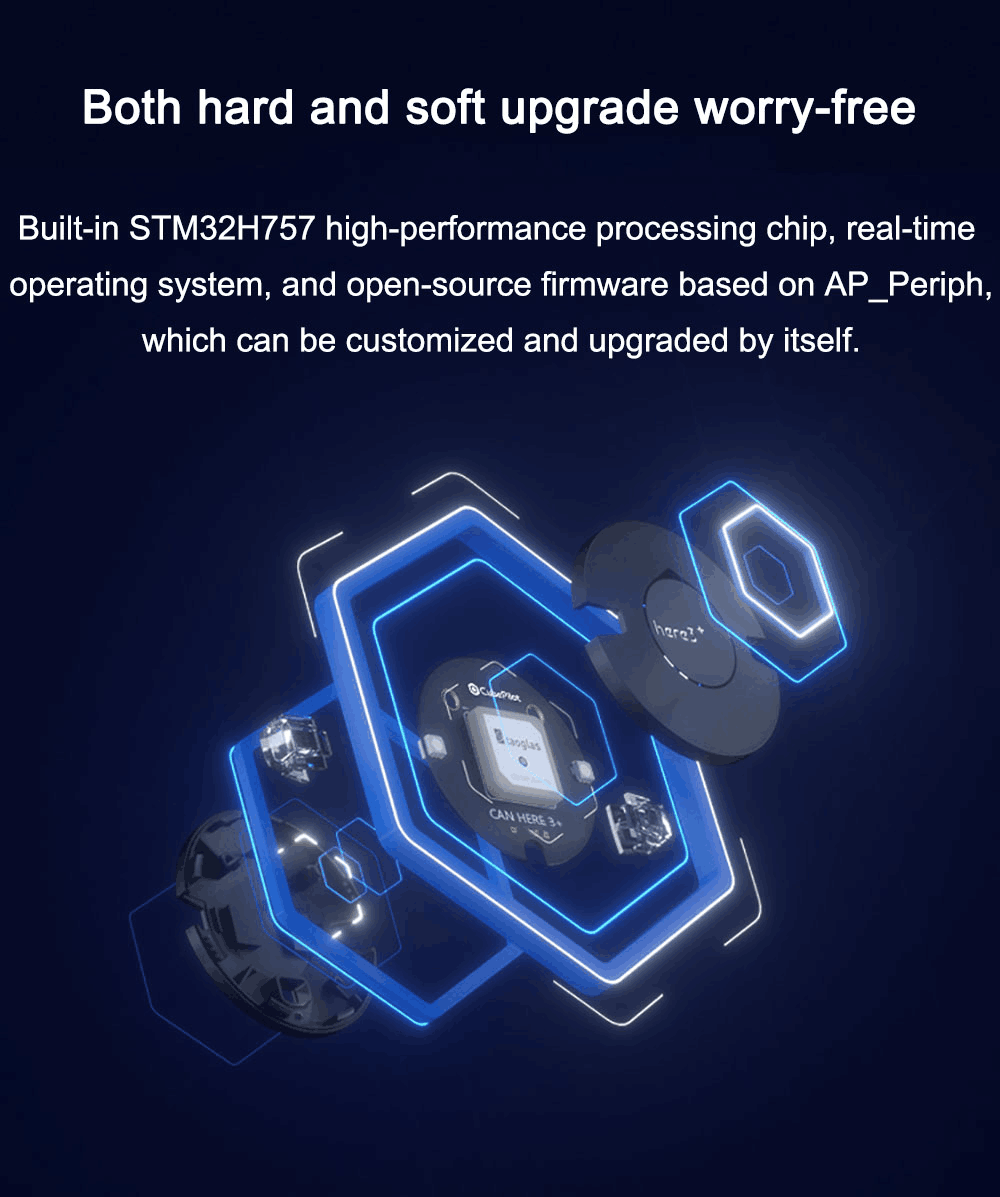

technology (with base station required) to achieve centimeter-level accuracy under ideal conditions. The new design has a wider range of LED lights and better dust and splash protection. (Note: Due to the complexity of the drone environment, we do not guarantee that it will be waterproof in all cases.) And the use of DRONECAN standard communication protocol has high data transmission, strong expansion, strong anti-interference, high real-time performance. Her3 with DroneCAN FD can reach bus speed of 8Mbit. The Here3 uses the STM32F302 processor, while the Here3 is upgraded to a dual-core STM32H757 processor with a speed of 400MHz, 2MByte Flash and 1MByte RAM. Firmware updates are supported and available directly from the Mission Planner ground station. Built-in a complete set of navigation units (electronic compass, gyroscope, accelerometer) to meet more navigation needs.
Product Description
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Hot Sales Hex Here3+ Gps Uav High-Precision Differential Navigation Module Pixhawk Plant Rtk Dronecan 8mbit Icm42688 Rm3100
Note:Please note the type what you want:

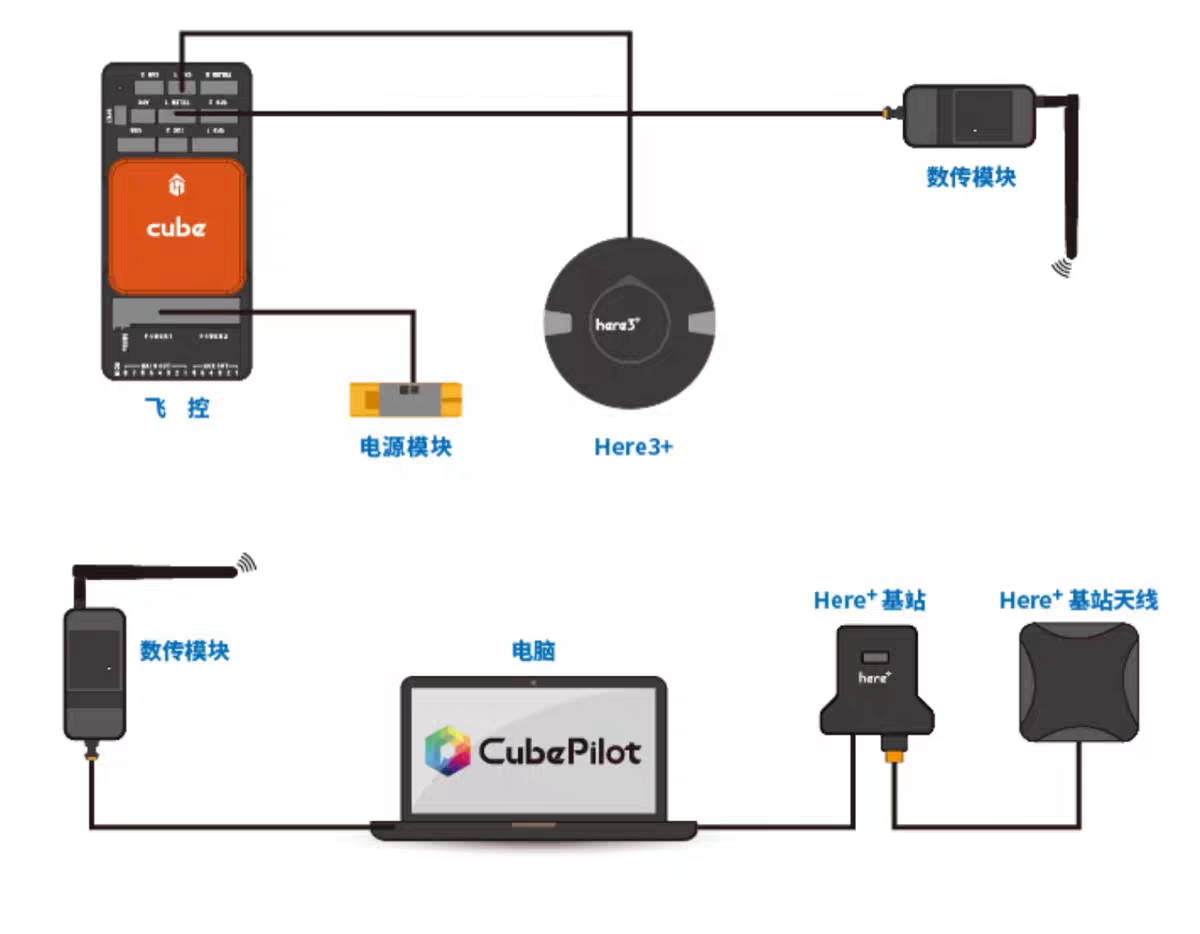

Bundle 1: Here3
Bundle 2: RTK Base
Bundle 3: Here3 With iStand RTK Base
