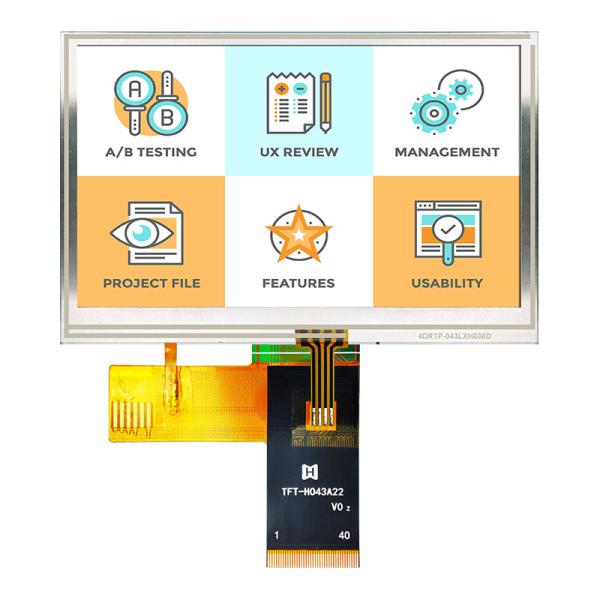

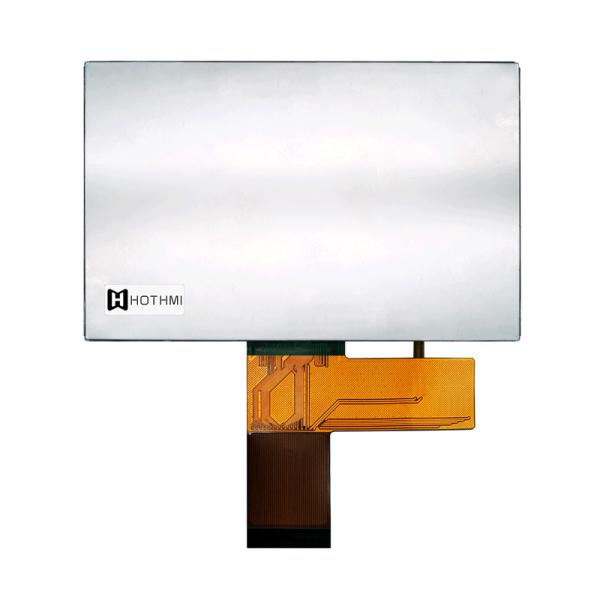

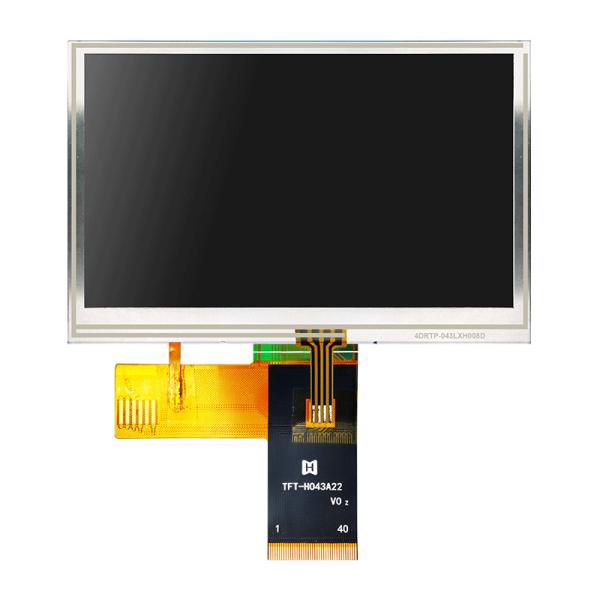

4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
4.3 inch Resistive Touch TFT LCD Display With QSPI Interface
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A22WQIST8R40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Format: :
480 x 272
Display Type: :
Sunlight Readable LCD
Display Mode: :
Transmissive
Outline L x W x H: :
105.46x67.11x4.60mm
Active Area L x W: :
95.04x53.86mm
Luminance: :
850cd/m2
Interface: :
SPI+MCU
Controller Type: :
T.B.D
Connection Type: :
40 pin
Operating Temperature: :
-30 ~ 80°C
Description

4.3 Inch 480x272 Sunlight Readable Resistive TFT Display SPI-MCU/TFT-H043A22WQIST8R40

TFT-H043A22WQIST8R40 | 4.3 inch Sunlight Readable LCD | 480x272 Pixels | Resistive Touch Screen

project Parameter Description unit
TFT series Standard TFT
Diagonal size 4.3” Inch
Resolution 480 × RGB × 272 (TFT) dots
Dimensions 105.46x67.11x4.3 mm
Effective area (AA) 95.04x53.86 mm
LCD type TFT, white, transmissive
Display perspective IPS(U80/D80/L80/R80)
Aspect ratio 1.1:2
Backlight type LED, white
TFT driver IC TBD
Touch panel Resistive touch
Surface Anti-glare/glossy
Brightness 1000 cd/㎡
Operating temperature -30~+80 °C
Storage temperature -30~+85 °C

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface4.3 inch Resistive Touch TFT LCD Display With QSPI Interface

TFT Custom Solutions

4.3 inch Resistive Touch TFT LCD Display With QSPI Interface

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

4.3 inch Resistive Touch TFT LCD Display With QSPI Interface

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

4.3 inch Resistive Touch TFT LCD Display With QSPI Interface

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

4.3 inch Resistive Touch TFT LCD Display With QSPI Interface

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
