4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A22WQISTKN40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Format: :
480 x 272 Pixels
Display Type: :
Sunlight Readable
Display Mode: :
Transmissive
Outline L x W x H: :
105.46x67.11x3.00mm
Active Area L x W: :
95.04x53.86mm
Luminance: :
1000cd/m2
Interface: :
SPI+MCU
Controller Type: :
T.B.D
Connection Type: :
40 pin FFC
Operating Temperature: :
-30°C ~ 80°C
Description

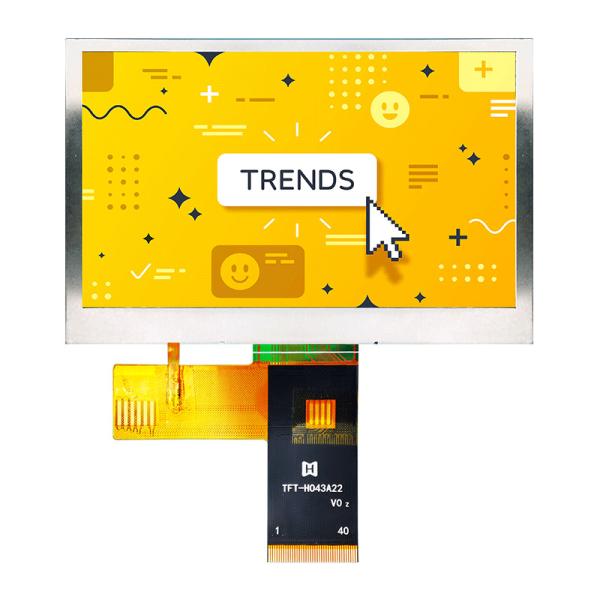

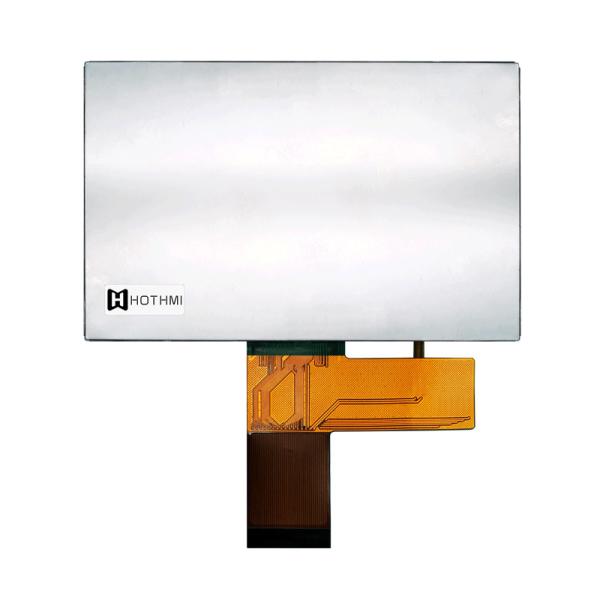

4.3 Inch 480x272 Sunlight Readable SPI-MCU TFT Display Module/TFT-H043A22WQISTKN40

TFT-H043A22WQISTKN40 | 4.3 inch sunlight readable LCD | 480x272 pixels | SPI+MCU interface | FFC connection | optional touch screen


This 480x272 resolution LCD TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. The sunlight-readable display has a 3/4-wire SPI interface and provides a complete best view. This 3.3V LCD has a built-in T.B.D controller, FFC connection, RoHS Compliant, and optional touch screen.

parameter Parameter Description unit
TFT LCD Standard TFT
Diagonal inches 4.3” Inch
resolution 480 × RGB × 272 (TFT) dots

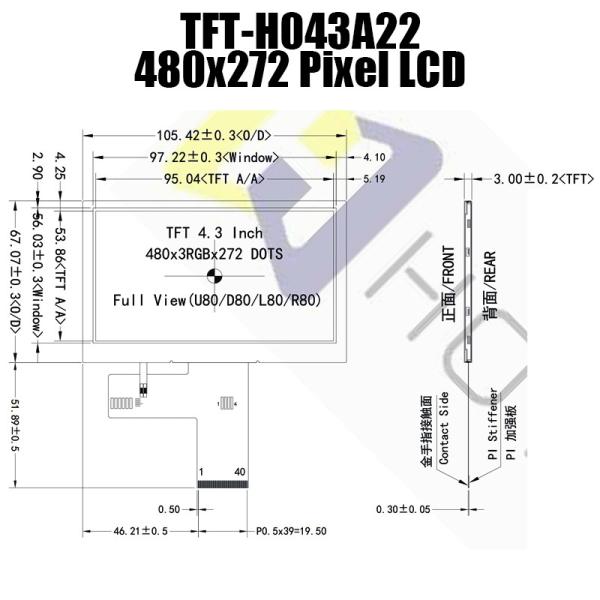

Dimensions 105.46x67.11x3.0 mm
Size (AA) area 95.04x53.86 mm
LCD specifications TFT, white, transmissive
Display perspective IPS(U80/D80/L80/R80)
aspect ratio 1.1:2
Backlight specifications LED, white
TFT driver chip TBD
Touch glass type -
surface Anti-glare/glossy
Display brightness 1000 cd/㎡
Operating temperature -30~+80 °C
Storage temperature -30~+85 °C

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable

TFT Custom Solutions

4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

4.3-inch 480x272 TFT LCD Display | QSPI Interface Sunlight Readable

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
