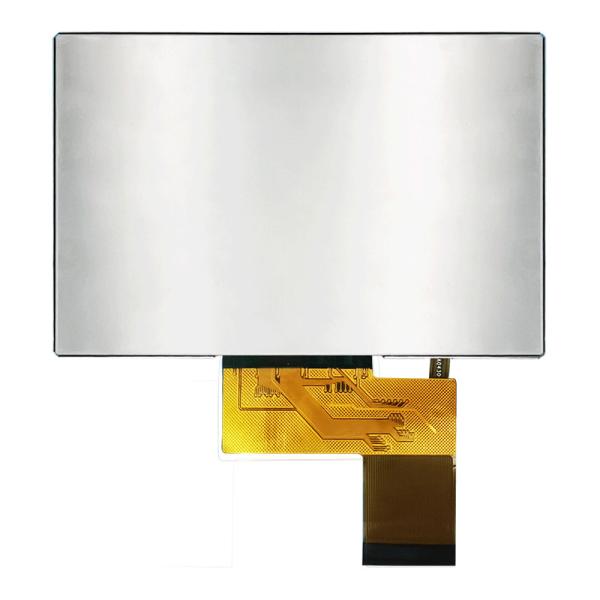

5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H050A1SVIST4C40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Landscape
Backlight brightness :
450cd/m2
Driver IC Model :
ST7262,GT911(CTP)
Interface method :
RGB
Product Application :
Printers, Copiers, Smart Home, Vehicle Instruments
Special Instructions :
Ultra Wide Temperature Operation
Description

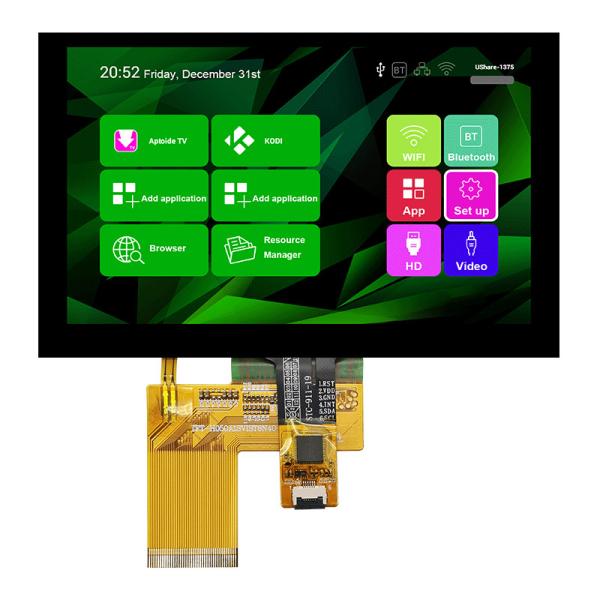

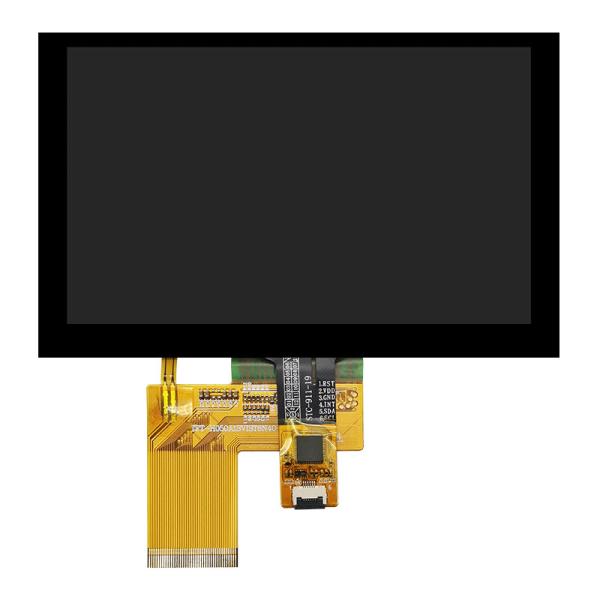

5 Inch CTP Touch Screen TFT LCD Module IC GT911/800x480 Dots/TFT-H050A1SVIST4C40

Product parameters
Display Content - 800x480

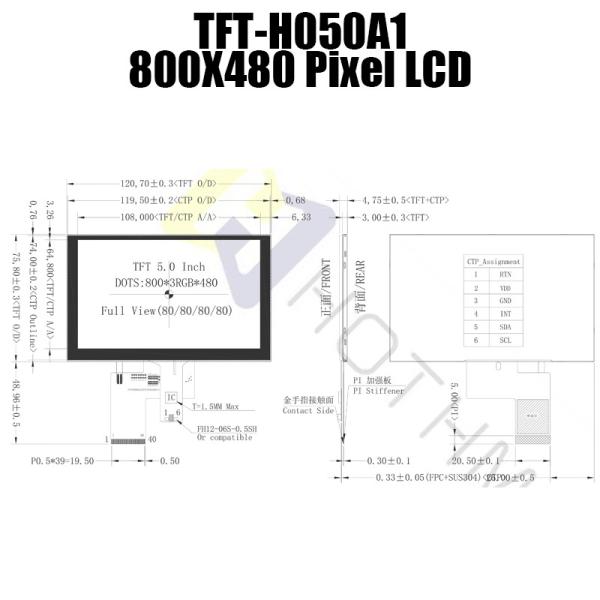

Dimensions (mm) - 120.7x75.8x3.0
Viewport Window Size - 5.0 inch
Display Size - 5.0 inch
Effective size (mm) - 108.0x64.8
Perspective - Full Perspective
Connection method PIN number - 40PIN0.5 connected
Working temperature - (-30~80℃)
Supply Voltage - 3.3V

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H050A1SVIST4C40
Diagonal size 5.0” Inch
Resolution 800x480 Dot
Dimensions 120.7x75.8x4.75 mm
Active area (AA) 108.0x64.8 mm
LCD type TFT LCD Display mm
Display viewing angle Full View(U80/D80/R80/L80)
Aspect ratio 3:2
Backlight type LED white
TFT driver IC ST7262(TFT),GT911(CTP)
Brightness 450 cd/m2
Operating temperature -30~80℃ ℃
Storage temperature -30~85℃

℃


Describe
HOTLCD display 5 inch standard high resolution TFT model. The size is between our standard 4.3" and standard 5.7" TFT modules, but the H050A1 has better resolution. The resolution of the H050A1 is 800x480. The H050A1 monitor is ideal for customers designing new projects that require higher resolution or a competitive price. The 5-inch capacitive touch screen TFT LCD H050A1SVIST4C40 has an external dimension of 120.7 x 75.8 mm and an AA dimension of 108 x 64.8 mm. The H050A1SVIST4C40 module can operate from –30°C to +80°C; its storage temperature range is -30°C to +80°C. Product application - printers, copiers, smart home, vehicle instrumentation.

Search keyword: tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display, 5 inch tft display, tft display 5, tft display 5", 5.0 tft lcd,5"tft

5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP5 Inch TFT LCD Display With PCAP
5 Inch TFT LCD Display With PCAP

TFT-H050A1SVIST4C40.pdf
