2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H020A3QVIFT2N15
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Dimensions (mm) :
35.50x51.00x2.10
Viewshed Window Size :
2.0"
Effective Size (mm) :
30.60x40.80
Product Application :
Digital Camera, Mobile Phone
Operating temperature :
-30~85℃
Description

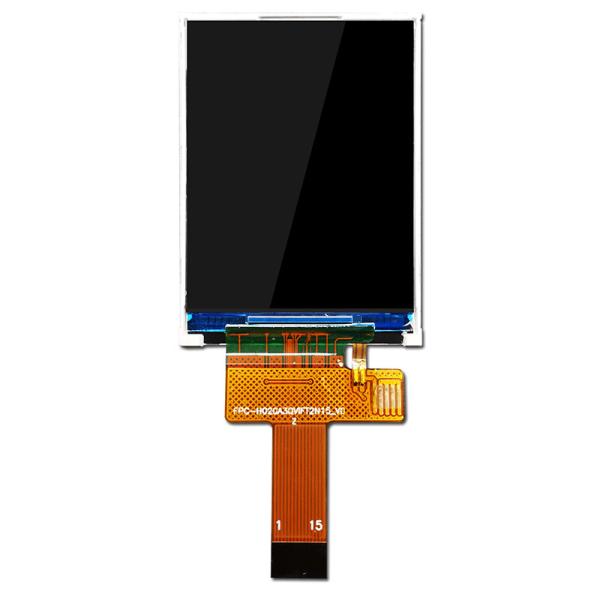

2 Inch IPS TFT LCD Display Module/240x320 Pixels/TFT-H020A3QVIFT2N15

Product parameters

Product Type - TFT LCD
Display Content - 240x320
Display Size - 2.0"
Perspective - Full View
Backlight type or brightness - 250cd/m2
Connection method PIN number - FPC-15PIN
Interface method - MIPI
Supply Voltage - 3.3V
Driver chip model - JD9852

General Feature:

Item Standard Value Unit
Display Size 2.0” --
Number of Pixels 240(H)x3(RGB)x320(V) --
Active Area 30.60(H)x40.80(V) mm
Outline Dimension 35.50(H)×49.90(V)×2.10(D) mm
Viewing Direction Full O'clock -
Interface MIPI-1L (Video mode) -
Driver IC JD9852 -
Display Colors 262K -
Driver Condition VCI=2.8V,IOVCC=1.8V V
Backlight White LED -
Touch Panel Without Touch Panel -
CTP Driver IC - - -
CTP Driver Condition VDD=3.3V
Operation Temperature -30~85 ℃
Storage Temperature -30~85 ℃

2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature

2.0 inch 240x320 pixel IPS color TFT LCD display MIPI wide temperature

TFT-H020A3QVIFT2N15.pdf
