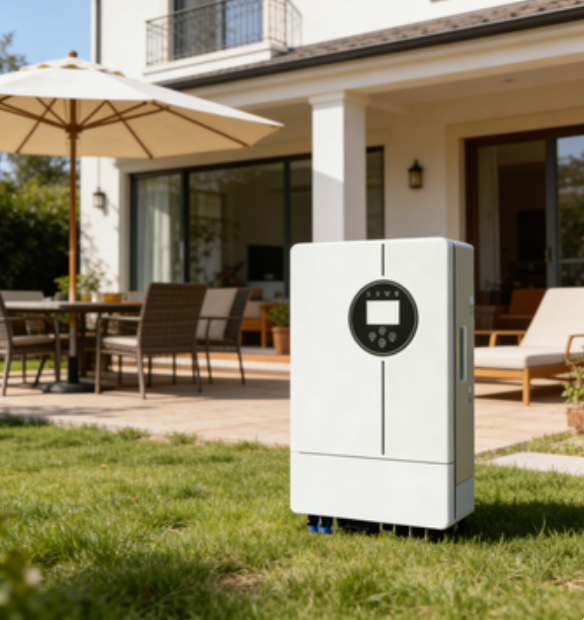

CE 6kW Hybrid Solar Inverter Single Phase Household Solar Inverter
CE 6kW Hybrid Solar Inverter Single Phase Household Solar Inverter
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$900-1100
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Peak Power(off-grid)(W) :
2 times of rated power for 10s
DC Injection Current :
<0.5% In
Description
6kW Single Phase Hybrid Inverter with IP65 Protection
This hybrid inverter series is engineered to simultaneously support photovoltaic (PV) and energy storage systems. It combines grid-tied and off-grid operation with bidirectional power control and intelligent energy management for fully autonomous power dispatch. Featuring a modern design that integrates seamlessly into smart home environments, it provides an ideal power solution for residential applications.
Compatible with a wide range of battery types and optimized for use with our dedicated battery series, this inverter supports multiple charge and discharge power settings to ensure safe, stable, and reliable residential power supply.
Key Features
Safety Features
  • Intelligent AI-DC Arc fault protection
  • Supports 2 times overload for short durations
  • IP65 protection rating
Flexible Operation
  • Compatible with diesel generators
  • AC coupling for retrofitting existing solar systems
  • Maximum 10 units parallel operation for on/off-grid use
  • Supports multiple battery parallel connections
Smart Management
  • 4ms backup power switching
  • Colored LCD touchscreen for intuitive setup and real-time monitoring
  • Supports programming of 6 time periods for battery charging/discharging
High Efficiency Performance
  • Supports 1.6 times DC overloading
  • 180A charge and discharge current
  • 97.6% maximum conversion efficiency and 95% maximum charging efficiency
CE 6kW Hybrid Solar Inverter Single Phase Household Solar Inverter
Technical Specifications
Model Numbers
CH-LVEH1P6K-EU-G1, CH-LVEH1P6K-BR-G1
Battery Input Data
Battery Type Lead-acid/Li-Ion
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 135
Max. Discharging Current (A) 135
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Input Power (W) 9600
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 120
MPPT Voltage Range (V) 120~425
Rated PV Input Voltage (V) 370
Max Operating PV Input Current (A) 20+20
Max. Input Short-Circuit Current (A) 23
No. of MPP Tracker/No. of Strings MPP Tracker 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W) 6000
Max. AC Input/Output Apparent Power (VA)* 6600
Rated AC Input/Output Current (A) 27.3/26.1
Max. AC Input/Output Current (A)* 30/28.7
Max. Continuous AC Passthrough (grid to load) (A) 54
Peak Power (off-grid) (W) 2 times of rated power for 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range (Hz) 50/45-55, 60/55-65
Grid Connection Form L+N+PE
Total Current Harmonic Distortion THDi <2% (of nominal power)
DC Injection Current <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99%
Equipment Protection
Integrated Protection DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection
Surge Protection Level TYPE II (DC), TYPE II (AC)
Interface
Communication Interface RS485/CAN
Monitor Mode WIFI
General Data
Operating Temperature Range (°C) -40 to +60
Permissible Ambient Humidity 0-100%
Permissible Altitude (m) 3000
Ingress Protection (IP) Rating IP65
Inverter Topology Non-Isolated
Over Voltage Category OVC II (DC), OVC III (AC)
Cabinet Size (WxHxD mm) 330*563*223
Weight (kg) 23.7
Type of Cooling Natural cooling
Warranty 5 Years/10 Years
Safety/EMC Standard IEC/EN 61000-6-1:2019, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, IEC 63027:2023
*It is only implemented under specific safety regulations and working conditions
The warranty period depends on the final installation site of the inverter. More information please refer to warranty policy.
