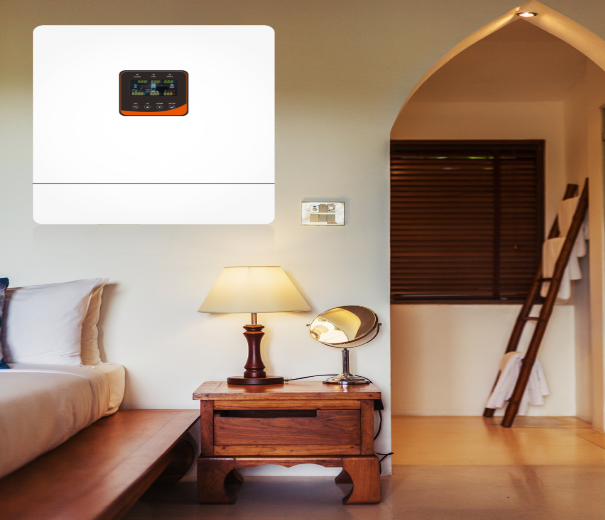

5500W Hybrid On Grid Inverter Battery Energy Storage Inverter CE
5500W Hybrid On Grid Inverter Battery Energy Storage Inverter CE
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$370-390
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Grid-connected / Off-grid :
All of them can
Model :
5.5kw
Description
5.5kW Hybrid Single-Phase Inverter
This hybrid energy storage inverter integrates photovoltaic energy storage, utility power energy storage, and AC sine wave output. Utilizing DSP control with advanced algorithms, it delivers high response speed, reliability, and industrial-grade performance. The system offers four charging modes and two output methods to accommodate diverse application requirements.
Product Highlights
  • Three Output Modes: Grid-tied power generation, grid-tied anti-backflow, and off-grid output
  • Four Charging Modes: Utility power priority, photovoltaic priority, hybrid charging, and photovoltaic-only
  • Emergency Functions: Battery-free output, standalone photovoltaic start-up, load carrying, and battery activation
  • Remote Monitoring: Real-time system data display and parameter control via upper computer and APP cloud
  • Parallel Operation: Up to 9 units for flexible single-phase and three-phase AC power output
  • Comprehensive Protection: Hardware and software protection with fault type display
  • Timed Operation: Scheduled AC charging and battery discharging across different time periods
5500W Hybrid On Grid Inverter Battery Energy Storage Inverter CE
Technical Specifications
Inverter Output
Rated Output Power (W) 5500
Rated Output Power (VA) 5500
Maximum Peak Power (W) 10000
Motor Capacity (HP) 4
Rated AC Output 230VAC (Adjustable 200/208/220/240VAC), 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter and Bypass Switching Time 10ms (typical)
Maximum Number of Parallel Units 9
Maximum Battery Inverter Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Battery Type Lithium / Lead-acid / User-defined
Rated Battery Voltage (VDC) 48
Battery Voltage Range (VDC) 40~60
Max MPPT Charge Current (A) 100
Max AC Charge Current (A) 60
Max Mixed Charge Current (A) 100
Charging Current Error (ADC) ±3
Charging Short Circuit Protection Fuse
PV Charging
Number of MPPT Trackers 1
Max. PV Array Power (W) 5500
Max. PV Input Current (A) 22
Max. Open Circuit Voltage (VDC) 500
MPPT Operating Range (VDC) 120~450
MPPT Tracking Efficiency 99.9%
Mains Input
Input Voltage Range (VAC) 90~280/170~280
Frequency Range (Hz) 50/60±3
Output Short-Circuit Protection Circuit Breaker
Bypass Overload Current (A) 40
Physical Specifications
Model CH--GST48-5500 VII
Dimensions (D×W×H) mm 130×350×455
Weight (kg) 12
Waterproof Rating IP20
Working Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed)
Communication
Embedded Interface RS485 / CAN / USB / Dry Contact
External Module WIFI/4G
Certifications
Safety CE (IEC62109-1)
EMC EN61000
