CE 3.5kW Hybrid Single Phase Inverter With Pure Sine Wave Output
CE 3.5kW Hybrid Single Phase Inverter With Pure Sine Wave Output
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$400-600
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Battery Type :
Lithium /lead-acid /user-defined
Rated Battery Voltage(VDC) :
48
Max MPPT charge current(A) :
60
Max mixed charge current(A) :
80
Charging short circuit protection :
Fuse
Max. PV Array Power (VDC) :
4000
Description
3.5kW Hybrid Single-Phase Inverter
Product Introduction
This hybrid energy storage inverter integrates photovoltaic energy storage, utility power storage, and AC sine wave output. Utilizing DSP control with advanced algorithms, it delivers high response speed, exceptional reliability, and meets rigorous industrial standards. The system offers four charging modes and two output methods to accommodate diverse application requirements.
Product Highlights
  • Three Output Modes: Grid-tied power generation, grid-tied anti-backflow, and off-grid output mode when grid-tied function is enabled
  • Four Charging Modes: Mains power priority, photovoltaic priority, mains-photovoltaic hybrid, and photovoltaic-only charging
  • Emergency Functions: Battery-free output, standalone photovoltaic start-up and load carrying, with battery activation capability
  • Advanced Communication: Real-time system monitoring and parameter control via upper computer and APP cloud interface
  • Parallel Operation: Supports up to 9 parallel units with flexible single-phase and three-phase AC power output configurations
  • Comprehensive Protection: Hardware and software protection systems with fault type display for simplified troubleshooting
  • Timed Charging/Discharging: Programmable AC power charging and battery discharge scheduling across different time periods

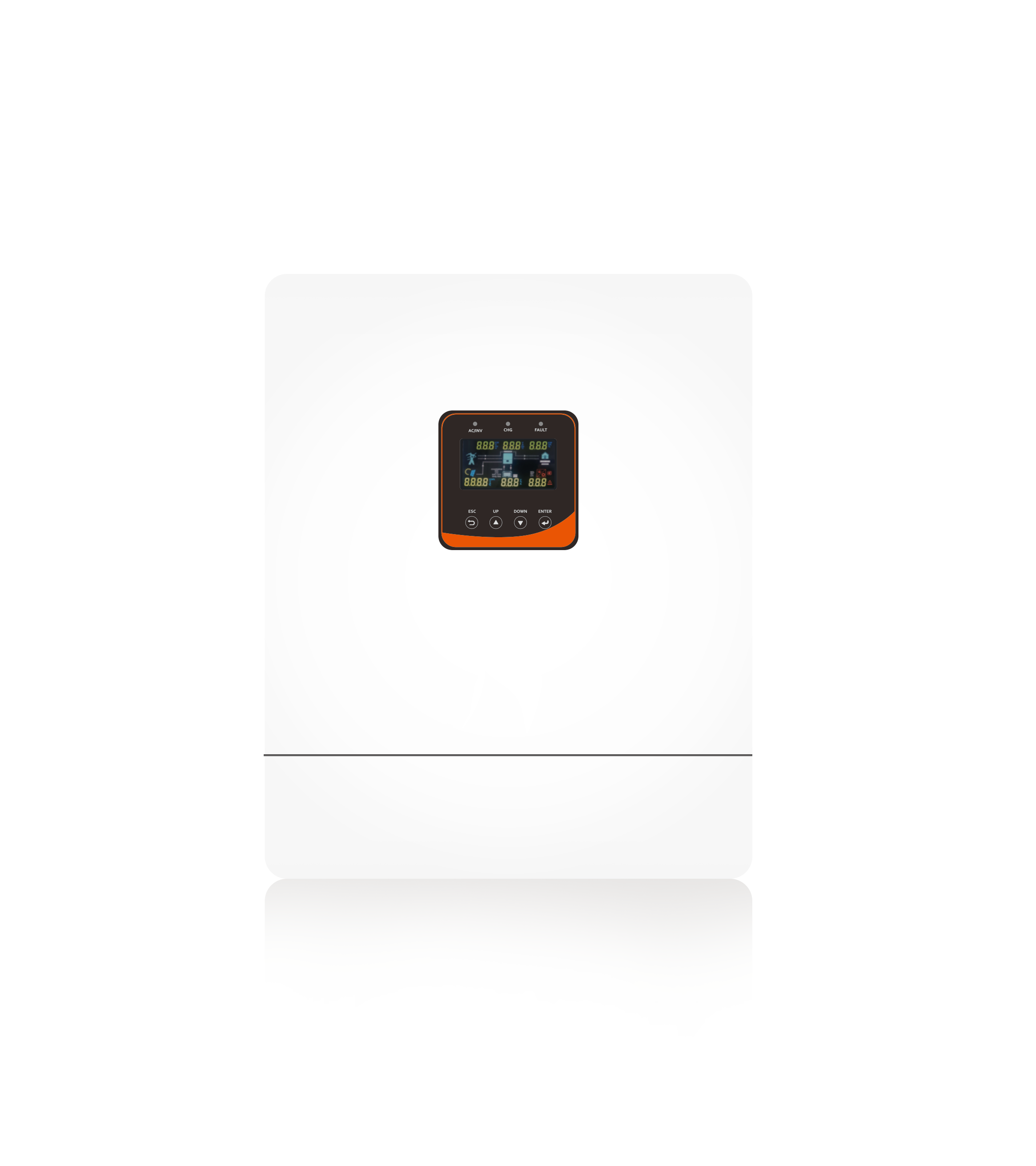

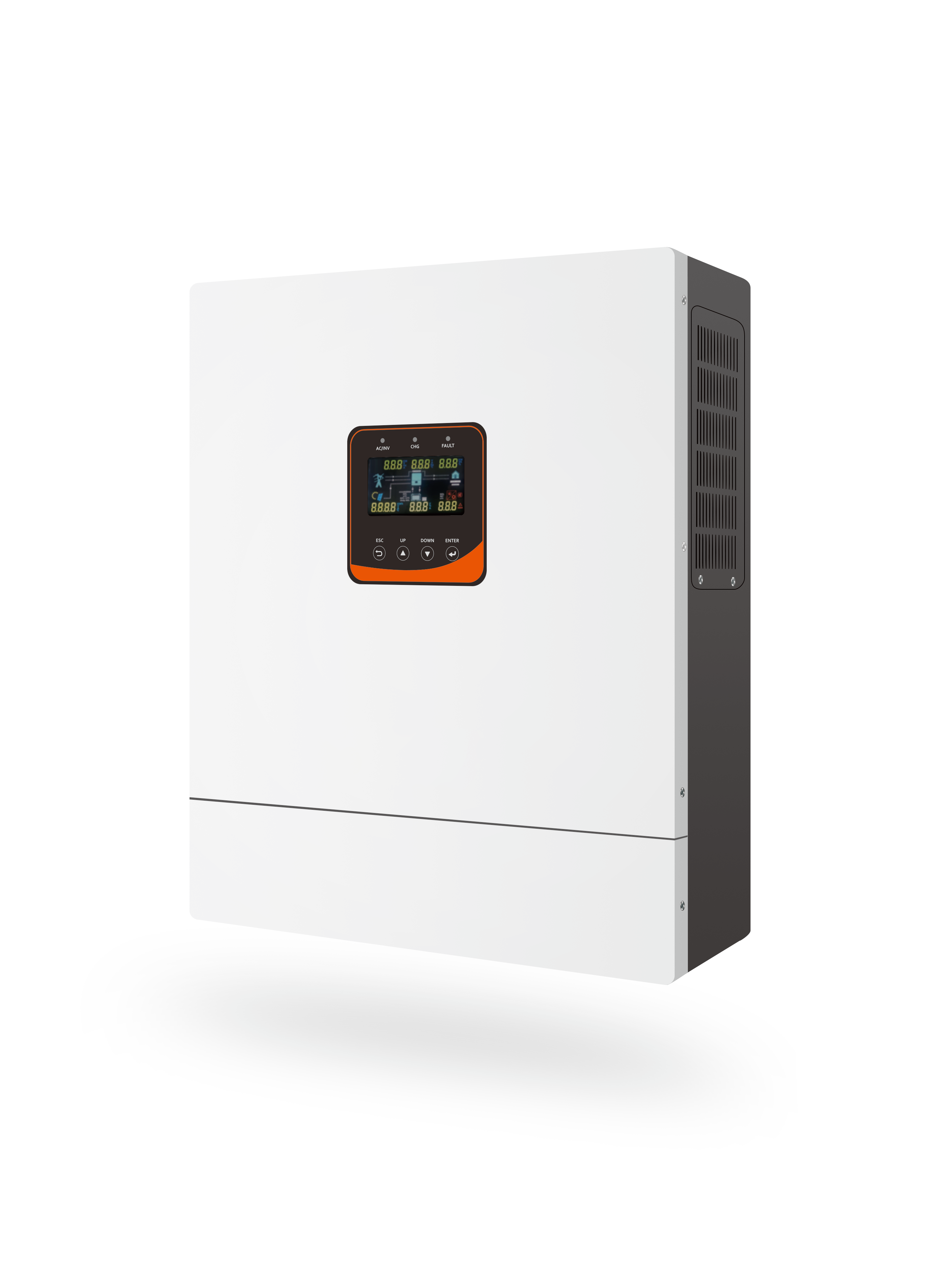

CE 3.5kW Hybrid Single Phase Inverter With Pure Sine Wave Output CE 3.5kW Hybrid Single Phase Inverter With Pure Sine Wave Output
Technical Specifications
Model CH--GST48-3500 VII
Inverter Output
Rated Output Power (W) 3500
Rated Output Power (VA) 3500
Maximum Peak Power (W) 6000
Motor Capacity (HP) 2
Rated AC Output 230VAC (Adjustable 200/208/220/240VAC), 50/60Hz
Output Voltage Waveform Pure Sine Wave
Inverter and Bypass Switching Time 10ms (typical)
Maximum Number of Parallel Units 9
Maximum Battery Inverter Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery
Battery Type Lithium / Lead-acid / User-defined
Rated Battery Voltage (VDC) 48
Battery Voltage Range (VDC) 40~60
Max MPPT Charge Current (A) 60
Max AC Charge Current (A) 60
Max Mixed Charge Current (A) 80
Charging Current Error (ADC) ±3
Charging Short Circuit Protection Fuse
PV Charging
Number of MPPT Trackers 1
Max. PV Array Power (W) 4000
Max. PV Input Current (A) 13
Max. Open Circuit Voltage (VDC) 500
MPPT Operating Range (VDC) 120~450
MPPT Tracking Efficiency 99.90%
AC Input
Input Voltage Range (VAC) 90~280 / 170~280
Frequency Range (Hz) 50/60±3
Output Short-Circuit Protection Circuit Breaker
Bypass Overload Current (A) 30
Specifications
Dimensions (D*W*H) mm 130*350*455
Weight (kg) 11
Waterproof Rating IP20
Working Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed)
Communication
Embedded Interface RS485 / CAN / USB / Dry Contact
External Module WIFI / 4G
Certifications
Safety CE (IEC62109-1)
EMC EN61000
